3 Functions of NB-Designer
3-40
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
It provides a parameter setting dialog box for the PLC to be replaced and other PLCs in the
navigation mode for the user to make replacement operation. Select a PLC and right-click it in the
Configuration and Setup Window to make the pull-down menu popup, and then click “Change PLC
Model”.

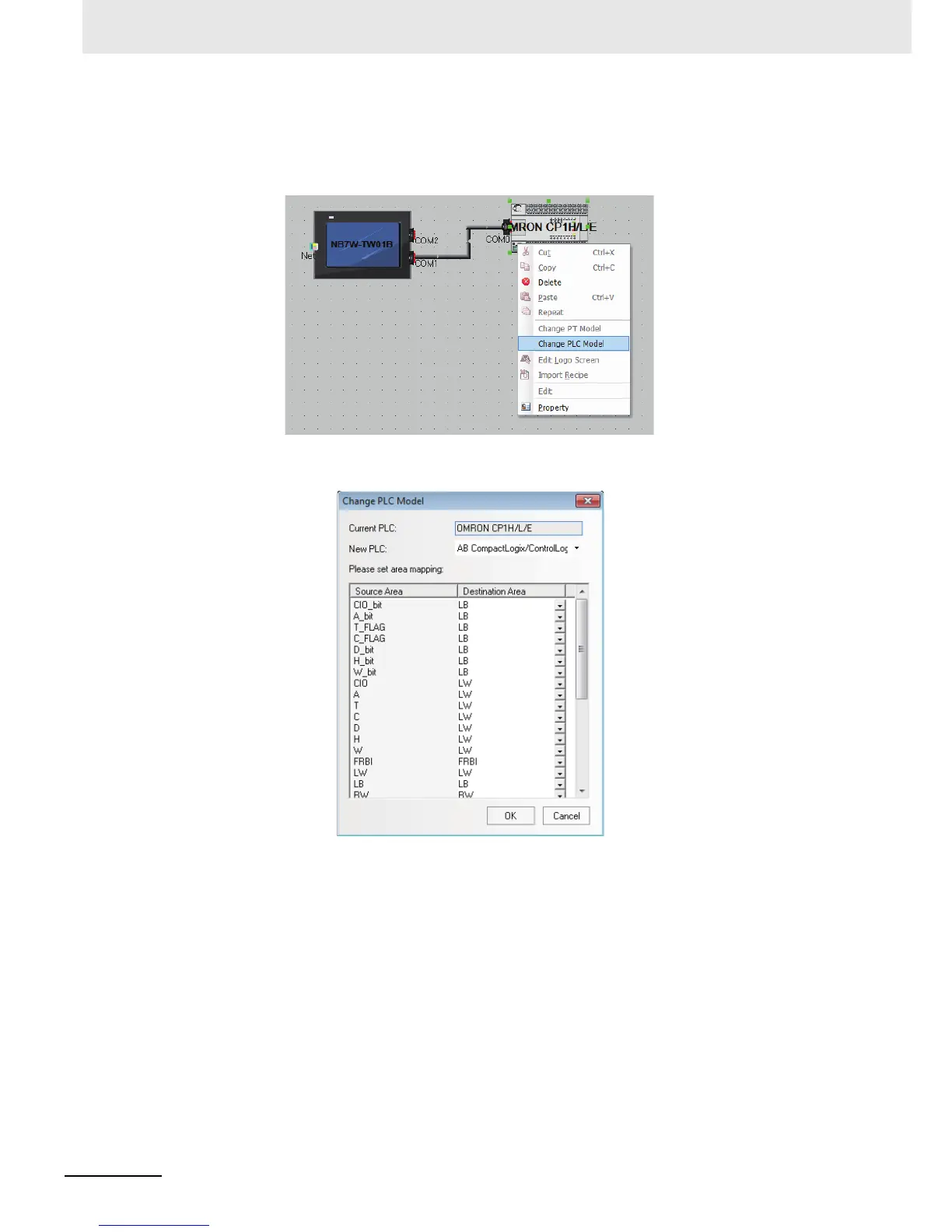

Then, the Change PLC Model dialog box will pop up, as shown below.
A dialog box as shown above will pop up automatically, and all the supported PLC names are
included in the pull-down list of the PLC names. When the user select a PLC, the memory address
types supported by this PLC will be added to the address type box. The default selections are LB &
LW, but the user can select different address types according to the specific PLC. After being
confirmed by the user, the PLC will be replaced, and the corresponding PLC memory address in the
project will also be replaced at the same time.
Note The function does not support the replacement from the unit type of the Ethernet connections to the unit type
of the serial connections.
