Precautions for Correct Use

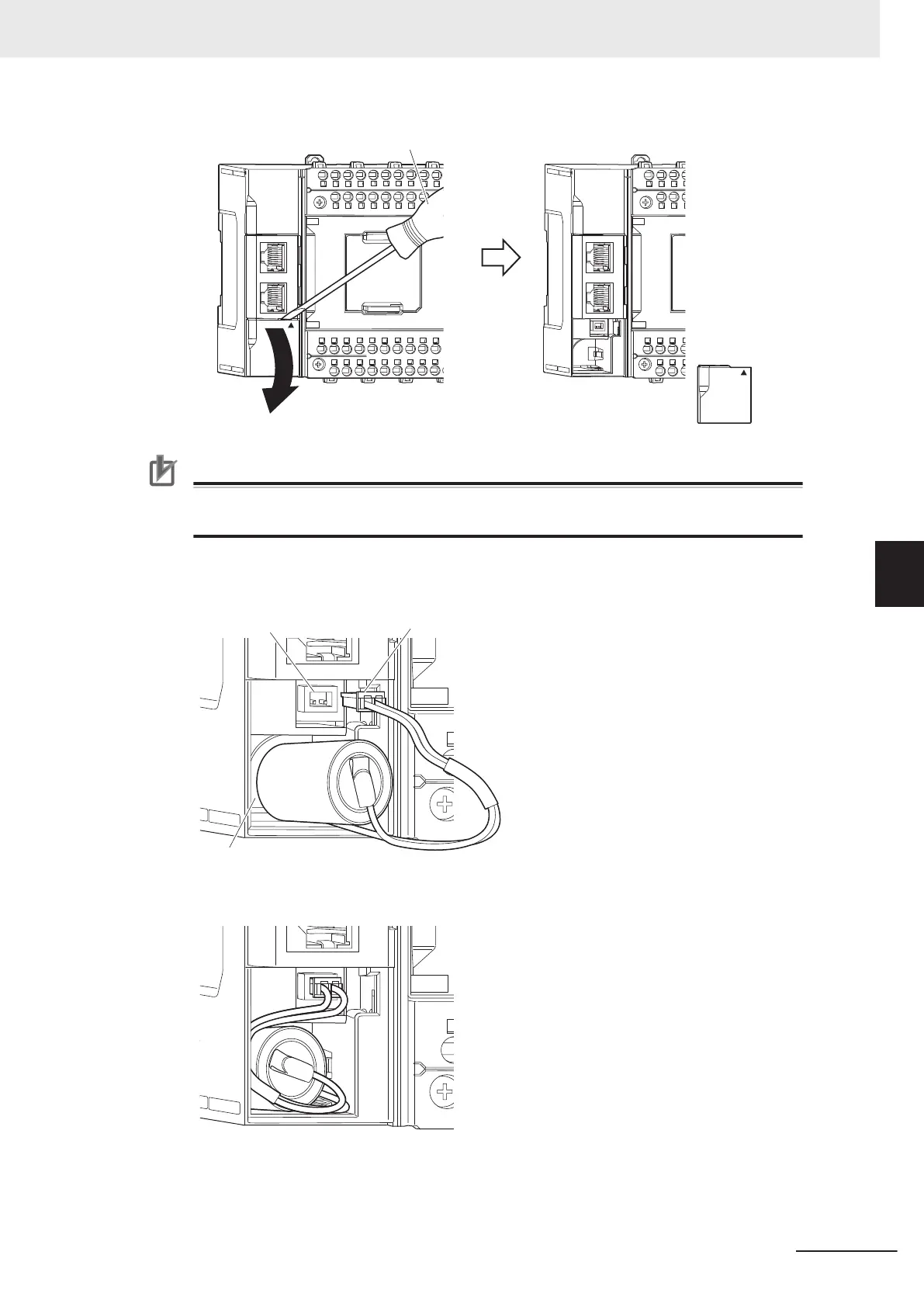

The battery cover will come off. Be careful not to allow the cover to fall and get lost dur-
ing removal.
3 Connect the connector of the battery to the battery connector and insert the battery in the bat-
tery slot.
Battery connector
Battery slot
Connector
4 Press in the battery harness and attach the battery cover.
5 Set the Battery-related error detection to Use and adjust the CPU Unit
’
s clock data to the
current time.
5 Installation and Wiring
5-35
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
5-3 Mounting and Removing Units
5
5-3-10 Battery Installation
