Omron NX1P2 series Hardware User Manual

Installation Height
The installation height of the CPU Rack depends on the model of DIN Track and on the models of NX
Units that are mounted.
Also, additional space is required for the cables that are connected to the Unit. Allow sufficient depth in
the control panel and allow extra space when you mount the CPU Rack.

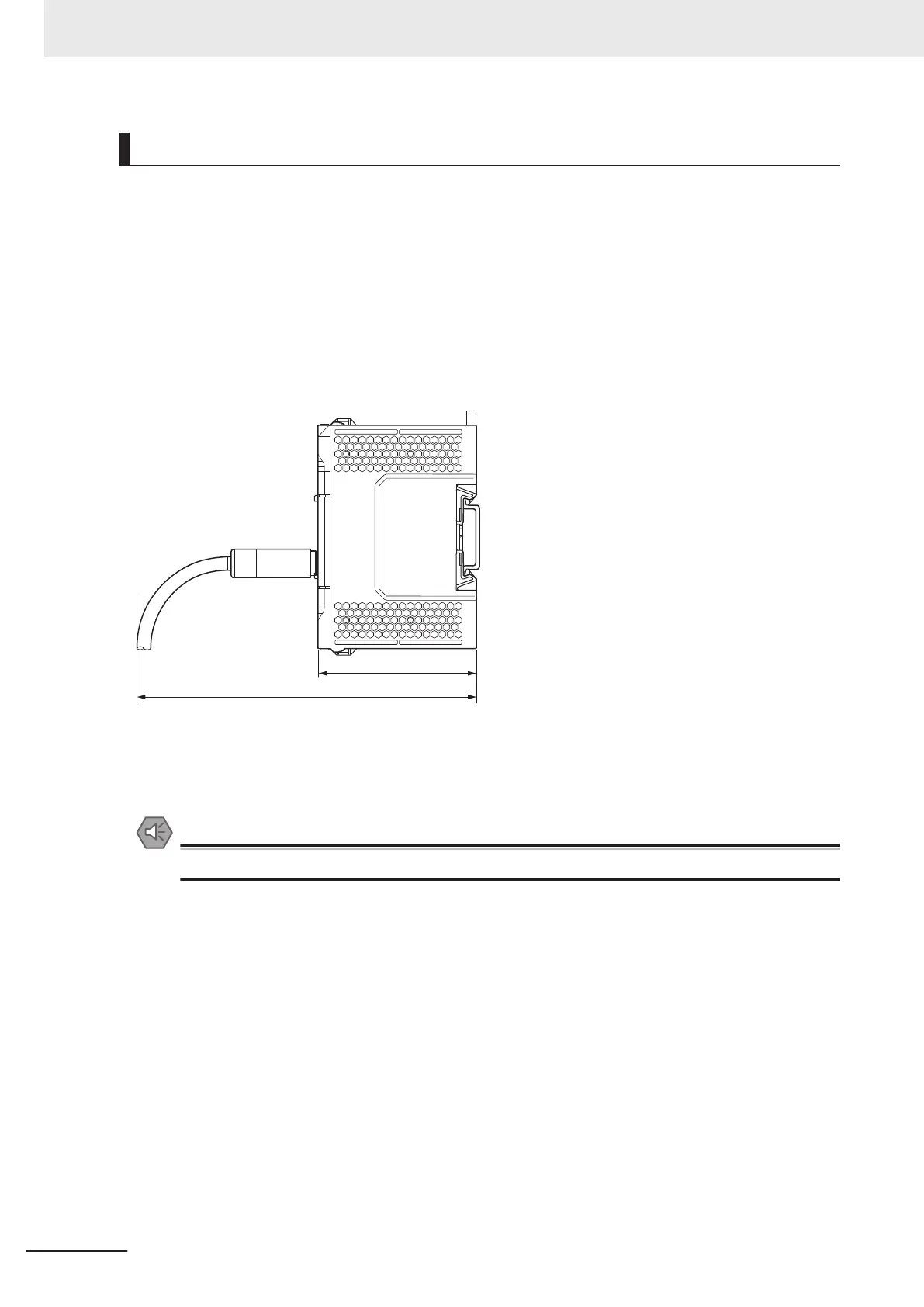

The following figure shows the dimensions from the cables connected to the CPU Rack to the back of
the Unit. The unit of dimension is millimeter
.
The height from the mounting surface of the DIN Track varies depending on the DIN Track to be used.
Refer to Installation Dimensions on page 5-39 for the height of individual DIN Track type.
71
140.7 to 157.3
*1
Unit: [mm]
*1. This is the dimension from the back of the Unit to the communications cables.
Approx. 132 mm: When MPS588-C Connector is used
Approx. 142 mm: When XS6G-T421-1 Connector is used
Precautions for Safe Use
Do not bend the cable forcibly. Doing so may break the cable.
5 Installation and Wiring
5-42
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
