Omron NX1P2 series Hardware User Manual

l

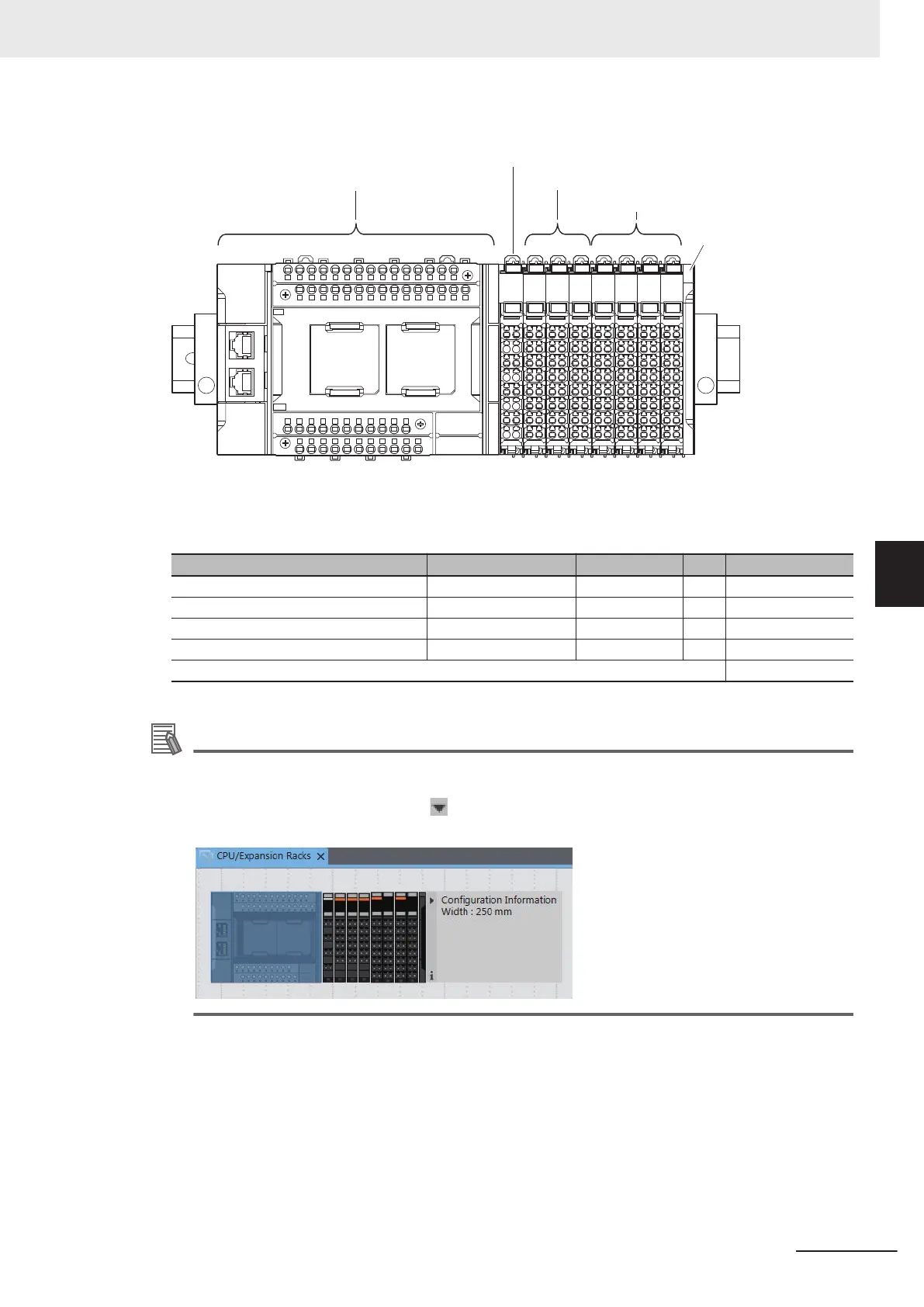

Calculation Example of CPU Rack Configuration Width
CPU Unit
(40-point type)
NX Unit: Additional I/O Power Supply Unit
End Cover
NX Units: Digital Input Units with 4 inputs each
NX Units: Temperature Input Units with 4 inputs each
The widths of the Units in the example CPU Rack configuration and the total configuration width
are given below.
Unit name Model Unit width Qty Subtotal unit width
CPU Unit NX1P2-1140DT 154 mm 1 154 mm
Additional I/O Power Supply Unit NX-PF0630 12 mm 1 12 mm
NX Units: Digital Input Units NX-ID3317 12 mm 3 36 mm
NX Units: Temperature Input Units NX-TS3101 24 mm 2 48 mm
Total (W=) 250 mm
Additional Information
You can check the width of the CPU Rack when you create the Unit configuration on the CPU
and Expansion Racks Tab Page on the Sysmac Studio. On the CPU and Expansion Racks T
ab
Page on the Sysmac Studio, click
on the right end of the CPU Rack to display the width.
5 Installation and Wiring
5-41
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
5-3 Mounting and Removing Units
5
5-3-13 Assembled Appearance and Dimensions

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
