Omron NX1P2 series Hardware User Manual

1.5 mm or less
4.0 m
m or less

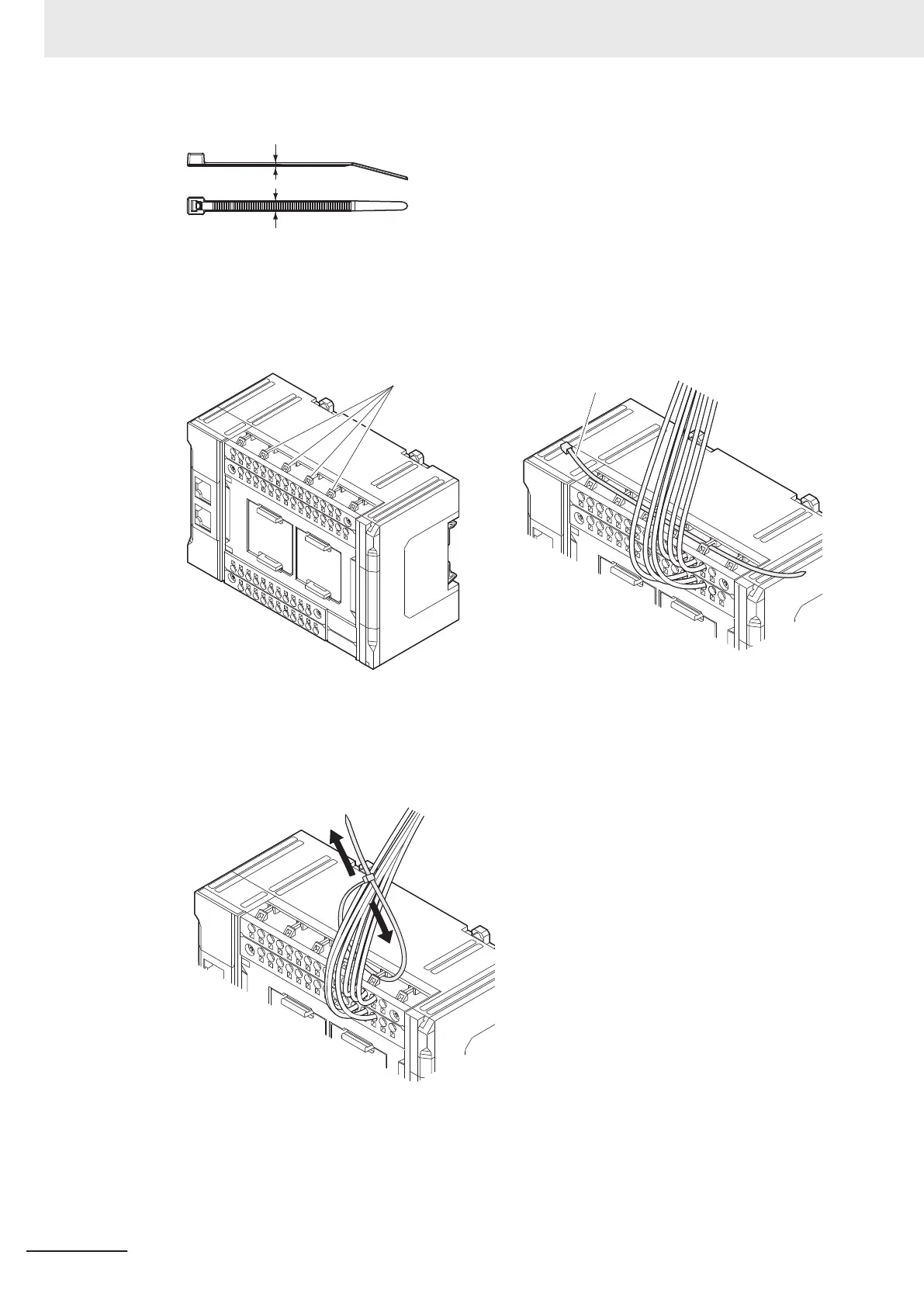

2 Pass a cable tie through the holes for securing wires on the upper and lower sides of the
screwless clamping terminal block.
Hole for securing wires
Cable tie
3 Bundle five to six wires with a cable tie and secure them to the screwless clamping terminal
block.
Secure wires within the range of 30 mm from the screwless clamping terminal block. Also,
leave spaces above and below the CPU Rack to ensure ventilation, as shown in the following
figure.
5 Installation and Wiring
5-58
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
