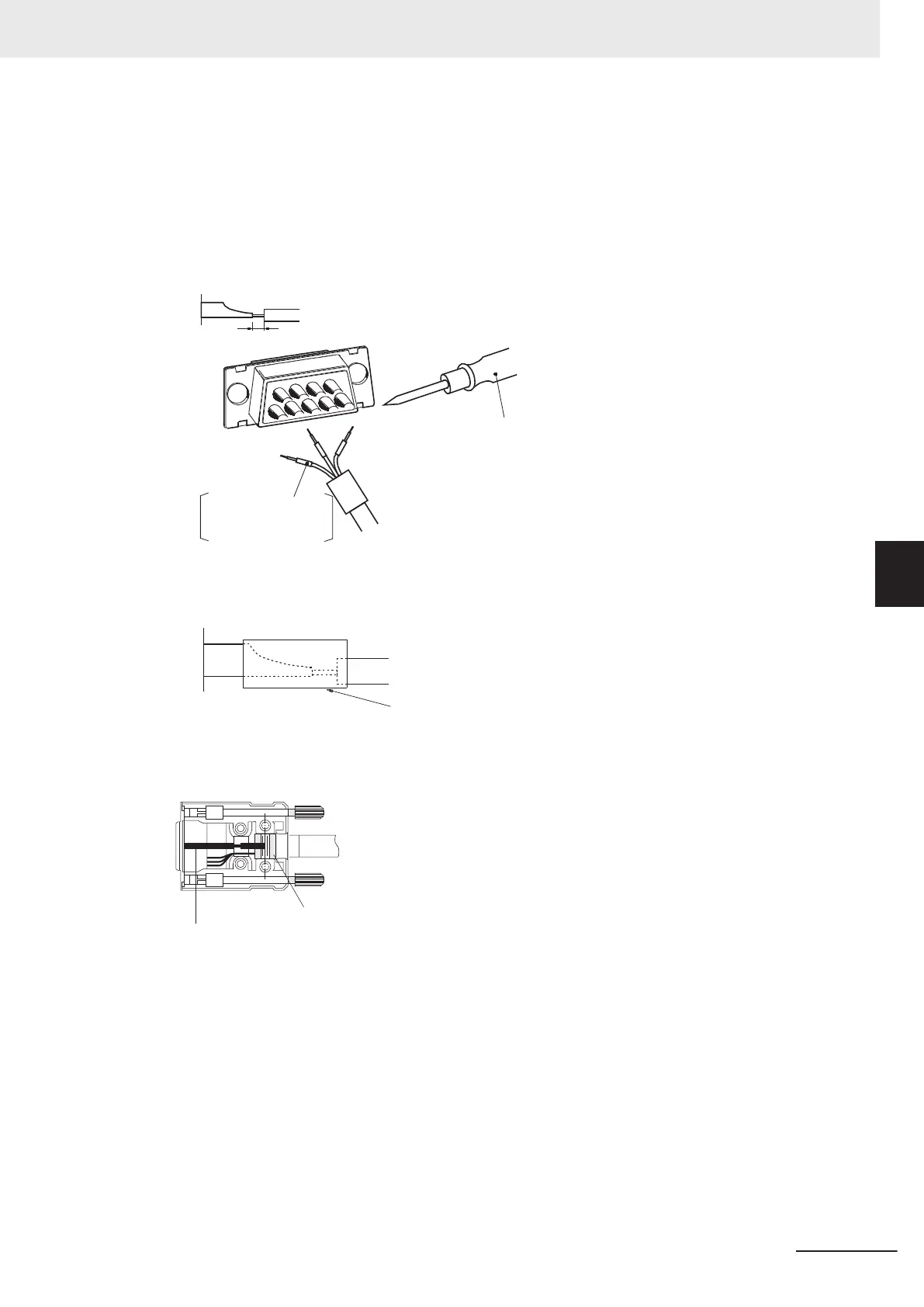

Soldering

1 Place a heat-shrinking tube on each conductor.

2 Temporarily solder each conductor to the corresponding connector terminals.

3 Completely solder each conductor.

Soldering iron

Heat-shrinking tube

Inside diameter:

1.5 mm, l = 10

1 mm

4 Return the heat-shrinking tube to the soldered portion, then heat the tube to shrink it with a

heat gun.

Heat-shrinking tube

Assembling Connector Hood

Assemble the connector hood as shown below.

Alminum foil tape

Ground plate

5 Installation and Wiring

5-73

NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)

5-4 Wiring

5-4-10 Wiring the NX1W-CIF01 Serial Communications Option Board
