5-56
5-10 User Parameters
5
Operating Functions
 Set the number of rotations for the Servomotor Rotation Speed Detection Output (TGON) during
Internally Set Speed Control.
 The Servomotor Rotation Speed Detection Output (TGON) will turn ON if the Servomotor speed
exceeds the set speed regardless of the direction of rotation.
 There is a hysteresis of 10 r/min, so set a value higher than 10.
 Set the detection level for the deviation counter overflow alarm.
 The alarm level is the setting value multiplied by 256 pulses.
 The deviation counter overflow alarm can be disabled so that it does not occur.
Explanation of Settings

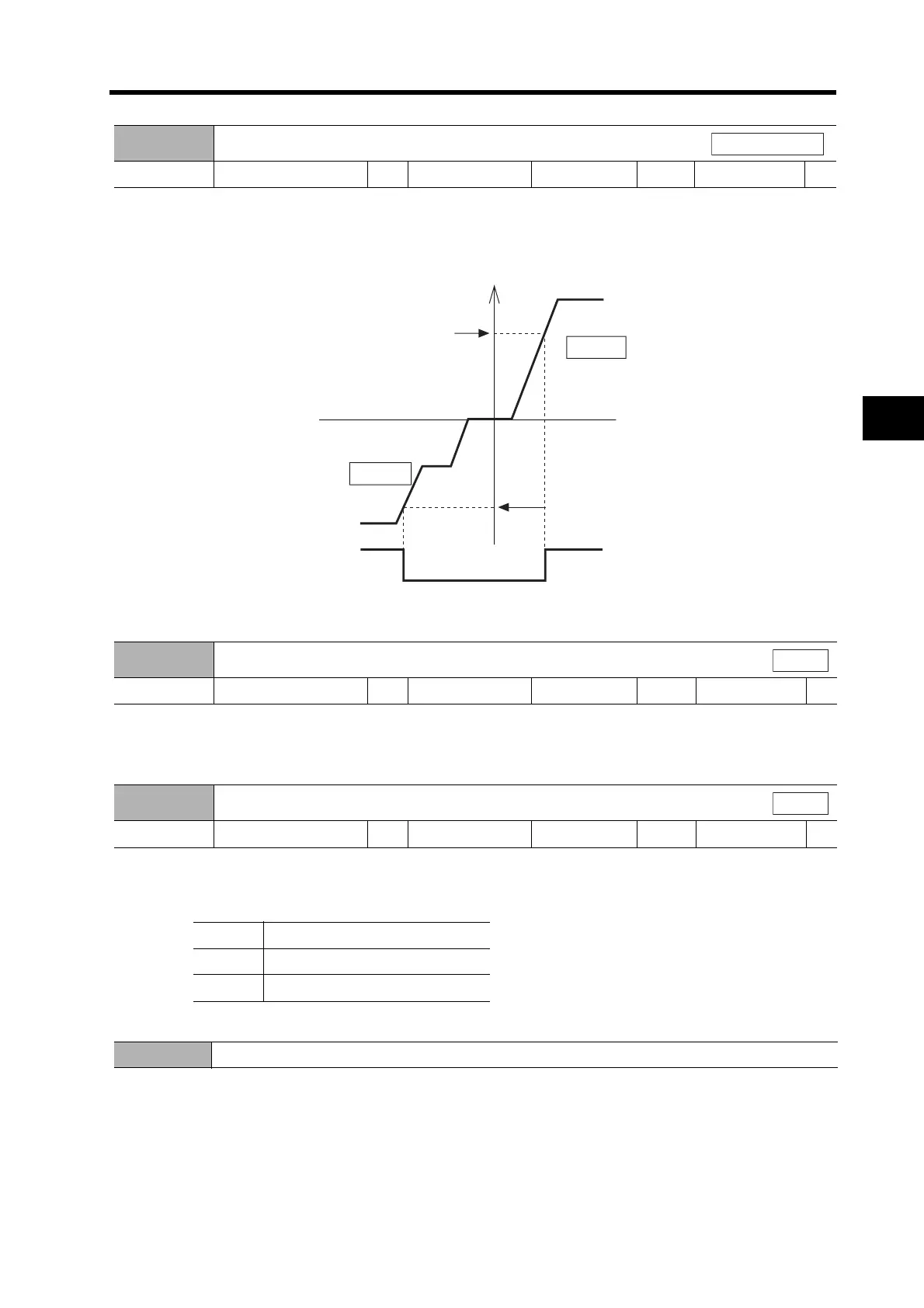

Pn62
Rotation Speed for Servomotor Rotation Detection
Setting range 0 to 20000 Unit r/min Default setting 50
Power OFF → ON
---
Internally set speed
Speed
Reverse
TGON
Forward
Pn62
Pn62
Pn63
Deviation Counter Overflow Level
Setting range 0 to 32767 Unit × 256 pulses Default setting 100
Power OFF → ON
---
Position
Pn64
Deviation Counter Overflow Alarm Disabled
Setting range 0 or 1 Unit --- Default setting 0
Power OFF → ON
---
Position
Setting Explanation
0 Enabled
1 Disabled
Pn65 Not used. (Do not change setting.)
To Next Page
