Examples of Applied Control Types Section 5-2

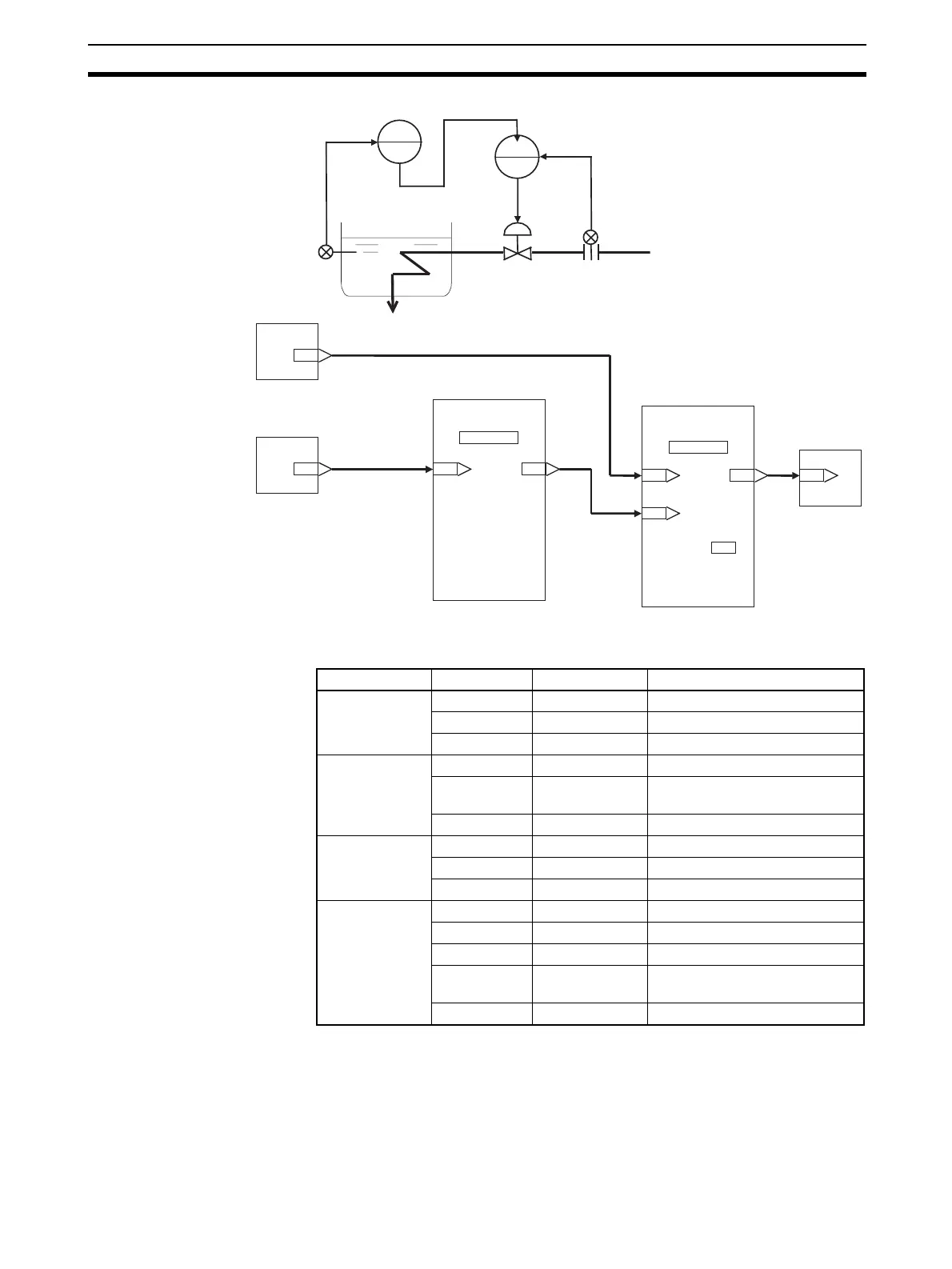

Example
∗1: By this function, the value of the secondary loop LSP2 is forcibly written
over the primary loop MV1 when the secondary loop is set to Local.
Note As shown above, the function of ITEM032 (bumpless processing between pri-
mary/secondary loops) of the Basic PID block (Block Model 011) or Advanced
PID block (Block Model 012) can be used to enable switching of primary loop
MV1 to the secondary loop LSP2 when the secondary loop is set to Local.
PID2
PV1
MV 1
PID1
MV 2
PV2
RSP2
Analog
input
Analog
input
Analog
output
022
PV2
006
PV2
Advanced PID
<Block Model 012>
021
032
087
MV2
006
Advanced PID
<Block Model 012>
Address 001
087
PV
MV1
SP2
PV1
021
021
Bumpless
processing
∗
1
∗
1: The self node overwrites the actual Local Set Point 2
value with primary side MV1 when the self node is the
local node by setting bumpless output to 1 (ON).
Address 002
Block address ITEM No. Data Explanation
901 002 586 AI 4-point Terminal block
021 Y1 (analog input 1)
022 Y2 (Analog input 2)
902 002 587 AO 4-point terminal block
021 002087 X1 (analog output 1) source
designation
031 X1 (analog output 1)
001 002 012 Advanced PID block
006 901021 PV source designation
087 MV
002 002 012 Advanced PID block
006 901022 PV source designation
021 001087 RSP source designation
032 1 Bumpless processing between
primary/secondary loops *1
087 MV
