Connecting to CX-Process Tool Section 2-3
Ethernet Unit Model
2-3-2 Using CX-Server
The following two methods can be used to connect to the PLC.

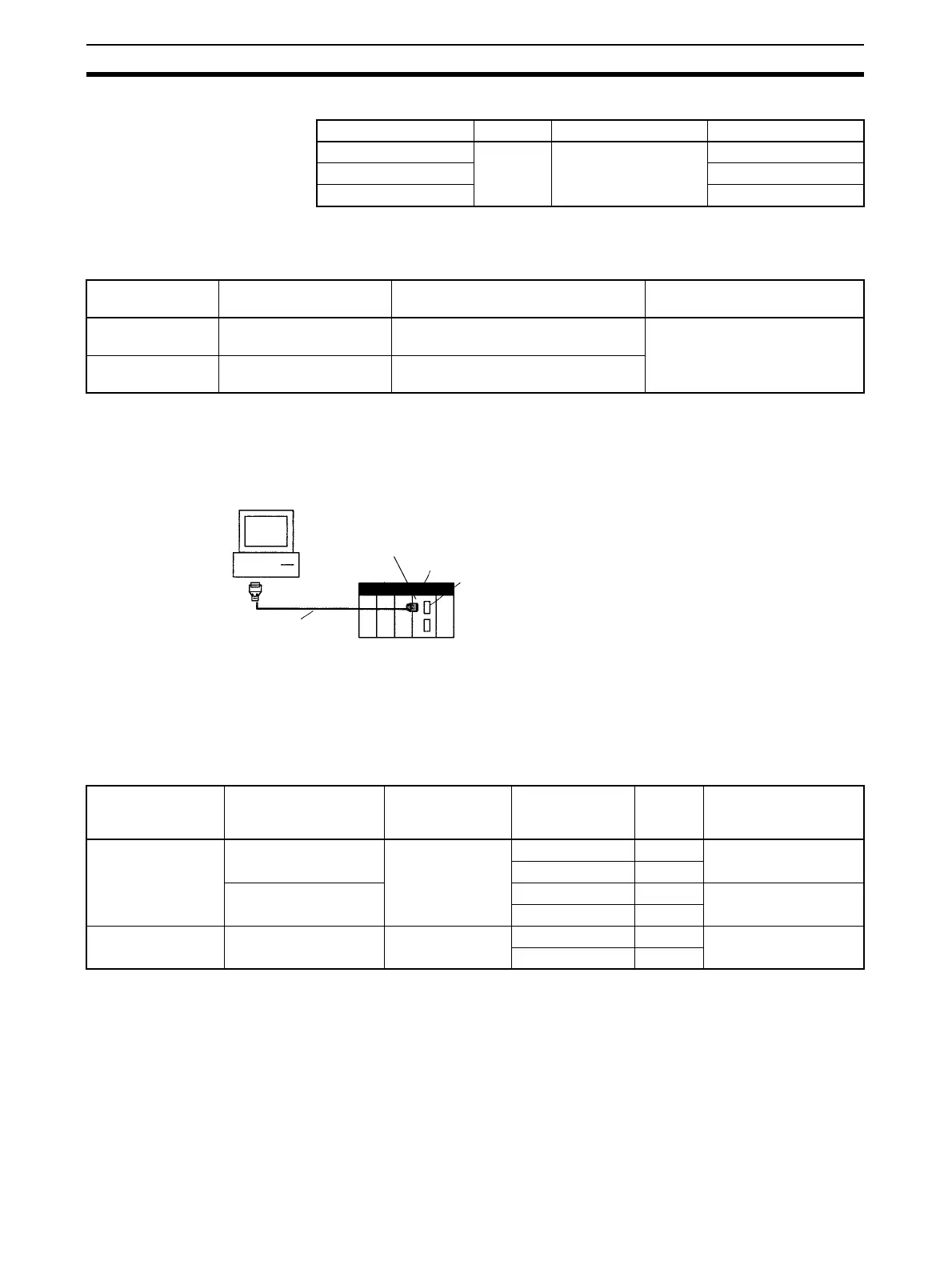

The connections shown in the following diagram can be used with either
Peripheral Bus or Host Link connections. (For Process-control CPU Units
(CS1D-CPU@@P), the connections are made to the active CPU Unit.)
2-3-3 Connecting Cables
The following table lists the Connecting Cables that can be used for Peripheral
Bus and Host Link connections. All of the cables connect to a male 9-pin D-
Sub serial port on an IBM PC/AT or compatible computer.
Note Touch a grounded metal to discharge all static electricity from your body
before connecting any of the above cable connectors to the RS-232C port of
the PLC.
The XW2Z-@@@S-CV Cable uses the anti-static XM2S-0911-E Connector
Hood. For safety sake, however, discharge all static electricity from your body
before touching the connector.
Model PLC Unit Ethernet
CS1W-ETN01 CS Series CPU Bus Unit 10Base-5
CS1W-ETN11 10Base-T
CS1W-ETN21 100Base-TX
Communications
network
Network type specified
in dialog box
Usage Cable connection
Peripheral Bus
(Toolbus)
Select Toolbus. Special high-speed communications
protocol for Programming Devices
Connect to the PLC’s peripheral
or RS-232C port.
Host Link (SYS-
MAC WAY)
Select SYSMAC WAY. Standard protocol for general-purpose
host computers
CX-Process
Tool
IBM PC/AT or
compatible
(9-pin male)
Loop Control Board
CS1 CPU Unit
Peripheral
port
CS1W-CN226 or
CS1W-CN626
Connecting Cable
Note The Peripheral Bus connection cannot
be used with a Serial Communications
Board or Unit.
Connections to the Peripheral
Port of the CPU Unit
Connections to the RS-232C port of the CPU
Unit or Serial Communications Board or Unit
Recommended cable:
OMRON XW2Z-200S-CV
Unit Port location Serial
Communications
Mode
Model Length Remarks
CPU Unit Built-in peripheral port Host Link
(SYSMAC WAY)
or Peripheral Bus
(Toolbus)
CS1W-CN226 2.0 m ---
CS1W-CN626 6.0 m
Built-in RS-232C port
Female 9-pin D-SUB
XW2Z-200S-CV 2 m Anti-static connector
XW2Z-500S-CV 5 m
Serial Communica-
tions Board or Unit
RS-232C port
Male 9-pin D-SUB
Host Link
(SYSMAC WAY)
XW2Z-200S-CV 2 m Anti-static connector
XW2Z-500S-CV 5 m
