Omron SYSMAC CS1 User Manual

1-2SectionModels and System Configurations
5
1-2 Models and System Configurations
1-2-1 Models
There are three models of Customizable Counter Unit, all of which are classified
as CS1 Special I/O Units.
Model number Functions
CS1W-HIO01 12 contact inputs, 8 contact outputs
CS1W-HCP22 12 contact inputs, 8 contact outputs, 2 pulse inputs, 2 pulse outputs
CS1W-HCA22 12 contact inputs, 8 contact outputs, 2 pulse inputs, 2 analog outputs
1-2-2 System Configurations

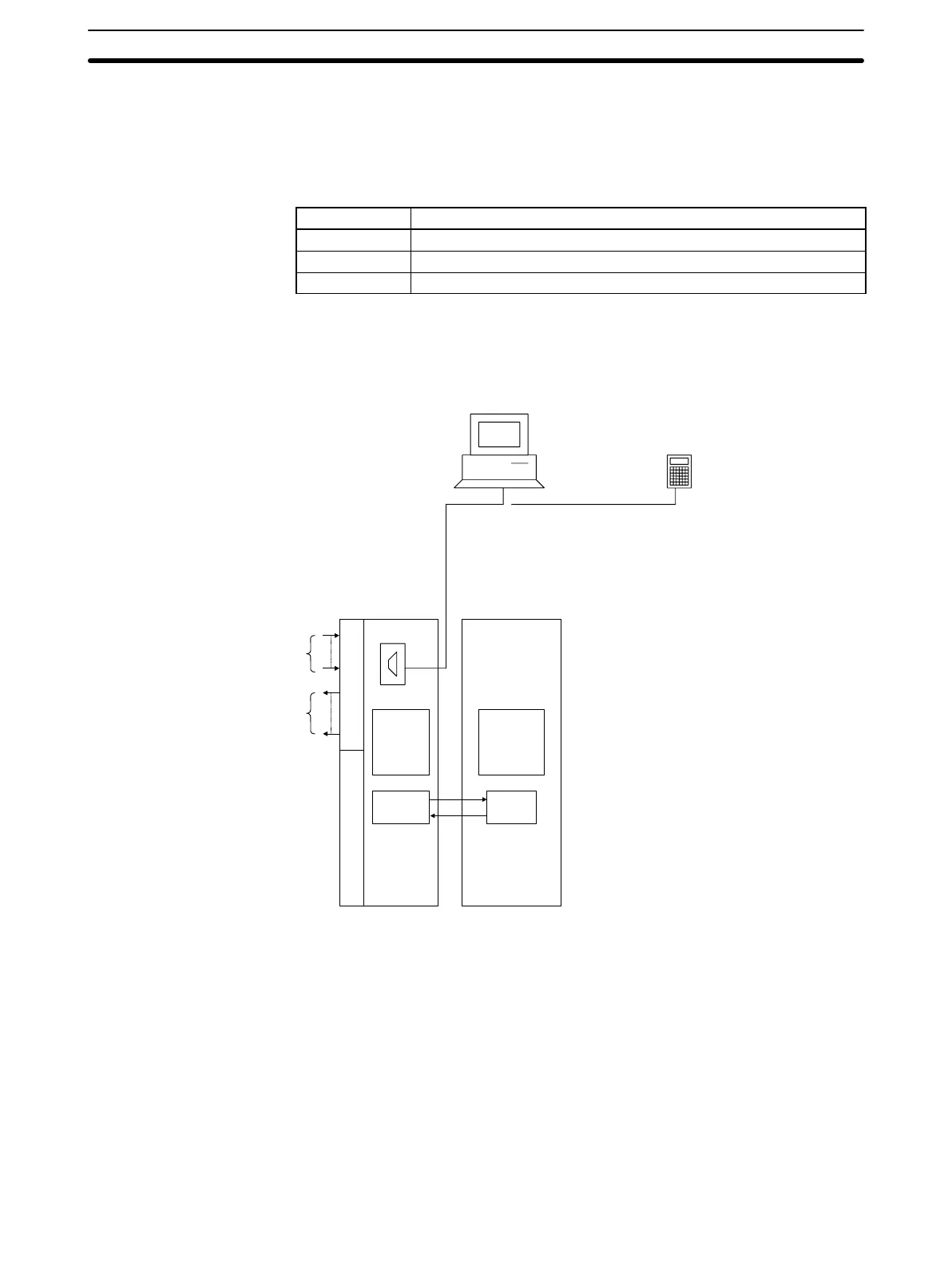

CS1W-HIO01 (Basic Model)
12 contact inputs, 4 of
which can be used as
interrupt inputs
8 contact outputs
CS1W-HIO01
Customizable
Counter Unit
Peripheral port
Ladder
program
I/O
memory
Ladder
program
I/O
memory
CS1-series CPU Unit
Programming
Device
CX-Programmer
Creating, transferring, and
monitoring the program for the
Customizable Counter Unit.
OR
Programming
Console
Peripheral Port Connecting Cable
(peripheral bus)
Contact I/O
