1-2SectionModels and System Configurations
7

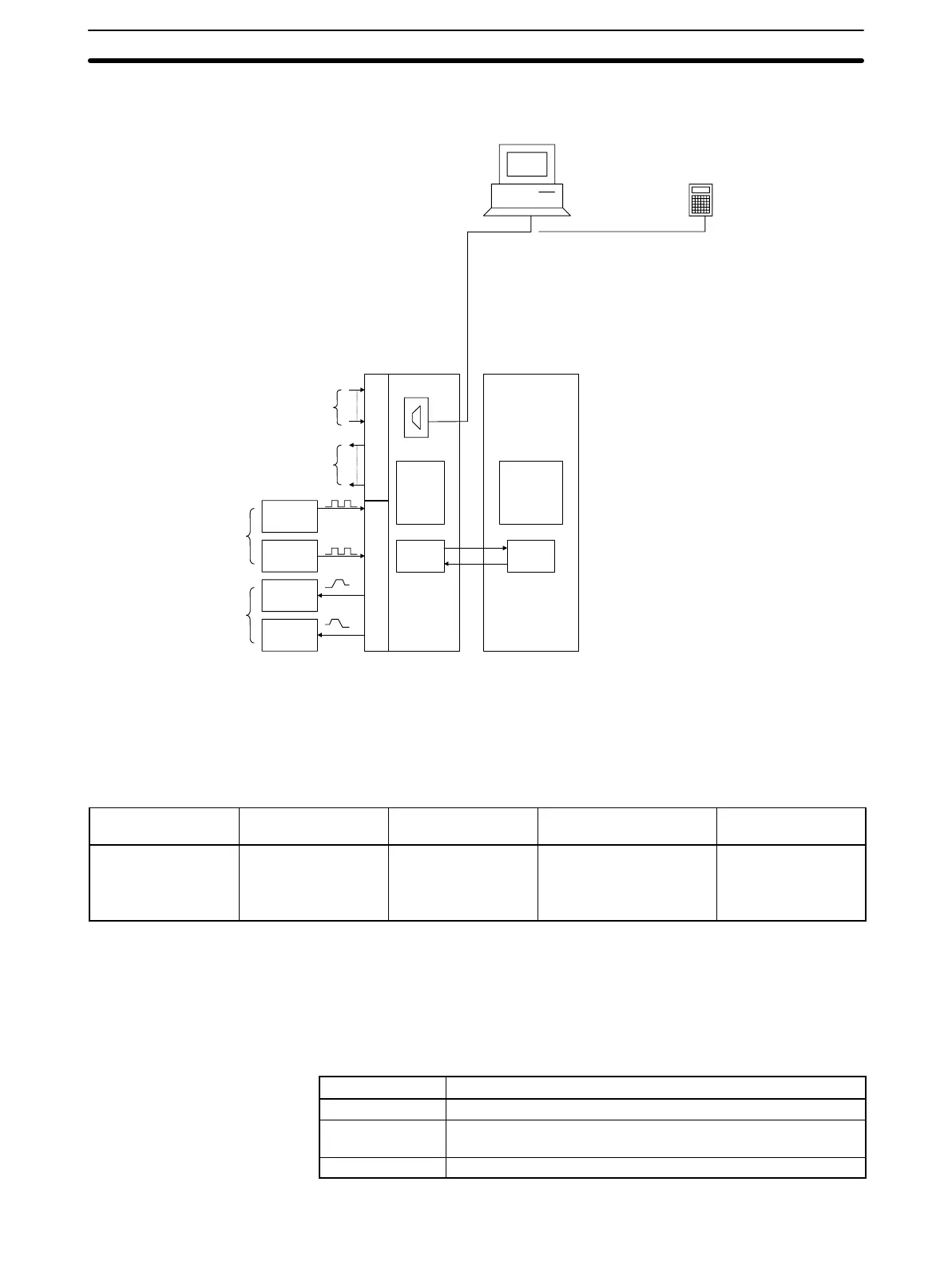

CS1W-HCA22 (Pulse Inputs and Analog Outputs)
Rotary en-
coder, etc.
Operation
terminal,
etc.
2 pulse inputs
2 analog outputs
12 contact inputs, 4 of
which can be used as
interrupt inputs
8 contact outputs
CS1W-HCA22
Customizable
Counter Unit
Peripheral port
Ladder
program
I/O
memory
CS1-series CPU Unit
Programming
Device
CX-Programmer
Creating, transferring, and
monitoring the program for
the Customizable Counter
Unit.
OR
Programming
Console
Peripheral Port Connecting Cable
(peripheral bus)
Rotary en-
coder, etc.
Operation
terminal,
etc.
I/O
memory
Ladder
program
Special I/O Contact I/O
1-2-3 Programming Devices
The CX-Programmer versions that can be used with the Customizable Counter
Unit are given in the following table.
Name Model number Computer Serial communications
mode
Model setting on
the CX-Programmer
CX-Programmer Ver.
1.2 or later (on
CD-ROM)
WS02-CXPC1-E IBM PC/AT or
compatible
OS: Microsoft
Windows 95 or 98
Peripheral bus CQM1H-CPU61
Note There are some functional limitations in using the CX-Programmer
with the Customizable Counter Unit. Refer to 3-4 Programming De-
vices for details.
The Programming Consoles that can be used with the Customizable Counter
Unit are given in the following table.
Model number Cable
C200H-PRO27 CS1W-CN224 or CS1W-CN624 required separately.
CQM1-PRO01 2-m cable provided with Programming Console, but
CS1W-N114 required separately.
CQM1H-PRO01 2-m cable provided with Programming Console
