Omron SYSMAC CS1 User Manual

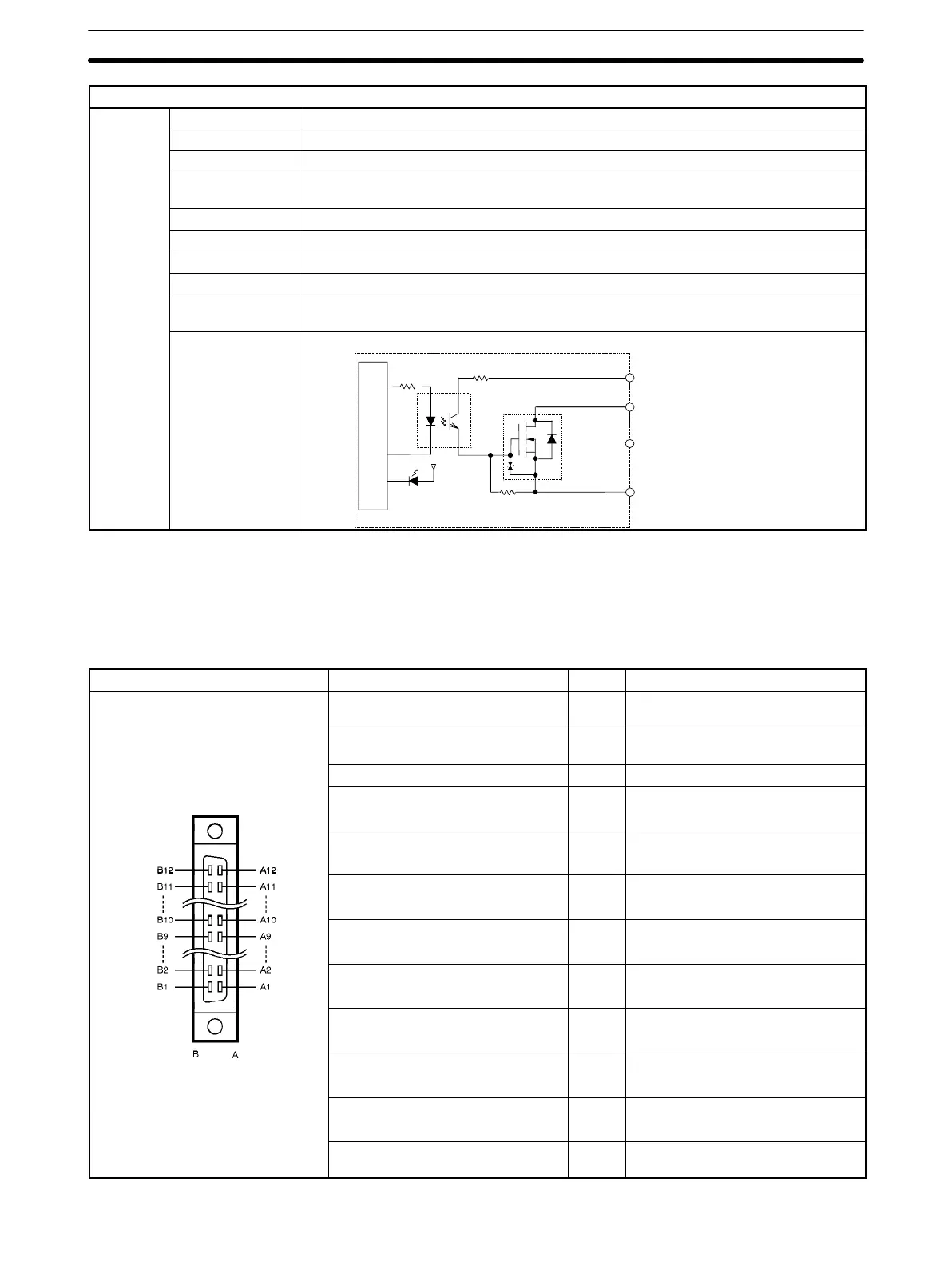

2-2SectionContact I/O Specifications (All Units)
19
Item Specifications
Contact
Number of outputs 8 outputs (used as normal outputs only)
outputs
Output type Sinking (NPN)
Switching capacity 4.5 to 30 VDC, 0.3 A per output
Maximum inrush
current
3.0 A per point, 10 ms max.
Leakage current 0.1 mA max.
Residual voltage 0.4 V max.
ON delay time 0.1 ms max.
OFF delay time 1 ms max.
External power
supply
4.5 to 26.4 VDC
Circuit
configuration
Customizable Counter Unit
Output
indicator
OUT00
+V
OUT07
COM
Internal circuit
to
Note Information on input interrupts applies to both Input Interrupt Mode and Counter
Mode. Only single-phase inputs are possible for interrupt inputs.
2-2-2 I/O Connector Pin Arrangement
Pin arrangement Row B Pin Row A
External input 0 (Interrupt input or
normal input; bit 00000)
12 External input 2 (Interrupt input or
normal input; bit 00002)
External input 1 (Interrupt input or
normal input; bit 00001)
11 External input 3 (Interrupt input or
normal input; bit 00003)
Common for external inputs 0 to 3 10 Common for external inputs 4 to 11
External input 4
(Normal input; bit 00004)
9 External input 8
(Normal input; bit 00008)
External input 5
(Normal input; bit 00005)
8 External input 9
(Normal input; bit 00009)
External input 6
(Normal input; bit 00006)
7 External input 10
(Normal input; bit 00010)
External input 7
(Normal input; bit 00007)
6 External input 11
(Normal input; bit 00011)
External output 0
(Normal output; bit 00100)
5 External output 4
(Normal output; bit 00104)
External output 1
(Normal output; bit 00101)
4 External output 5
(Normal output; bit 00105)
External output 2
(Normal output; bit 00102)
3 External output 6
(Normal output; bit 00106)
External output 3
(Normal output; bit 00103)
2 External output 7
(Normal output; bit 00107)
Common for external outputs 0 to 7 1 Power supply for external outputs 0
to 7
