3-4SectionProgramming Devices
35

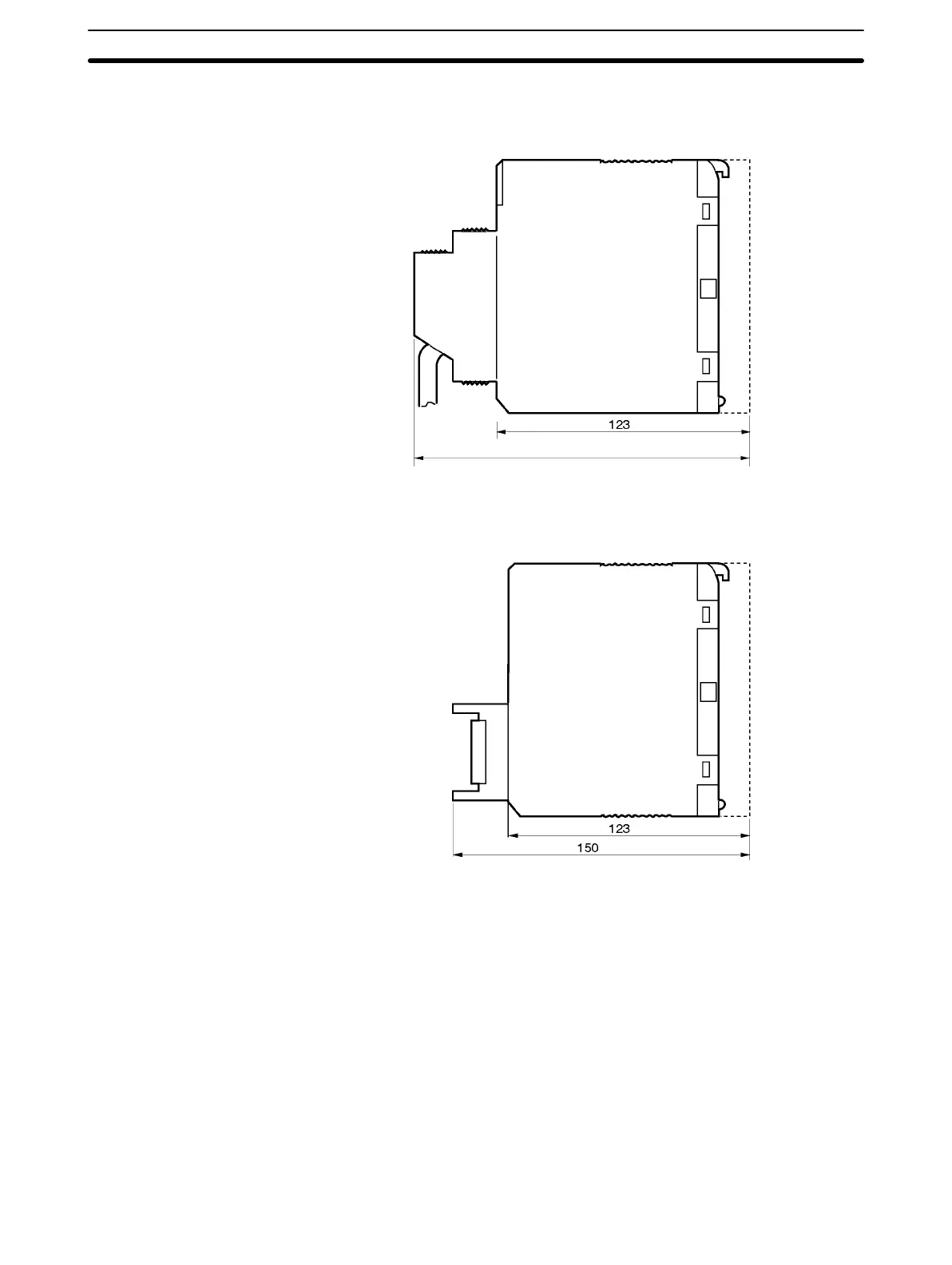

The dimensions when the Unit is mounted to the Rack and the cable connectors
are connected are shown below.
Approx. 179
With soldered or crimped Fujitsu connector:
With pressure-welded Fujitsu connector;
Connecting cable: G79-jjjC-jjj-jjj
XW2Z-jjj
RackRack
3-4 Programming Devices
Development, transfer, and monitoring of ladder programs, editing and monitor-
ing of I/O memory, and settings for the Unit Setup Area are carried out using a
Programming Device. Programming Devices include Hand-held Programming
Consoles and the CX-Programmer, which is installed onto a computer. Connec-
tion to either is made using the peripheral port on the front of the Unit.
Note 1. The Programming Device cannot be used for the Unit if it is connected to a
serial communications port (peripheral port, RS-232C port) on the CPU
Unit.
2. When using the CX-Programmer, register the Customizable Counter Unit
as a CQM1H-CPU61.
The following Programming Devices can be used.
• Programming Consoles
Mounting Dimensions
Compatible
Programming Devices
To Next Page
