3-1SectionNames and Functions of Parts
22

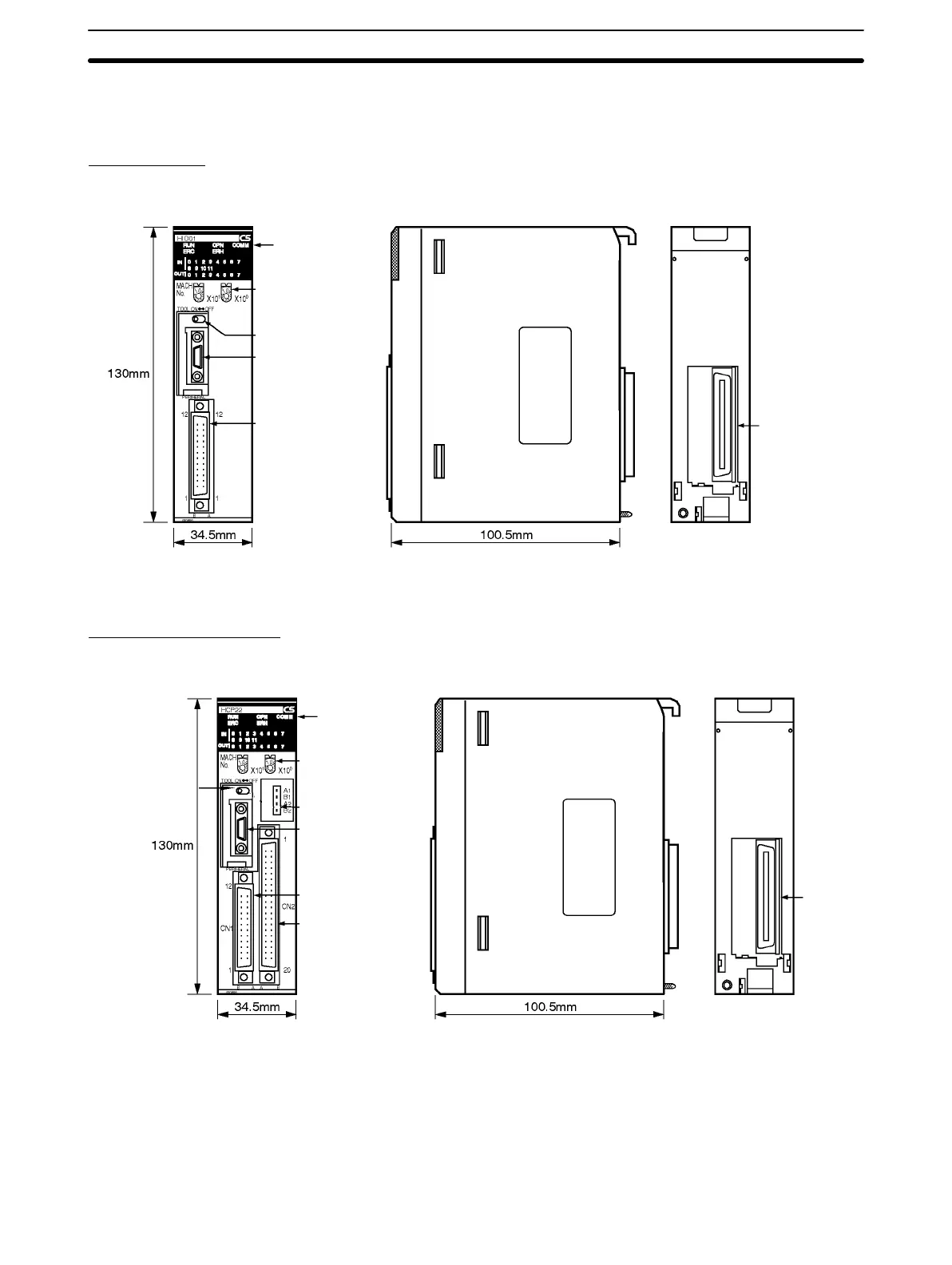

3-1 Names and Functions of Parts
CS1W-HIO01
Front View Side View Rear View
Backplane
connector
Indicators
Unit number switches
(Rotary switches):
Setting range: 0 to 95
Programming Device
connection switch
Peripheral port
I/O connector
CS1W-HCP22/HCA22
Front View Side View Rear View
Backplane
connector
Indicators
Unit number switches
(Rotary switches):
Setting range: 0 to 95
Programming Device
connection switch
Peripheral port
I/O connector
Special I/O connector
Indicators
Data is exchanged between the CPU Unit and the Customizable Counter Unit
via the Special I/O Unit Area and DM Area words allocated to Special I/O Units.
The words in these two areas that are allocated to the Customizable Counter
Unit are determined by the setting of the unit number switch on the front of the
Unit.
Unit Number Switches
(Rotary Switches)
