D-100 Display Module BACnet Installation and Operation Guide 04/12 - 0635-2 Page 10

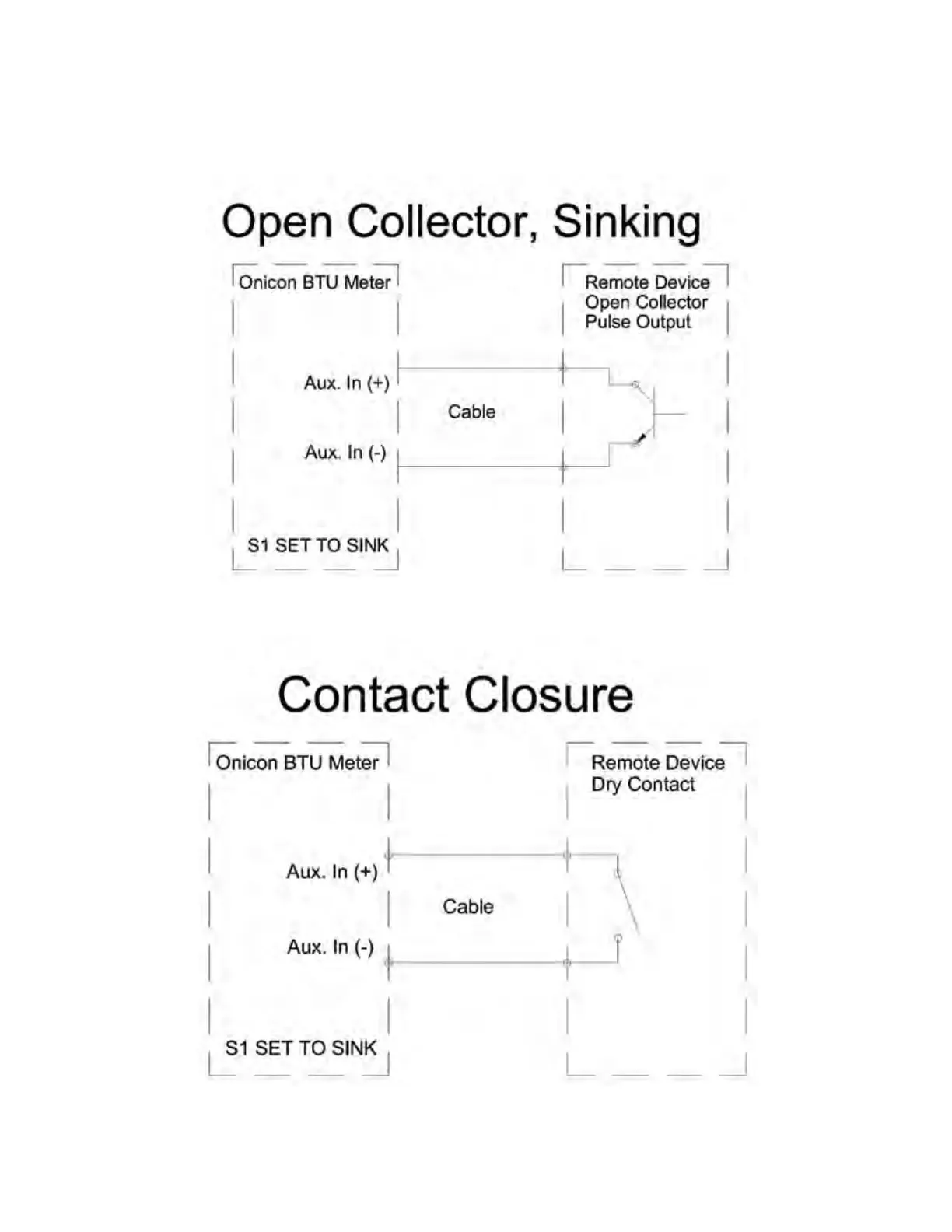

Open Collector Sinking or Dry Contact:
This type of output refers to an open collector switch congured in a current sinking
arrangement or a dry contact switch (see Fig. 4 and 5). Set the selector switch, S1 to Sink.
In either case, the switch must be rated for at least 20mA at 20 VDC.
Fig. 4
Fig. 5
