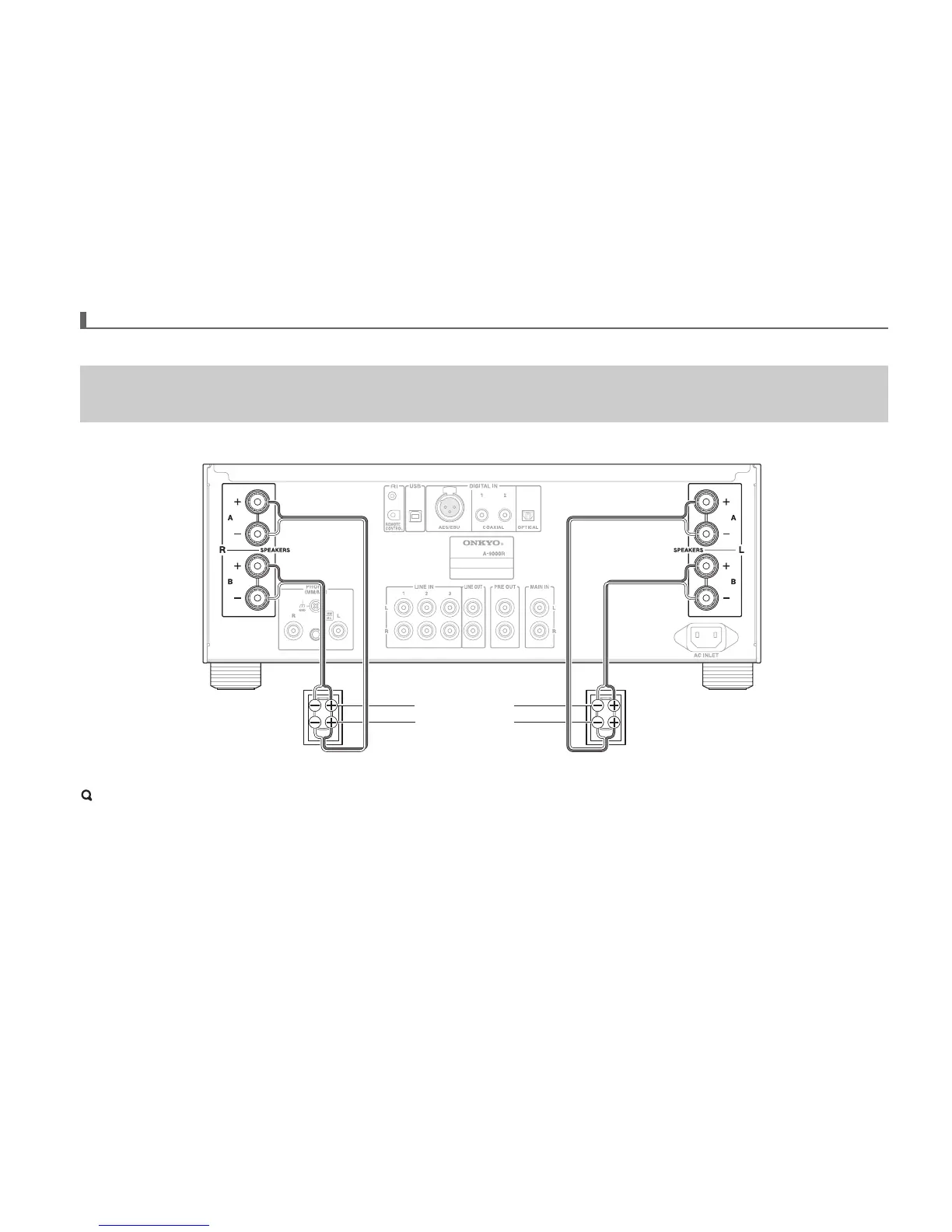

Bi-wiring provides improved bass and treble performance. Using terminals of both SPEAKERS A and SPEAKERS B, it separates high frequency from low frequency signals.
Tip
• As shown on the illustration, the wiring terminals of SPEAKERS A are connected to the woofer and SPEAKERS B are connected to the tweeter. However, wiring them the other way around is also possible.
Bi-wiring Connection
Important:
• Bi-wiring can be used only with speakers that support bi-wiring. Refer to your speaker manual.
• When making the bi-wiring connections, be sure to remove the jumper bars that link the speakers’ tweeter (high) and woofer (low) terminals.
• When making the bi-wiring connections, set SPEAKERS to A+B (➔ page 29).
Integrated Amplifier A-9000R
Right speaker Left speaker
Tweeter (high)
Woofer (low)

Onkyo A-9000R Specifications

General

Output level	0.001 mV
Damping factor	130
Amplifier class	-
Frequency range	1 - 250000 Hz
Output impedance	300 Ω
Input sensitivity	150 mV
Audio output channels	- channels
Peak power per channel	140 W
Signal-to-Noise Ratio (SNR)	107 dB
Total Harmonic Distortion (THD)	0.05 %
Dynamic power per channel (2 Ohm)	310 W
Dynamic power per channel (3 Ohm)	230 W
Dynamic power per channel (4 Ohm)	180 W
Dynamic power per channel (8 Ohm)	100 W
AC (power) in	Yes
Audio (L/R) in	1
Speakers connectivity type	RCA
Purpose	Home
Product color	Silver
Cables included	AC
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	300 W
Package weight	22500 g

Weight and Dimensions

Width	435 mm
Height	175 mm
Weight	18500 g
