Note
Push plugs in all the way to make good connections (loose connections can cause noise or malfunctions).
To prevent interference, keep audio cables away from power cords and speaker cables.
The integrated amplifier’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it’s removed. Push plugs in all the way.
To prevent shutter damage, hold the optical plug straight when inserting and removing.
Do not use digital audio signals other than PCM.
*
An analog audio cable can be used instead of a coaxial cable. However, we recommend that you use a coaxial or a composite video cable.
Plugging the AES/EBU cable
Match the pins and insert the terminal until you hear a “click”. Make sure that the terminal is
locked by lightly pulling the connection cable.
Unplugging the AES/EBU cable
Pull out the connection cable while holding down the lever.

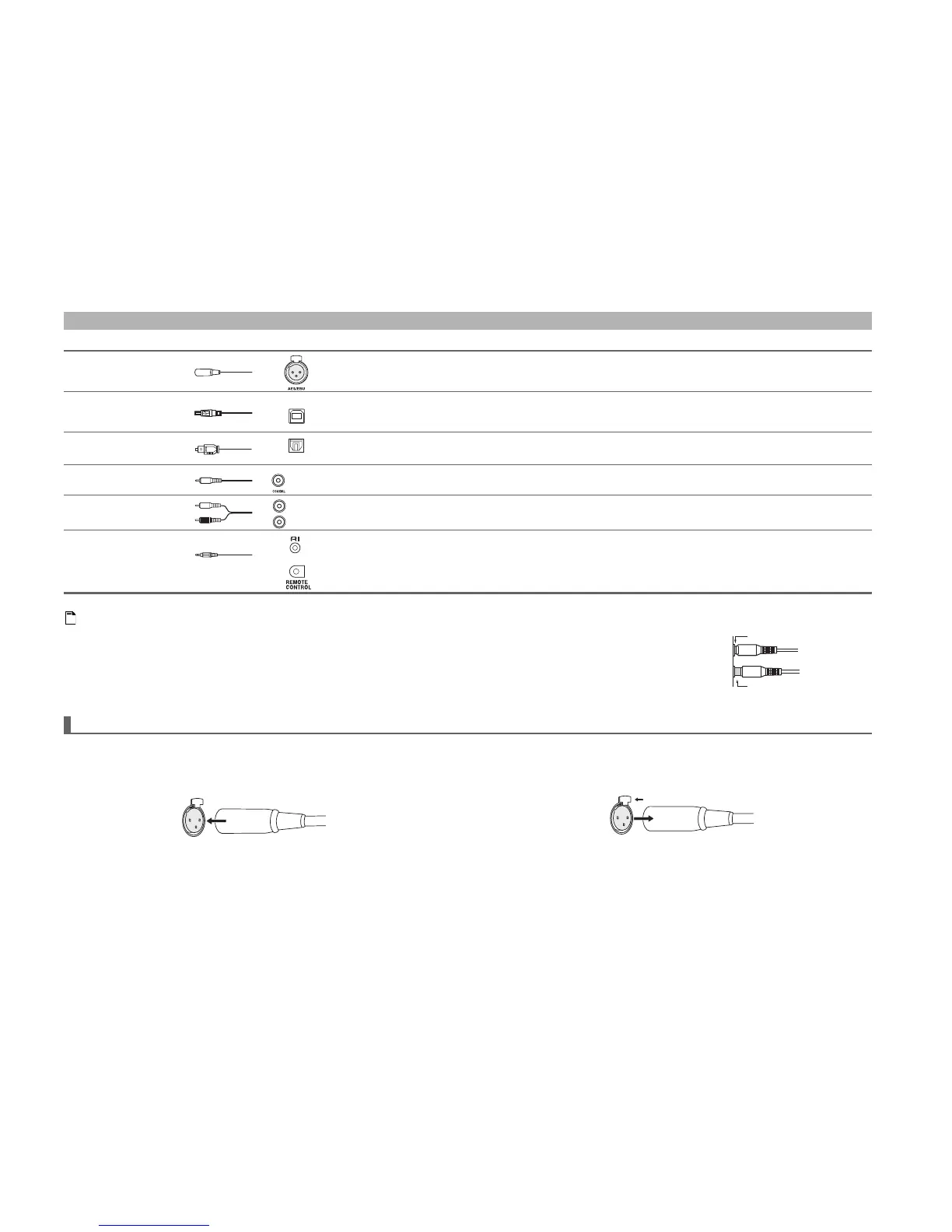

Cable and Jacks
Balanced AES/EBU This is a professional digital audio interface. Balanced AES/EBU cables are used for better noise immunity and longer cable runs. The maximum
sampling rate for PCM input is 192 kHz/24 bit, 2ch. The integrated amplifier provides 110-ohm impedance matching.
USB digital audio USB digital connections allow you to enjoy digital sound. The integrated amplifier supports high-speed USB 2.0. Use Type A-B USB cable. The
maximum sampling rate for PCM input is 192 kHz/24 bit, 2ch.
Optical digital audio Optical digital connections allow you to enjoy digital sound such as PCM. The maximum sampling rate for PCM input is 96 kHz/24 bit, 2ch.
Coaxial digital audio
*
Coaxial digital connections allow you to enjoy digital sound such as PCM. The maximum sampling rate for PCM input is 192 kHz/24 bit, 2ch.
The integrated amplifier provides 75-ohm impedance matching.
Analog audio (RCA) Analog audio connections (RCA) carry analog audio.
u To use u (Remote Interactive), you need to connect your Onkyo CD Player, Network Tuner, or RI Dock to the integrated amplifier with an u
cable.
About Balanced Input (AES/EBU Jack)
USB
OPTICAL
Orange
L
R
White
Red
Right!
Wrong!
a
b
Push
