This is an example of connection using the Onkyo Digital Media Transport.
Note
• Use only an Onkyo Dock with digital connections.
• To use the
u (Remote Interactive) connection, you need to change the names of inputs
(➔ pages 22, 36).
Tip
• Connect the Onkyo Dock to either of the following jacks: COAXIAL1/2, OPTICAL.

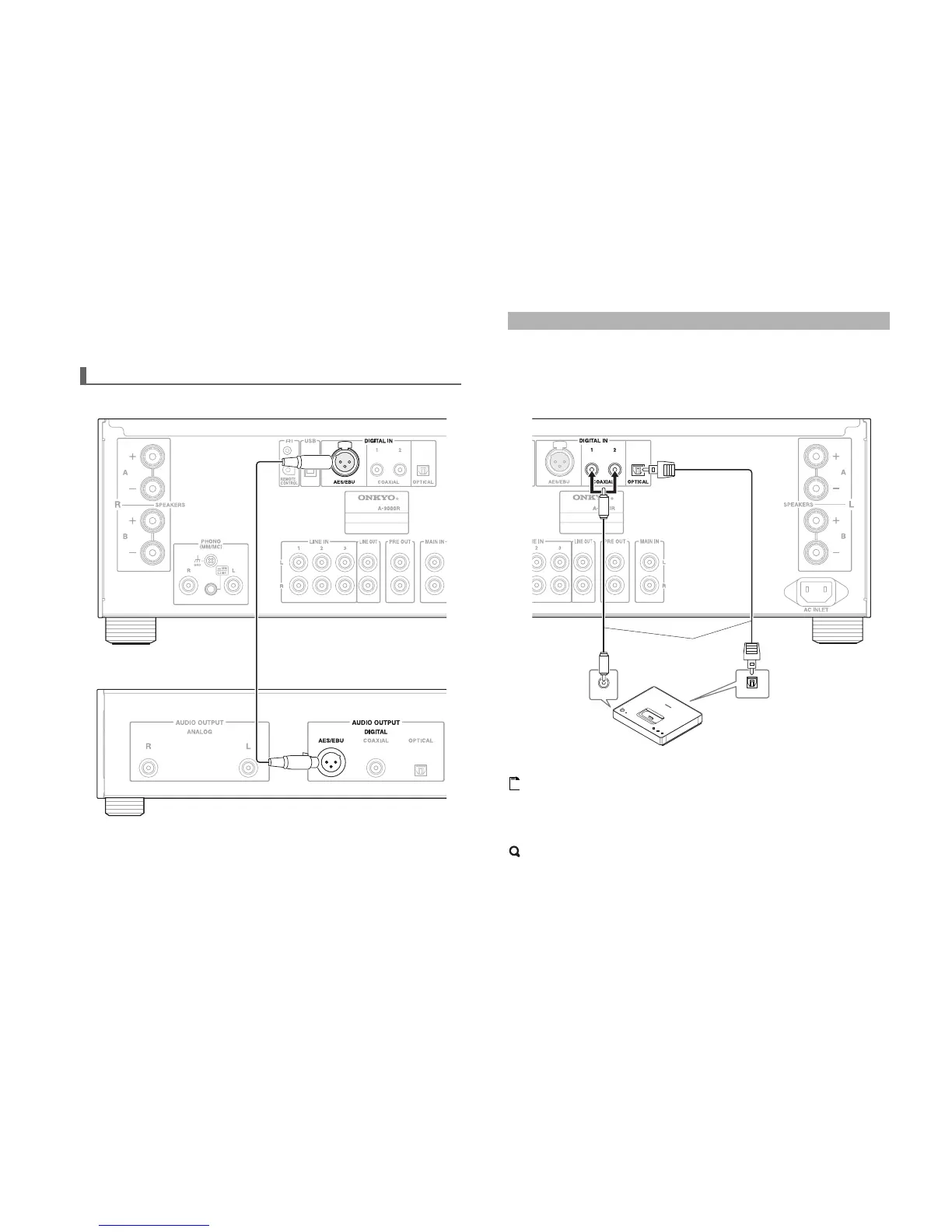

Digital Connection (AES/EBU)
Integrated Amplifier A-9000R
CD Player C-7000R
Connecting an Onkyo Dock
COAXIAL
OPTICAL
Y
B
D
N
A
T
S
/
N
O
Y
B
D
N
A
T
S
d
o
P
i
C
P
/
C
N
Y
S
C
N
Y
S
N
U
Integrated Amplifier A-9000R
Connect either of them.
Digital Media Transport

Onkyo A-9000R Specifications

General

Output level	0.001 mV
Damping factor	130
Amplifier class	-
Frequency range	1 - 250000 Hz
Output impedance	300 Ω
Input sensitivity	150 mV
Audio output channels	- channels
Peak power per channel	140 W
Signal-to-Noise Ratio (SNR)	107 dB
Total Harmonic Distortion (THD)	0.05 %
Dynamic power per channel (2 Ohm)	310 W
Dynamic power per channel (3 Ohm)	230 W
Dynamic power per channel (4 Ohm)	180 W
Dynamic power per channel (8 Ohm)	100 W
AC (power) in	Yes
Audio (L/R) in	1
Speakers connectivity type	RCA
Purpose	Home
Product color	Silver
Cables included	AC
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	300 W
Package weight	22500 g

Weight and Dimensions

Width	435 mm
Height	175 mm
Weight	18500 g
