15
En
Connections
Connections
Strip 15 to 20 mm of insulation from the ends of the speaker cables, and twist the bare wires
tightly, as shown.
Note
Make sure that the wires do not touch metal parts on the back panel or elsewhere.
Y plugs cannot be connected.
Two sets of speakers (Speakers A and Speakers B) can be connected to the integrated amplifier. You can
select which speakers to output audio to when listening to music.
You can also output audio from both sets of speakers.
If you use Speakers A or Speakers B, make sure to use speakers with an impedance of 4 to 16 ohms. If
you use Speakers A and Speakers B, make sure to use speakers with an impedance of 8 to 16 ohms.
Connecting speakers with an impedance less than 8 ohms may cause the protection circuit to activate.
Don’t connect more than one speaker wire to a single speaker terminal. Doing so could damage the
integrated amplifier or cause it to malfunction.
When using only one speaker, or when playing back monaural audio, don’t connect a single speaker to
both the left and right speaker terminals.
Pay close attention to speaker wiring polarity. In other words, connect positive (+) terminals only to
positive (+) terminals, and negative (–) terminals only to negative (–) terminals. If you get them the
wrong way around, the sound will be out of phase and will feel unnatural.
Be careful not to short the positive and negative wires. Doing so may damage the integrated amplifier.
Make sure the metal core of the wire does not have contact with the integrated amplifier’s rear panel.
Doing so may damage the integrated amplifier.

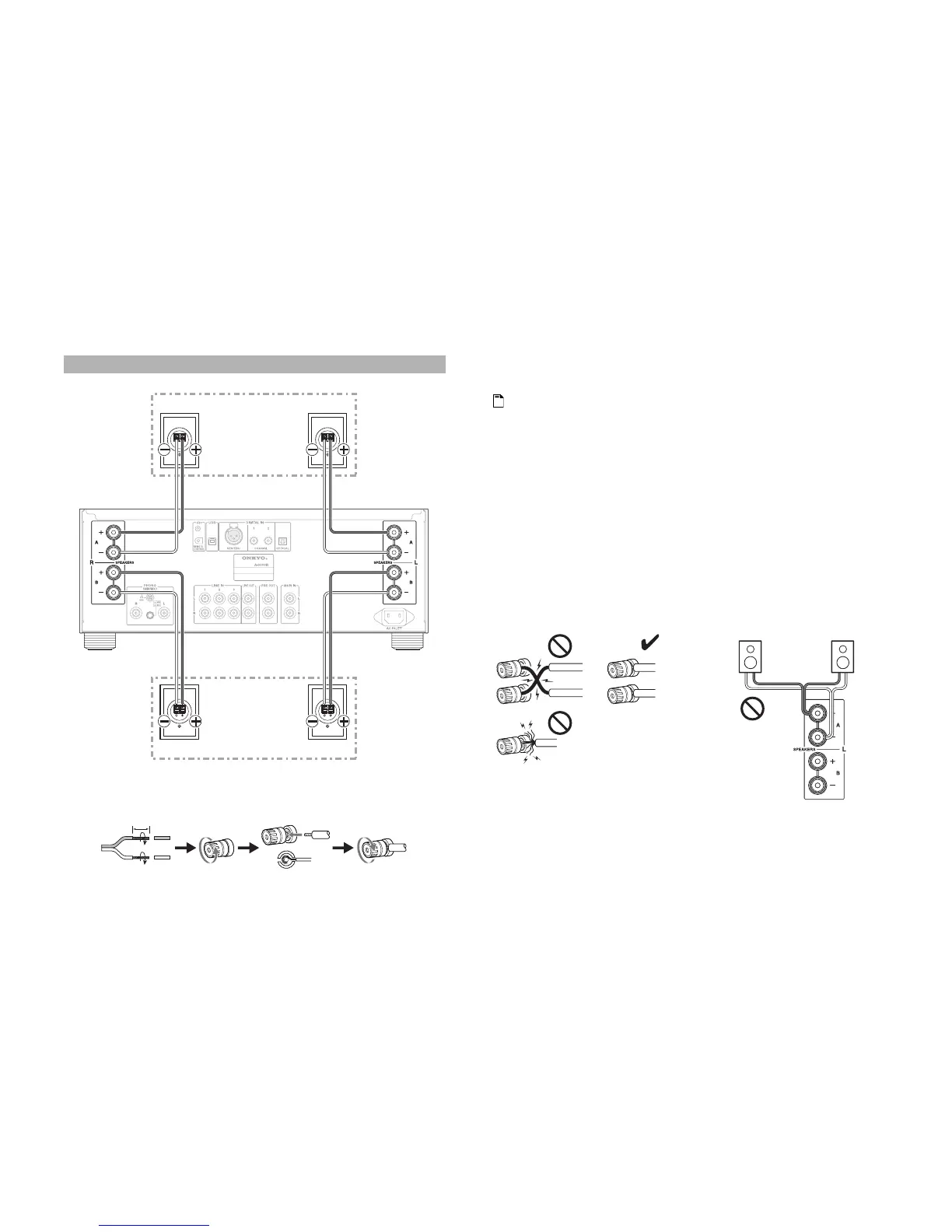

Connecting Your Speakers
Speakers A
Speakers B
Right Left
Right
Integrated Amplifier
A-9000R
Left
15 to 20 mm

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Onkyo A-9000R and is the answer not in the manual?

Onkyo A-9000R Specifications

General IconGeneral
Output level0.001 mV
Damping factor130
Amplifier class-
Frequency range1 - 250000 Hz
Output impedance300 Ω
Input sensitivity150 mV
Audio output channels- channels
Peak power per channel140 W
Signal-to-Noise Ratio (SNR)107 dB
Total Harmonic Distortion (THD)0.05 %
Dynamic power per channel (2 Ohm)310 W
Dynamic power per channel (3 Ohm)230 W
Dynamic power per channel (4 Ohm)180 W
Dynamic power per channel (8 Ohm)100 W
AC (power) inYes
Audio (L/R) in1
Speakers connectivity typeRCA
PurposeHome
Product colorSilver
Cables includedAC
Connectivity technologyWired
AC input voltage230 V
AC input frequency50 Hz
Power consumption (standby)0.2 W
Power consumption (typical)300 W
Package weight22500 g
Weight and Dimensions IconWeight and Dimensions
Width435 mm
Height175 mm
Weight18500 g
