-10-
5-3

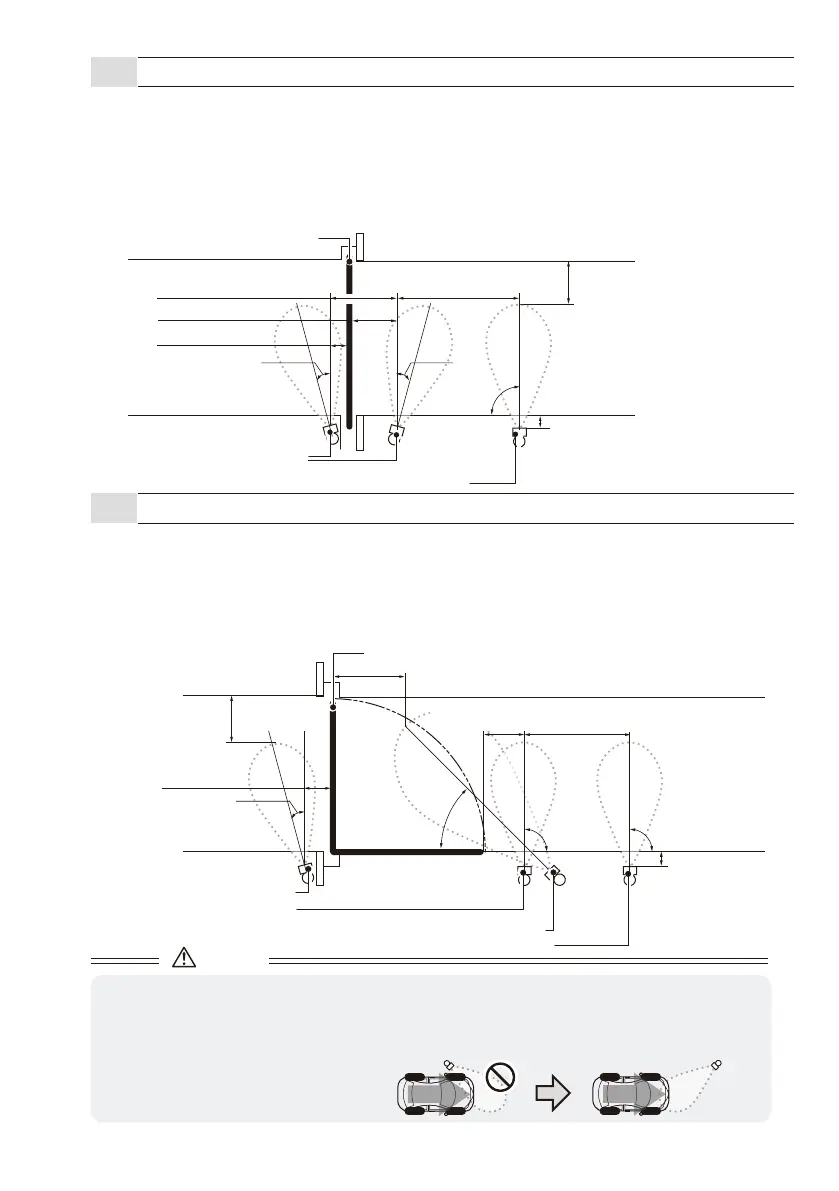

Sensor installation recommendations (for Slide gate)
6-4
5-3
Sensor installation recommendations (for Swing gate)
6-5
• When 45 degree setting is set, it may not detect vehicles moving away from the sensor because it is
more sensitive to approaching objects. Therefore, the sensor may not detect a vehice which is backing
up to the detection area.
Install the sensors with the layout shown below.
When the installation direction or installation height is improper, the sensor will not operate properly.
- The sensor angles shown below are for vehicles entering parallel to the drive way. The sensor angle should
match the angle of the vehicle (not the drive way).
Installation height : The bottom of the sensor is 500 mm (20in.) from the ground
*1
︓
Setting a distance greater than recommended may create non-detection area between the activation
and protection sensor.
Install the sensors with the layout shown below.
When the installation direction or installation height is improper, he sensor will not operate properly.
- The sensor angles shown below are for vehicles entering parallel to the drive way. The sensor angle should
match the angle of the vehicle (not the drive way).
Installation height : The bottom of the sensor is 500 mm (20in.) from the ground
*1
︓
Setting a distance greater than recommended may create non-detection area between the activation
and protection sensor.
Gate
15°
15°
As far as possible within 500mm (20in.)
3800mm(150in.) or less*1
Secure side
Public side
200
mm(8in.) or more
200
mm(8in.) or more
1500mm(60in.)
90°
800 - 1000
mm(30 - 40in.)
Application : Slide gate Protection 90 deg
Application : Slide gate Activation 90 deg
90°90°
Public side
200
mm(8in.)
or more
2800
mm(110in.)
or less*1
1500mm(60in.)
1500
ｍ
m
(60in.)
Application : Swing gate Activation 90 deg
Application : Swing gate Protection 90 deg
Application : Swing gate Protection 90 deg
Application : Swing gate Shadow 45 deg
Secure side
45°
200
m
ｍ(8in.)
or less
Gate
700
mm(28in.)
or more
15°
Caution
