Optex Virtual Loop - Close Range Sensitivity; Side Approach Detection; Side Approach Detection on; Vibration Sensitivity

-26-

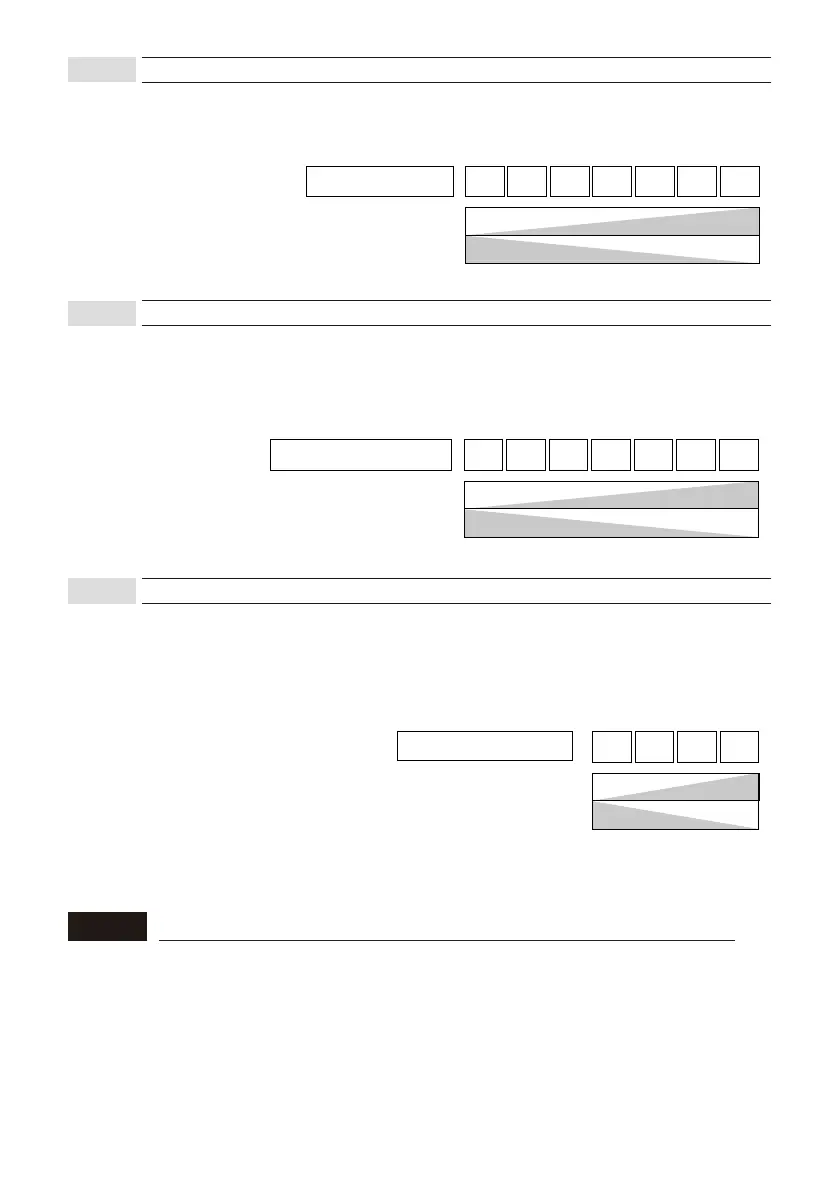

This parameter adjusts the sesitivity of close range 100-500mm (4-20 in.) from sensor when a
vehicle enters the detection area. The vehicle detection capability (close range) and the false
detection avoidance capability have the relationship shown in the figure below.
Close range sensitivity
LOW
Vehicle detection
capability (close range)
False detection
avoidance capability
HIGH
HIGH
LOW
１
2 3 4 5 6 7
This function could be used only for 90 degree setting. And it could enhance the sensitivity for a
vehicle which approaches from side. This setting is a duration when the sensitivity is enhanced.
The sensitivity enhanced time and the false detection avoidance capability have the relationship
shown in the figure below.
This may need to be changed if:
• This needs to be increased : Even though there is a vehicle, it is not kept detecting.
• This needs to be decreased : False detection due to rain or snow occurs or tailgating
happens a lot.
NOTE
8-3-3
Close range sensitivity
8-3-4
Side approach detection
This parameter adjusts the ability to kept detecting when a vehicle is detected.The capability to
keep detecting vehicles in the detection area and the capability to avoid false detection due to
rain, snow, tailgating and etc. have the relationship shown in the figure below.
Ingeneral, even with EV creating some vibration, so this function could enhance the sensitivity
for the vibration.
8-3-5
Vibration sensitivity
Vibration sensitivity
LOW
HIGH
HIGH
LOW
Off
Low Mid High
Vehicle detection
hold capability
Rain/snow/tailgating false
detection avoidance capability
Side approach detection
LOWSensitivity enhanced time
False detection
avoidance capability
[s]
HIGH
HIGH
LOW
OFF
2.5 5 10 30 60 120
