Optex Virtual Loop - Sensor Installation Recommendations (for Barrier)

-9-

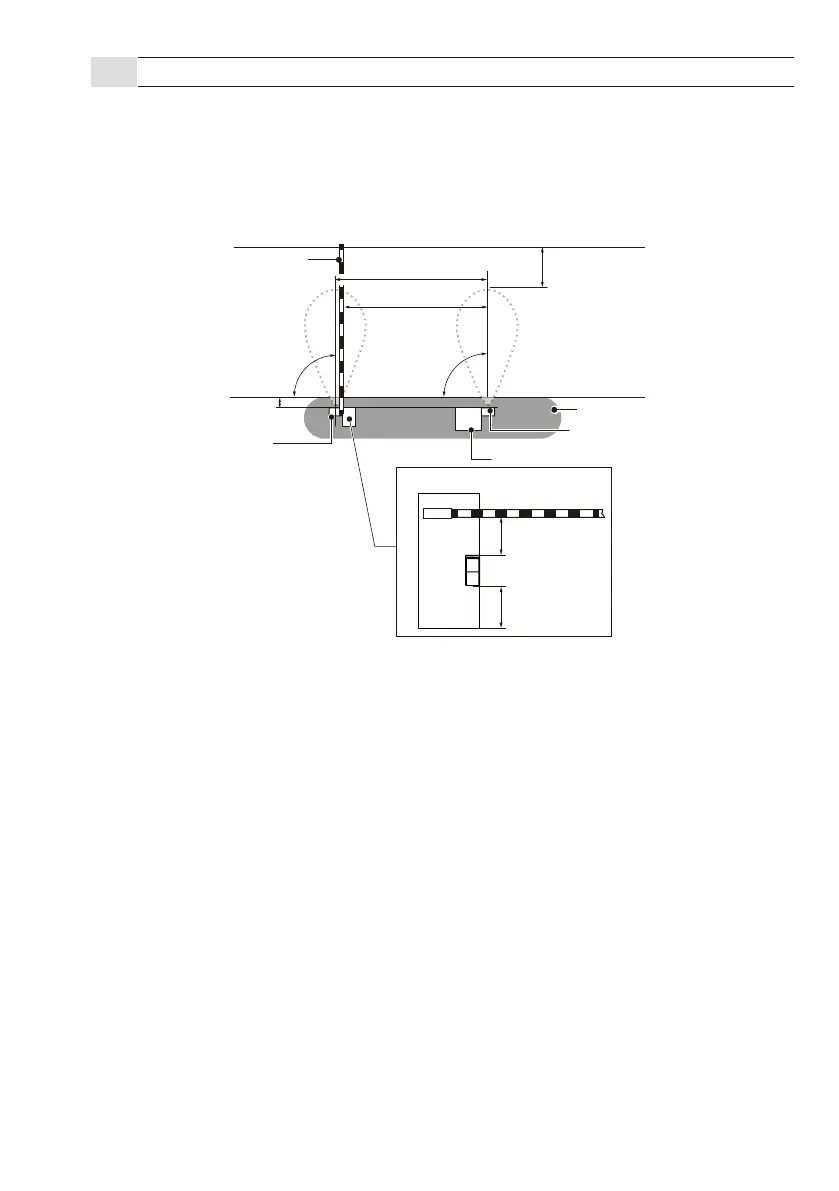

Install the sensors with the layout shown below.
When the installation direction or installation height is inappropriate, the sensor does not operate properly.
- The sensor angles shown below are for vehicles enter parallel to the drive way. The sensor angle should
match the angle of the vehicle (not the driveway).
Installation height : The bottom of the sensor is 500 mm (20in.) from the ground
*1 : Install the sensor to be flush with the side surface of the driveway of barrier operator or ticket vending /
payment machine.
6-3
Sensor installation recommendations (for Barrier)
Application : Barrier Activation 90 deg
90°
1500
ｍｍ
(60in.)
90°
Application : Barrier Protection 90 deg
As far as possible
within 500mm (20in.)
*1
2800mm(110in.)
or less
1000mm(40in,) or more
Island
Ticket vending / Payment Machine
Barrier
300mm(12in.) or more
500mm(20in.)
Side view
