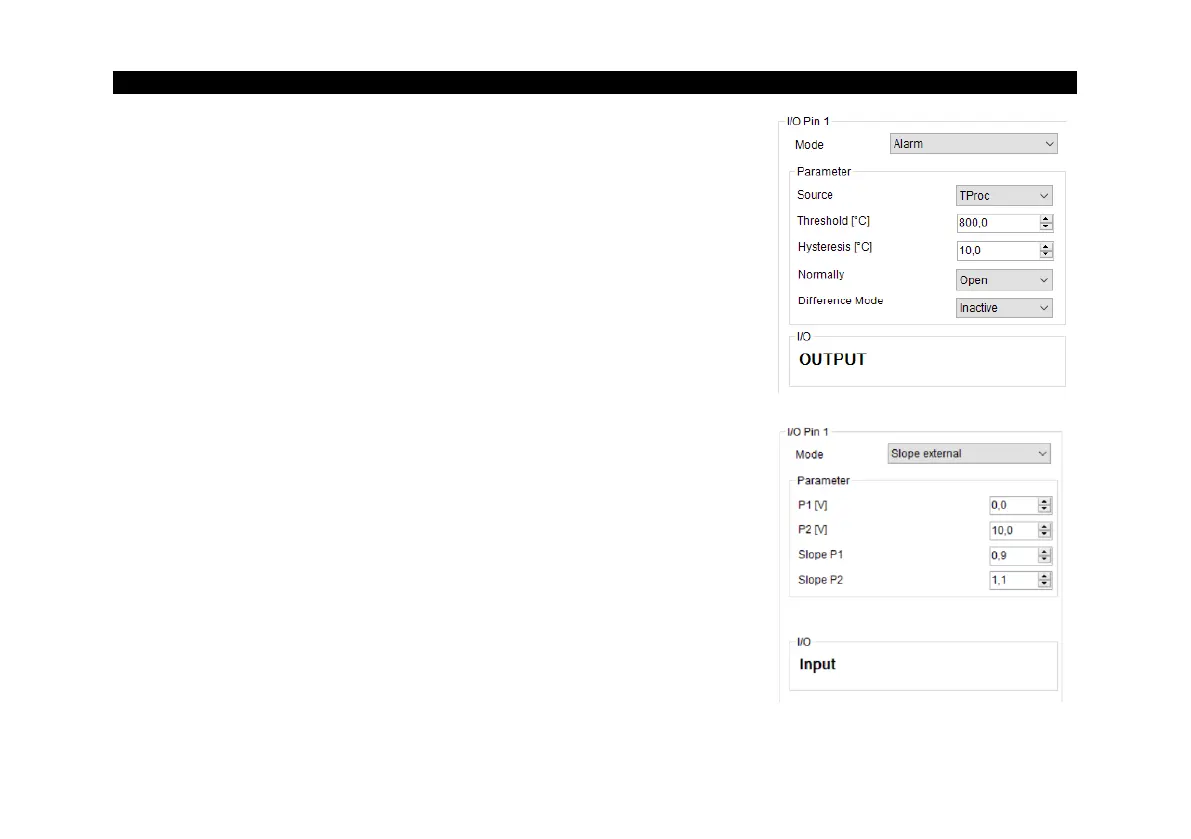

If you select the function Alarm the following signal sources can be
selected:
▪ TProcess
Process temperature
▪ TRatio
Ratio temperature
▪ T1
1 channel temperature
▪ T2
2 channel temperature
▪ Attenuation
Signal attenuation in %
▪ TDet
Detector temperature
▪ TBox
Sensor temperature
The definition as Low or High alarm can be done by switching
between Normally: open and Normally: closed.
If you select the function Slope external or Emissivity external the
I/O pin is set as analog input. The scaling can be done using the
parameter fields P1/P2 and Slope P1/P2 / Epsilon P1/P2.
