Configure RAID in UEFI Boot Mode

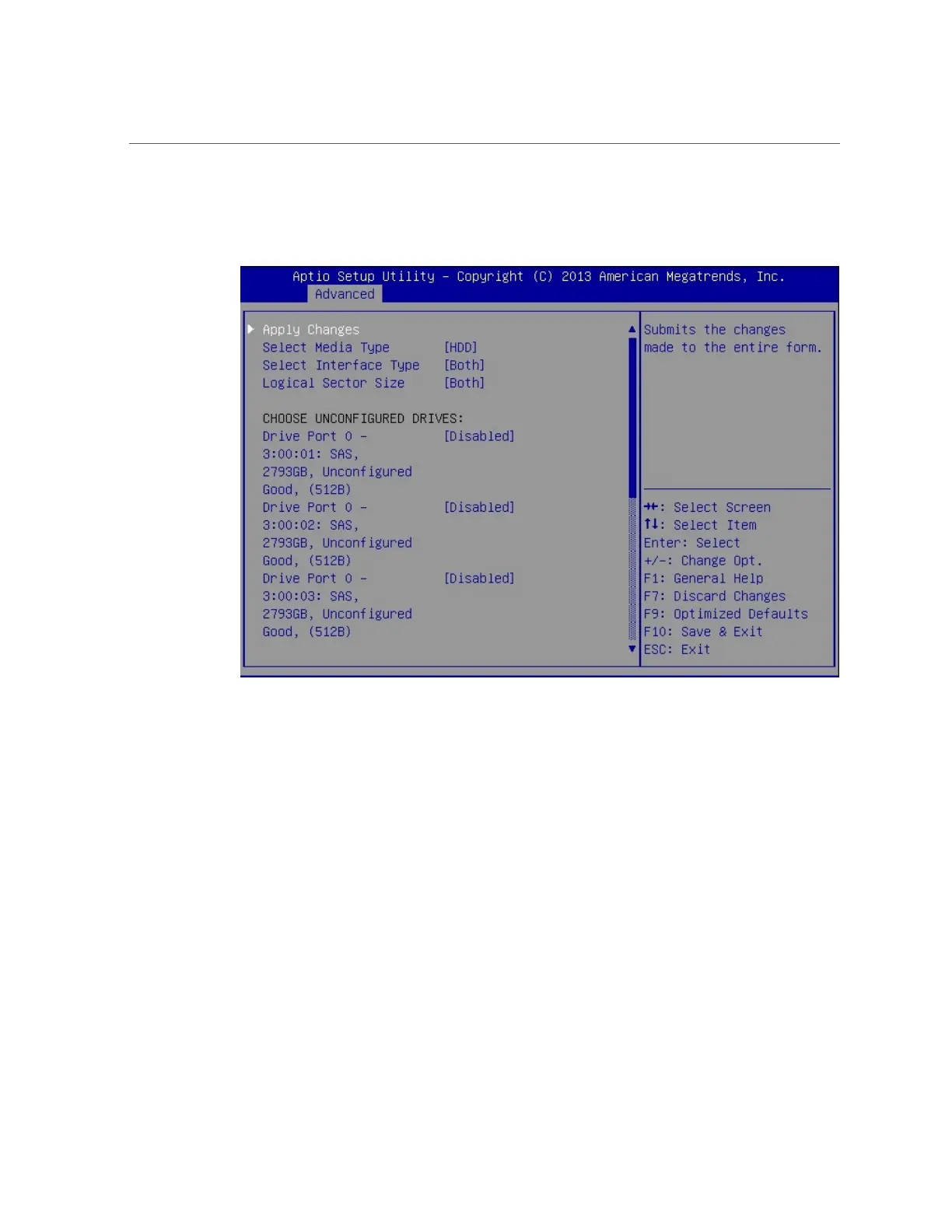

The Drive Selection screen appears.
1
1.
In the Drive Selection screen, select the media type, the interface type, and the
drives to be enabled in the RAID configuration.
12.
Select Apply Changes, and then press Enter
.
110
Oracle Server X6-2 Installation Guide • July 2020
109
111
