Oracle Server X6-2 User Manual

Front Panel Status Indicators, Connectors, and Drives
Feature Description
■ VMware ESXi
For a complete list of supported OS versions for your server, refer to the Oracle Server
X6-2 Product Notes at: https://www.oracle.com/goto/x6-2/docs
Related Information
■
“Front Panel Status Indicators, Connectors, and Drives” on page 29
■
“Back Panel Status Indicators, Connectors, and PCIe Slots” on page 30
Front Panel Status Indicators, Connectors, and Drives

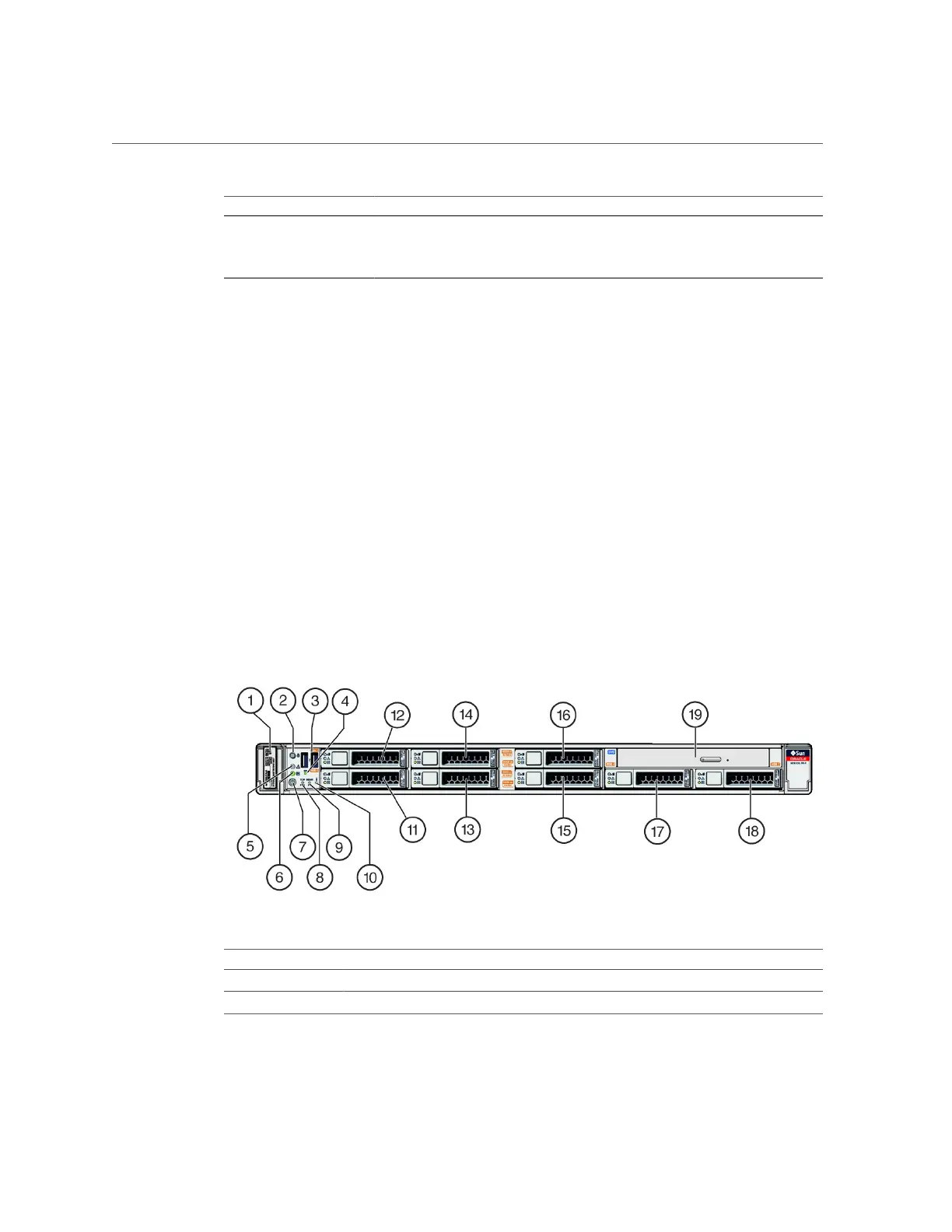

The following figure shows the status indicators (LEDs), connectors, and drives located on the
front panel of a Oracle Server X6-2 configured with eight 2.5-inch storage drives and a SATA
DVD drive.
For information about how to interpret the status indicators (LEDs), refer to the Oracle Server
X6-2 Service Manual.
Call Out Description
1 Product Serial Number (PSN) label and Radio Frequency Identification (RFID) tag
2 Locator LED/button: white
Server Features and Components 29
