Install the Cable Management Arm
c.
Then through the rear-most cable trough

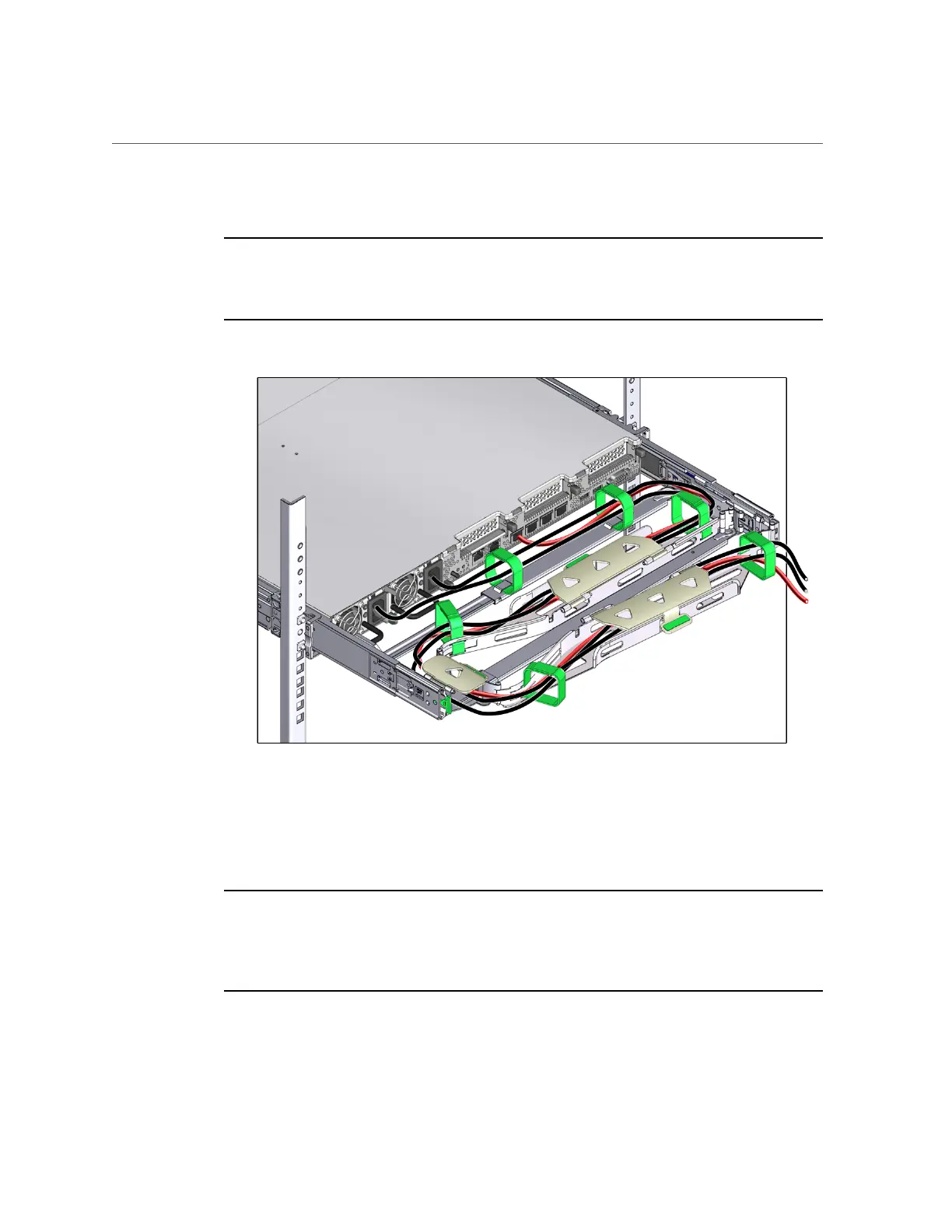

Note - When securing the cables with the Velcro straps located on the front slide bar, ensure
that the Velcro straps do not wrap around the bottom of the slide bar; otherwise, expansion and
contraction of the slide bar might be hindered when the server is extended from the rack and
returned to the rack.
16.
Ensure that the secured cables do no extend above the top or below the bottom
of the server to which they are attached; otherwise, the cables might snag on
other equipment installed in the rack when the server is extended from the rack
or returned to the rack.
Note - If necessary, bundle the cables with additional Velcro straps to ensure that they stay clear
of other equipment. If you need to install additional Velcro straps, wrap the straps around the
cables only, not around any of the CMA components; otherwise, expansion and contraction of
the CMA slide bars might be hindered when the server is extended from the rack and returned
to the rack.
Installing the Server Into a Rack 65
