Ormazabal ekor.rps - Page 114

IG-150-EN version 04; 03/10/16
114
Automation functions General instructions
ekor.rps

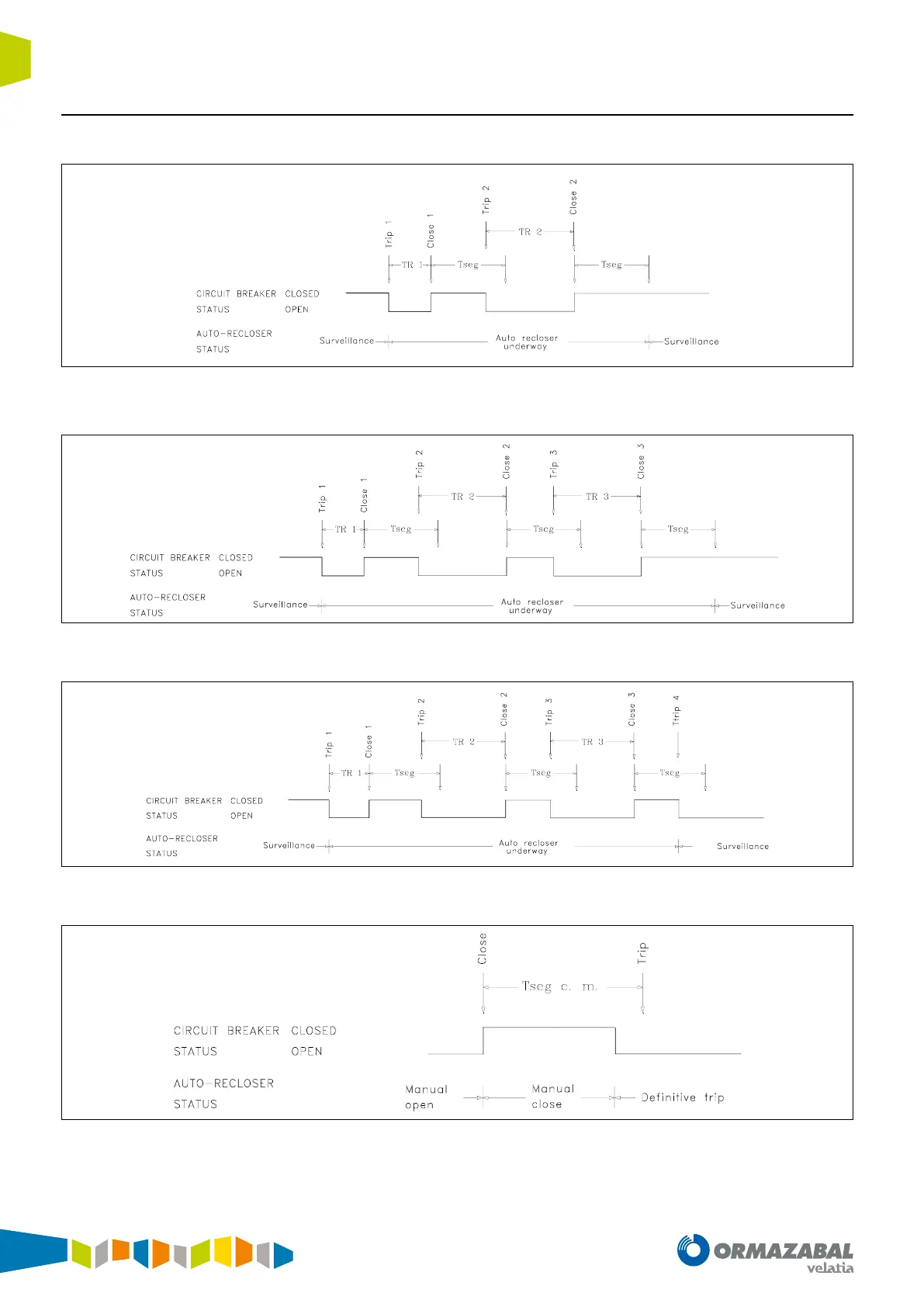

2. Second successful reclosing.
Figure 5.3. Second successful reclosing
3. Third successful reclosing.
Figure 5.4. Third successful reclosing
4. Moves onto a denitive trip after exhausting the programmed number of reclosings.
Figure 5.5. denitive trip number of reclosings
5. Moves onto denitive trip due to a trip during the reclaim time after a manual closing.
Figure 5.6. denitive trip after a manual closing
