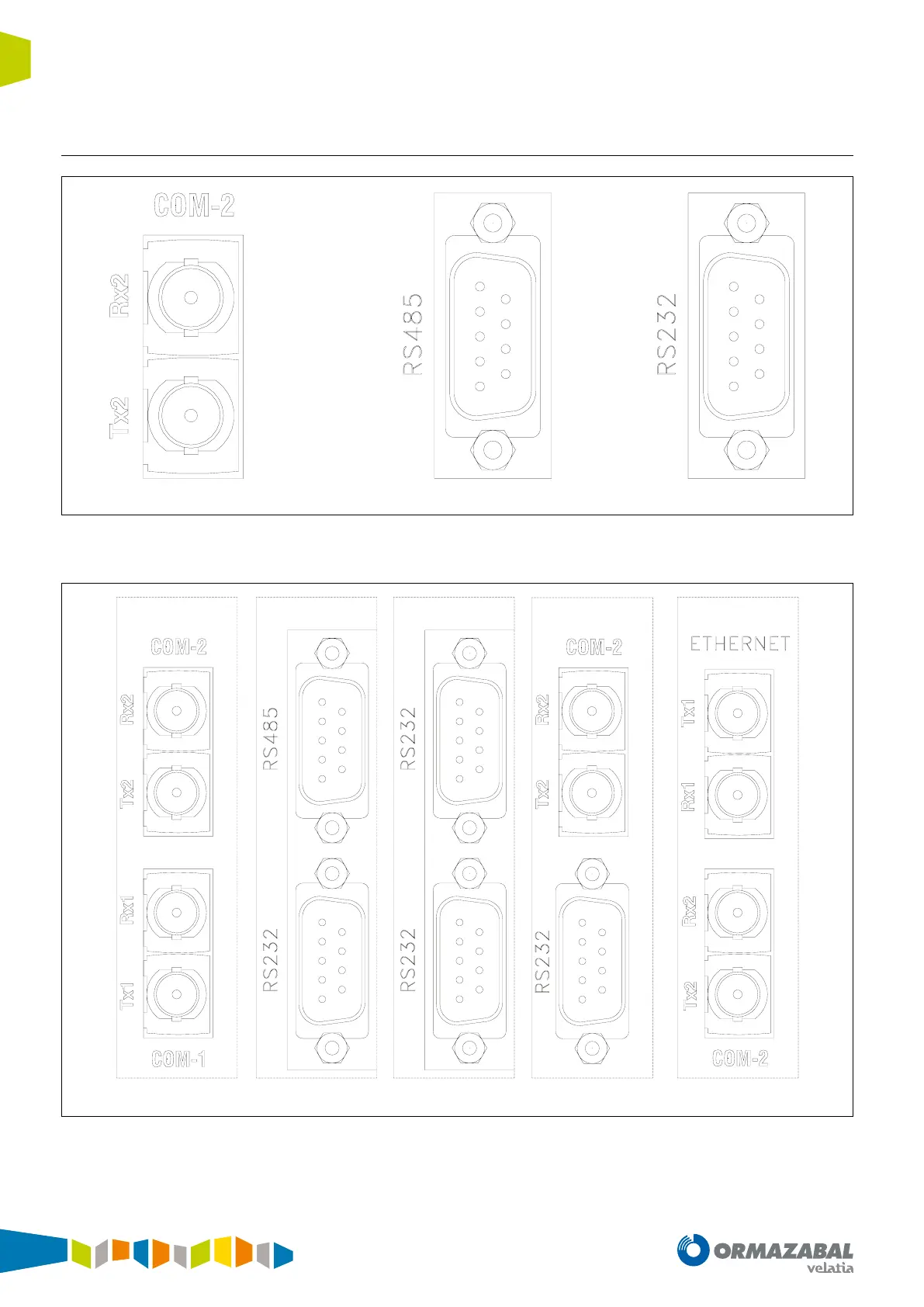

2.4. Options for rear communications ports
OF (glass or plastic) RS-485 RS-232
Figure 2.7. Single port
OF + OF RS-485+RS-232 RS-232+RS-232 OF+RS232 Ethernet OF + OF
Figure 2.8. Double port
