Ormazabal ekor.rps User Manual

IG-150-EN version 04; 03/10/16
41
General instructions
ekor.rps
Hardware
2.8. Technical characteristics
2.8.1. Power Supply
1. Models with 24–48V
dc
a. Operating range: 18up to60V
dc
2. Models with 125–220V
dc
a. Operating range: 86up to280V
dc
3. Consumption: 8W minimum
18W maximum
2.8.2. Output Contacts
Relays 1 to 6 and 8 to 13:
1. Carry: + 5 A up to + 25 °C
2. Make (0.5 s): 30 A
3. Breaking capacity (resistive load)
a. for 220 V
dc
: 0.4 A
b. for 125 V
dc
: 1 A
c. for 48 V
dc
: 3 A
4. Breaking capacity (L/R = 40 ms)
a. for 220 V
dc
: 0.2 A
b. for 125 V
dc
: 0.3 A
c. for 48 V
dc
: 0.5 A
Relays 7 to 14:
1. Carry: + 5 A up to + 25 °C
2. Make (0.5 s): 30 A
3. Breaking capacity ( resistive load)
a. for 220 V
dc
: 0.15 A
b. for 125 V
dc
: 0.4 A
c. for 48 V
dc
: 2 A
4. Breaking capacity (L/R = 40 ms)
a. for 125 V
dc
: 0.25 A
b. for 48 V
dc
: 0.5 A
2.8.3. Digital inputs (optoisolated)
1. Extended range:
High: operating range 86 up to 280 V
dc
(inactive below 60 V
dc
)
Low: operating range 18 up to 160 V
dc
(inactive below 13 V
dc
)
Consumption: <3 mA
They are single-directionals. In the interconnection diagrams
they are presented as follows:

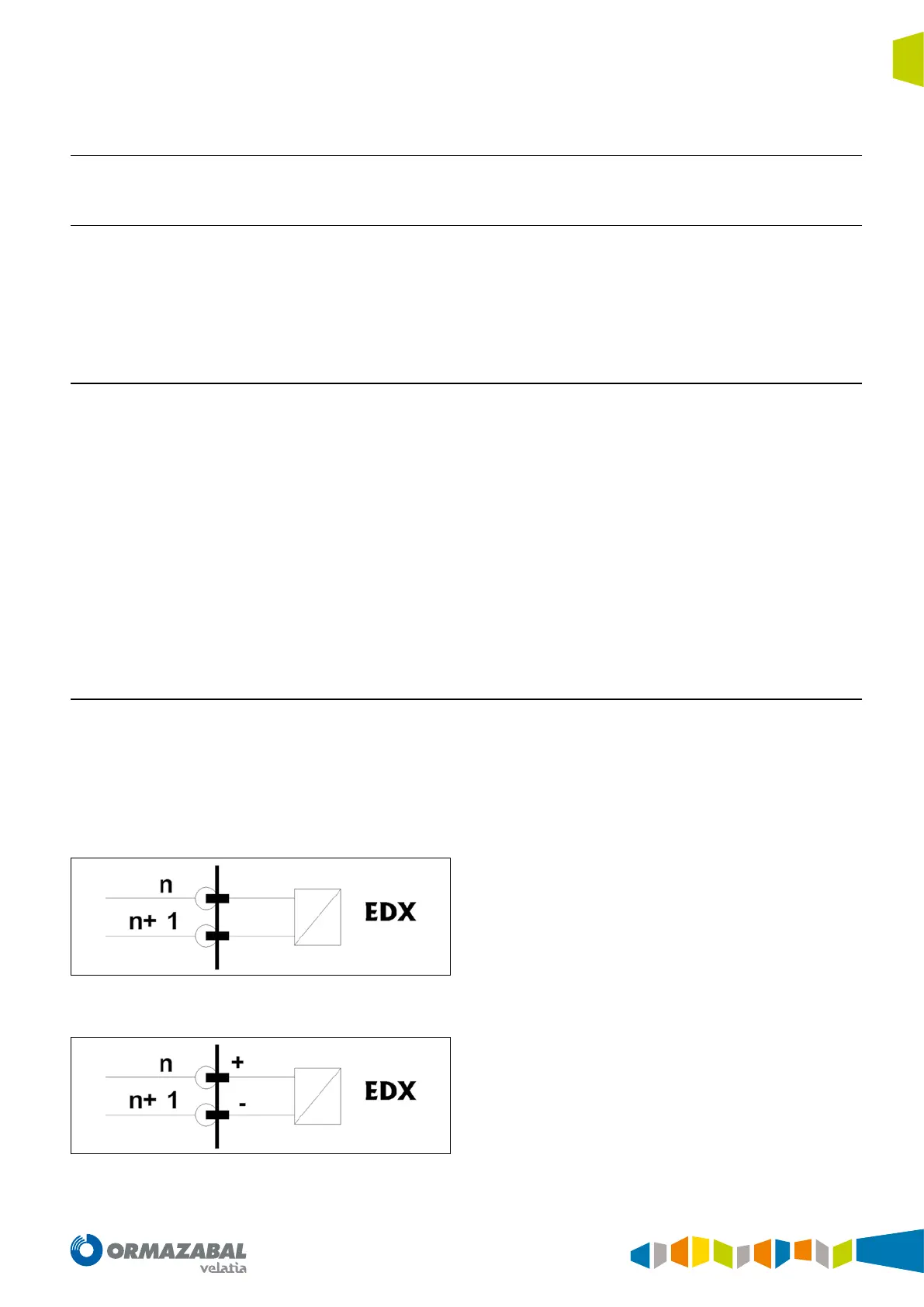

Figure 2.12. Interconnection diagrams
And the corresponding polarity is:
Figure 2.13. Polarity
2. Restricted range:
24 V
dc
: Operating range 18 up to 34 V
dc
(inactive below 15 V
dc
)
48 V
dc
: Operating range 36 up to 60 V
dc
(inactive below 26 V
dc
)
125 V
dc
: Operating range 85 up to 150 V
dc
(inactive below 60 V
dc
)
220 V
dc
: Operating range 65 up to 264 V
dc
(inactive below 110 V
dc
)
Consumption: ≤3 mA
They are two-directionals (they do not have polarity)
