General instructions
ekor.rps
Protection functions. Description and settings

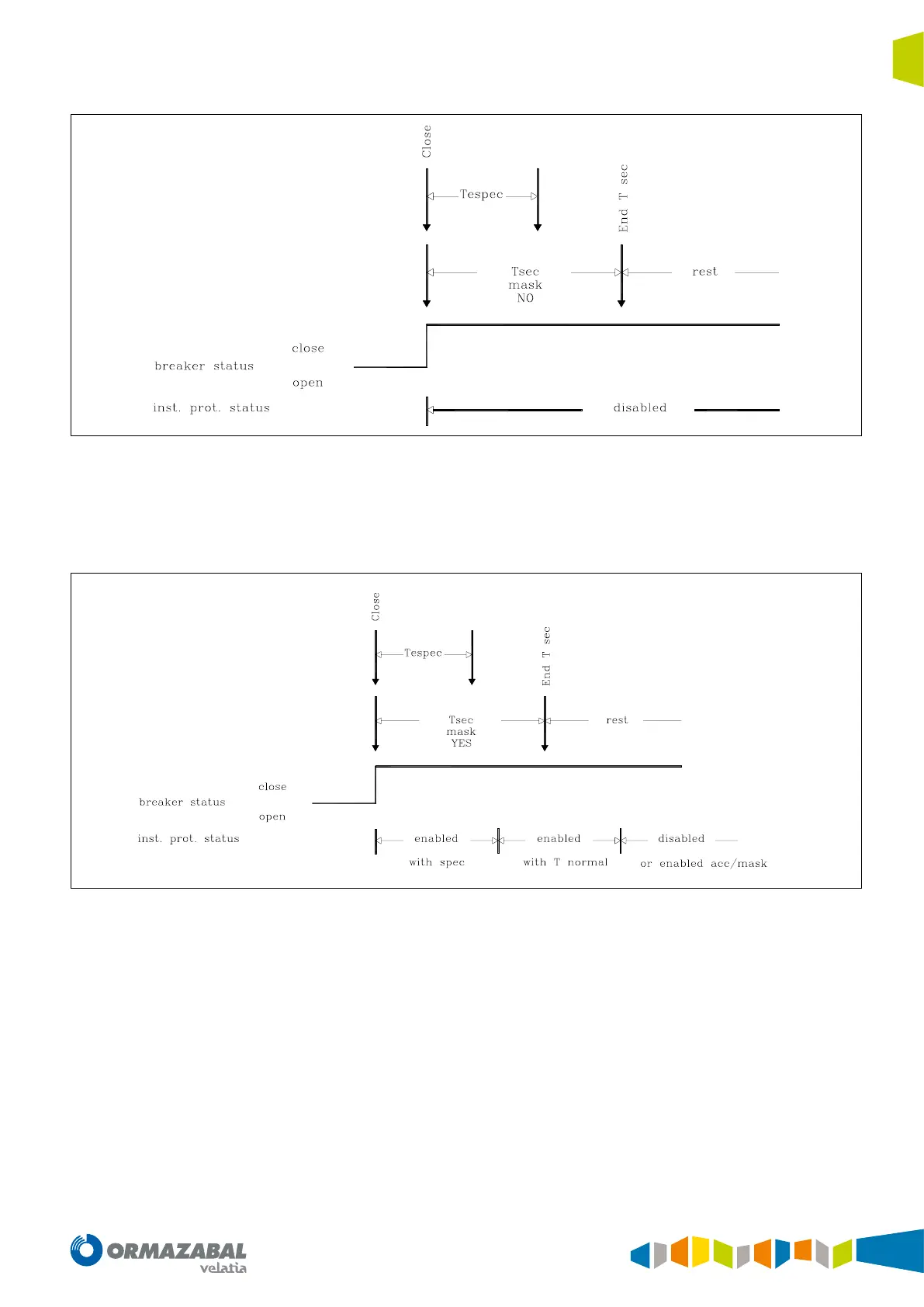

Figure 4.2. Option timing after closing
Option “Timing after closing”. After any closing (manual or
automatic), if the corresponding mask in the trip permission
screen is at YES, during “Special Operation Time”, the
instantaneous operates with the additional time “special
xed time” instead of using the normal “additional time. This
time can be 0, in order to act as a true instantaneous.
If the corresponding mask is at NO, the instantaneous is
disabled.
Figure 4.3. Option timing after reclosing
Option “Timing after reclosing 1”. After the rst reclosing, if
the corresponding in the trip permission screen is at YES,
during “special operation time”, the instantaneous operates
with the additional time “Special Fixed Time” instead of
using the normal “additional time.
If the corresponding mask is at “NO”, the instantaneous is
disabled.
In other closings, dierent to the rst reclosing, the unit
operates as it does now, that is, it depends on the masks
and when it is enabled, it is with the normal additional time.
