Orved IDEA 40 - Replacement of Pump Oil; Replacement of Pump Exhaust Filter

_______________________________________________________________________________________
ORVED S.P.A Rev.01 – 09/2019 – cod. 1500735-00EN – User Manual for IDEA vacuum packing machines Pag. 66 a 76
5)

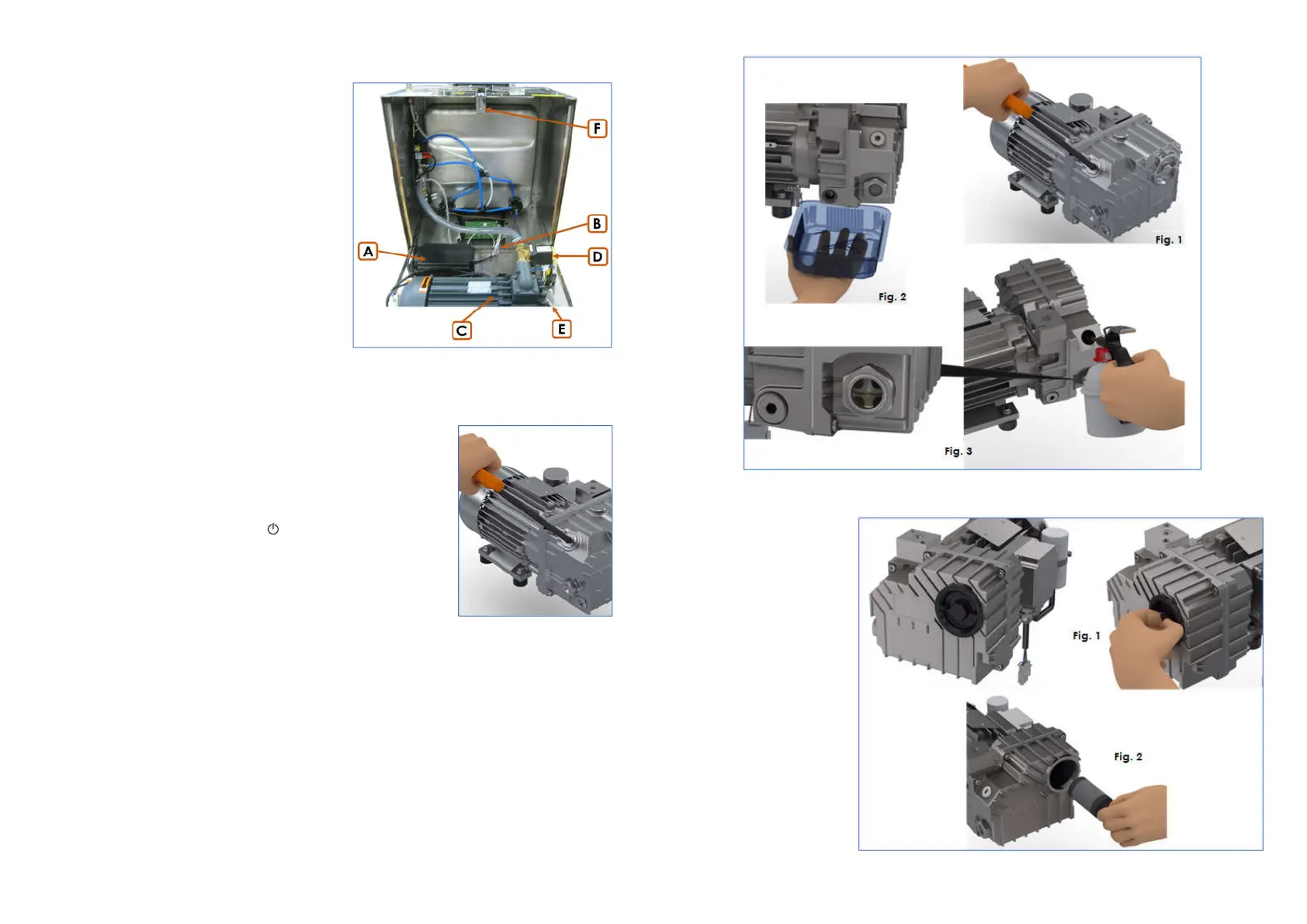

Location of the main components inside the machine:
A) Protective lid for power board
B) Flat connection cable, power board
- control board
C) Vacuum pump
D) Transformer
E) Power supply cable
F) Gas spring
6) To close, lower the casing on the base, making sure to verify the correct positioning of the machine body
as well as the position of the cables and pipes that could be cut or damaged by the machine panels.
17.4 REPLACEMENT OF PUMP OIL
1) Run the pump for at least least 10 minutes, to make the oil fluid:
- IDEA 30/40 and IDEA 31/41: select JAR function (pressing
 “+” / “-”“ buttons)
- IDEA 32 HiLine/42 HiLine: select JAR MAX function and run it few
times
2) Press STOP button to stop the pump.
3) Switch the machine off
- IDEA 30/40 e IDEA 31/41: press per 5 secondi
- IDEA 32 HiLine/42 HiLine: press STAND-BY
and remove the plug from the socket.
4) Remove the fillers from the vacuum chamber and lower the lid to the
resting position.
5) Open the machine body as described at §17.3.
6) Unscrew the oil filler cap – on the pump upper part – using a hexagonal
wrench (fig. 1).
7) Place a container large enough (0,5 L) close to the drainage hole (fig. 2).
Use the same wrench to undo the drain cap and leave the oil to flow into the container for about ten
minutes.
8) Refasten the drain cap at the bottom of the pump and refill the pump with oil up to the correct level: in
the sight-glass, the level of oil should be near the centreline (fig. 3).
9) Fasten the filing cap.
10) To close, lower the casing on the base, making sure to verify the correct positioning of the machine body
as well as the position of the cables and pipes that could be cut or damaged by the machine panels.
_______________________________________________________________________________________
ORVED S.P.A Rev.01 – 09/2019 – cod. 1500735-00EN – User Manual for IDEA vacuum packing machines Pag. 67 a 76
17.5 REPLACEMENT OF PUMP EXHAUST FILTEr
1) Follow the procedure
described at §17.3 to access
the pump.
2) Unscrew the exhaust filter
cap on the pump body,
using a wrench. Remove the
exhaust filter. (fig. 1-2).
3) Position the new filter with
the O-ring and use the same
wrench to screw the new
cap provided with the filter.
4) Down and close the
machine body, as described
at § 17.3.
