ORVED S.P.A Rev.01 – 09/2019 – cod. 1500735-00EN – User Manual for IDEA vacuum packing machines Pag. 70 a 76
7) Position the new
gas spring,
inserting the pin
and locking it in
place with the
previously
removed snap ring.
8) Reposition the rear part, pushing it downwards.
_______________________________________________________________________________________
ORVED S.P.A Rev.01 – 09/2019 – cod. 1500735-00EN – User Manual for IDEA vacuum packing machines Pag. 71 a 76

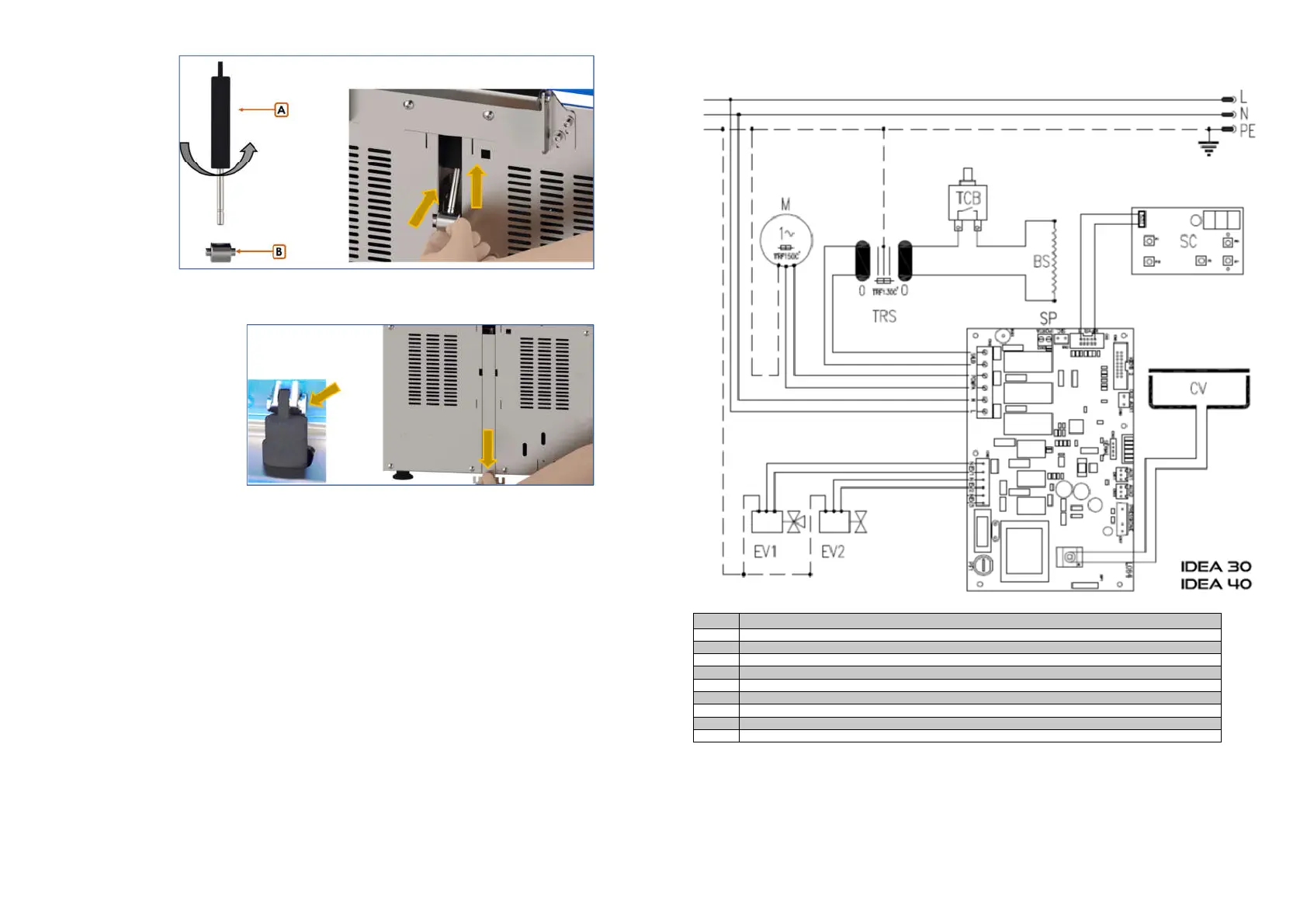

18 WIRING DIAGRAM
18.1 idea 30 – idea 40
REF. DESCRIPTION
TRS SEALING TRANSFORMER
BS SEALING BAR
M VACUUM PUMP 230V AC
EV1 3 WAY SOLENOID VALVE, 230V AC, SEALING BAR ACTIVATION
EV2 2 WAY SOLENOID VALVE, 230V AC, AIR RETURN
SC
COMMAND BOARD N059
CV VACUUM CHAMBER
SP POWER BOARD L084 230V AC
TCB THERMAL CIRCUIT BREAKER
