Orved IDEA 40 - Idea 31 - Idea 41; Idea 32 Hi-Line - Idea 42 Hi-Line

_______________________________________________________________________________________
ORVED S.P.A Rev.01 – 09/2019 – cod. 1500735-00EN – User Manual for IDEA vacuum packing machines Pag. 72 a 76

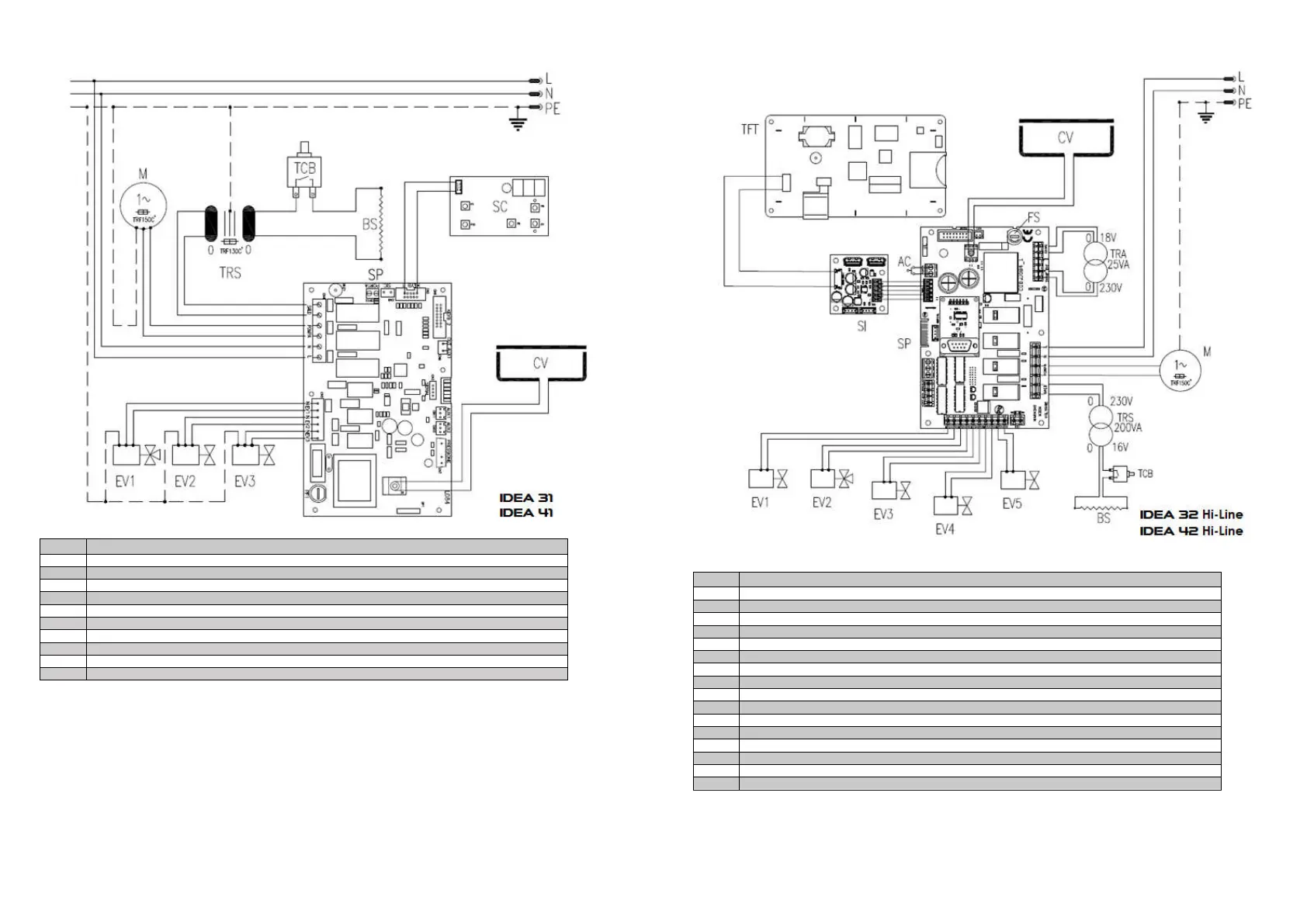

18.2 idea 31 - idea 41
REF. DESCRIPTION
TRS SEALING TRANSFORMER
BS SEALING BAR
M VACUUM PUMP 230V AC
EV1 3 WAY SOLENOID VALVE, 230V AC, SEALING BAR ACTIVATION
EV2 2 WAY SOLENOID VALVE, 230V AC, AIR RETURN
EV3 2 WAY SOLENOID VALVE, GAS
SC COMMAND BOARD N059
CV VACUUM CHAMBER
SP POWER BOARD L084 230V AC
TCB THERMAL CIRCUIT BREAKER
_______________________________________________________________________________________
ORVED S.P.A Rev.01 – 09/2019 – cod. 1500735-00EN – User Manual for IDEA vacuum packing machines Pag. 73 a 76
18.3 idea 32
Hi-Line
– idea 42
Hi-Line
REF. DESCRIPTION
TRA MAIN TRANSFORER
TRS SEALING TRANSFORMER
BS SEALING BAR
M VACUUM PUMP
EV1 2 WAY SOLENOID VALVE, SOFTAIR
EV2 3 WAY SOLENOID VALVE, SEALING BAR ACTIVATION
EV3 2 WAY SOLENOID VALVE, GAS
EV4 2 WAY SOLENOID VALVE, AIR RETURN TO VACUUM CHAMBER
EV5 2 WAY SOLENOID VALVE, SUCTION VALVE
TFT TFT DISPLAY
SI INTERFACE UNIT U019
SP POWER BOARD U084
CV VACUUM CHAMBER
TCB THERMAL CIRCUIT BREAKER
AC CYCLE STARTUP
FS T 6,3A FUSE
