Section 2 Installation
2 - 12
May 1992
MX-5050 Operation and Maintenance Manual
❏ CONTROL PCB Assembly Rotation
Follow the steps below when adjusting the CONTROL PCB Assembly and
internal parts of the MKIV-2.
1. Turn off the machine. Lay the machine on its side.
2. Remove the Bottom Panel by removing the screws holding it.
3. Loosen the two screws holding the Heat Sink on the Control PCB Assembly.
Rotate the CONTROL PCB Assembly.
4. Depending on the parts to be adjusted, the side panel may also need to be
removed.
CONTROL PCB
REAR PANEL

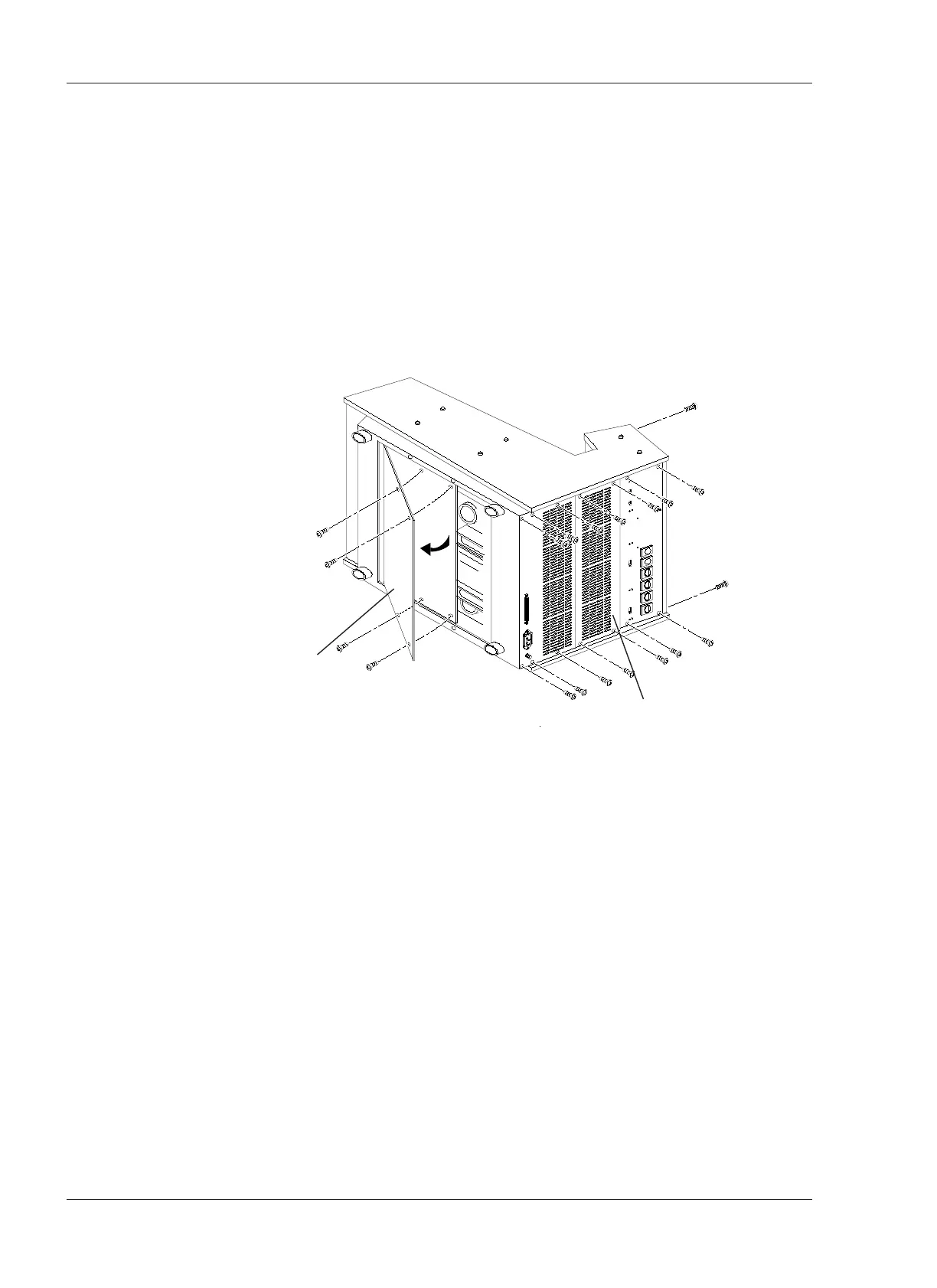

Figure 2-9
CONTROL PCB Assembly Rotation (MK
IV
-2)
