OTARI MX-5050 - Audio Signal Connections

MX-5050 Operation and Maintenance Manual
May 1992
Section 2 Installation
2 - 3
2.2 Audio Signal Connection
2.2.1 Audio Connectors
The input to the machine is transformerless and balanced with an input
impedance of 10 kΩ. The input level is fixed to +4dBu.
The output from the machine is transformerless and balanced. The nominal
output level is selected from +4 dBu or -16 dBu with the switch on the rear
panel. The output level is set to +4 dBu at the factory.
The microphone input is balanced with an input impedance of 10 kΩ. Input
level can be attenuated by 20 dB with the attenuation switch on the rear
panel.

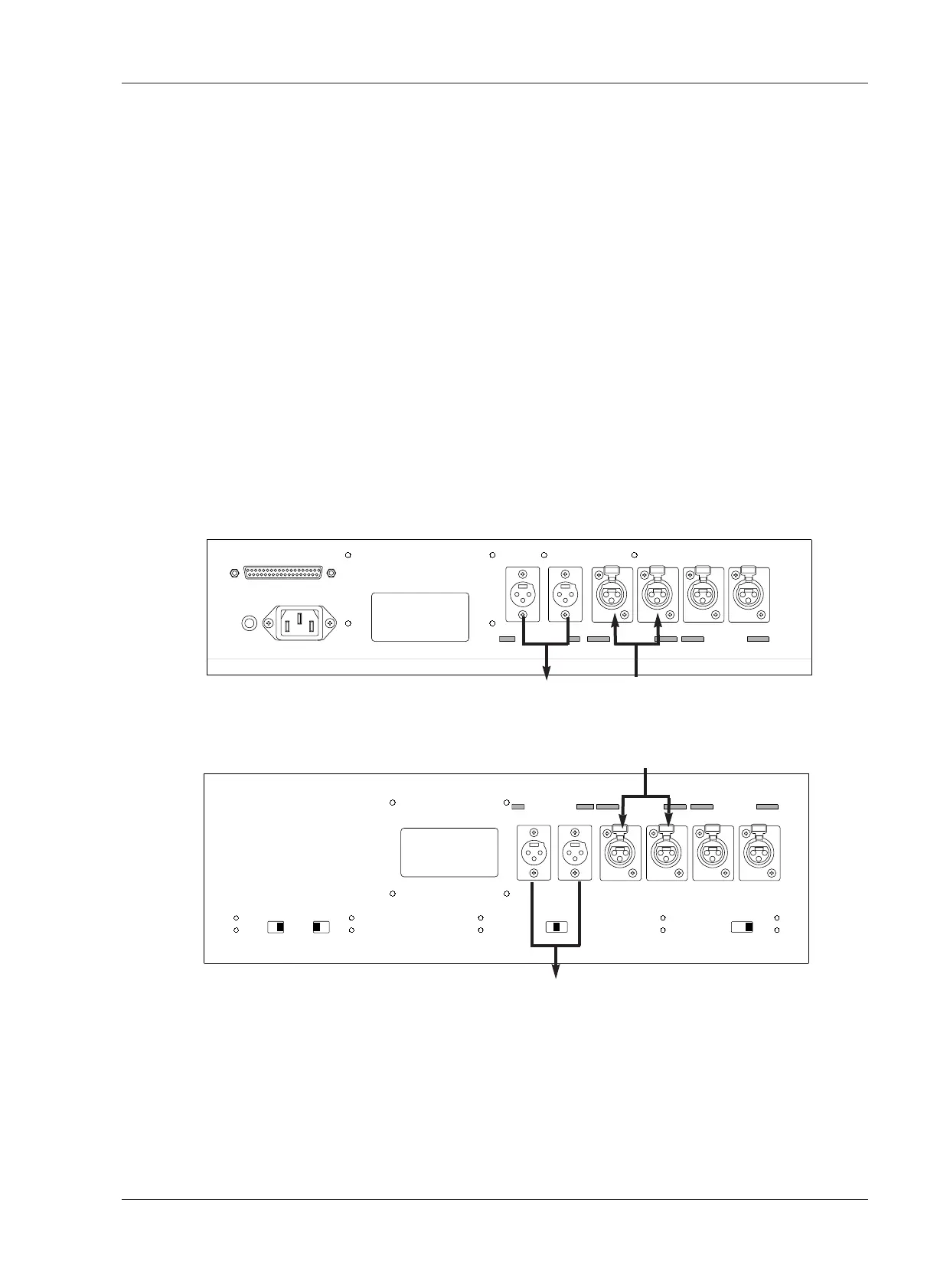

The connections to the Input/Output connectors are as shown in Figure 2-1.
LINE INPUTLINE OUTPUT
CH 2CH 1 CH 1CH 2CH 1
CH 2
MIC INPUT
MIC ATTENUATOR
OdB-2OdB OFF
REF FLUX
LOW MID HIGH
EQUALIZATION
IEC NAB
OUTPUT LEVEL
LOW HIGH
MK IV -2
INPUT
OUTPUT
PARALLEL I/O
GROUND POWER
LINE INPUTLINE OUTPUT
CH 2CH 1
CH 1CH 2CH 1
CH 2
MIC INPUT
B III
OUTPUT
INPUT
Figure 2-1
Input/Output Connectors
