Section 6 Transport Adjustment and Parts Replacement
6 - 4
May 1992
MX-5050 Operation and Maintenance Manual
6.3 Tape Lifter Adjustment
1. Thread the machine with tape.
2. Check the gap between tape and the lifters in Stop mode. If the gap is 1 ~ 2
mm, then the following adjustment is not necessary. If the gap is out of this
range, then perform the following adjustment.
3. Remove the reels on the transport panel. Referring to § 2.4, open the rear
panel.
4. Adjust the Lifter Stopper position by loosening the screws on the Lifter
Stopper so that the appropriate gap is obtained. Refer to Figure 6-3.
5. Close the rear panel.
6. Confirm that the tape does not touch the head when in Fast Wind mode.
7. If the tape touches the head, move the solenoid backward by loosening the
screws holding the Lifter Solenoid Bracket. Refer to Figure 6-3.

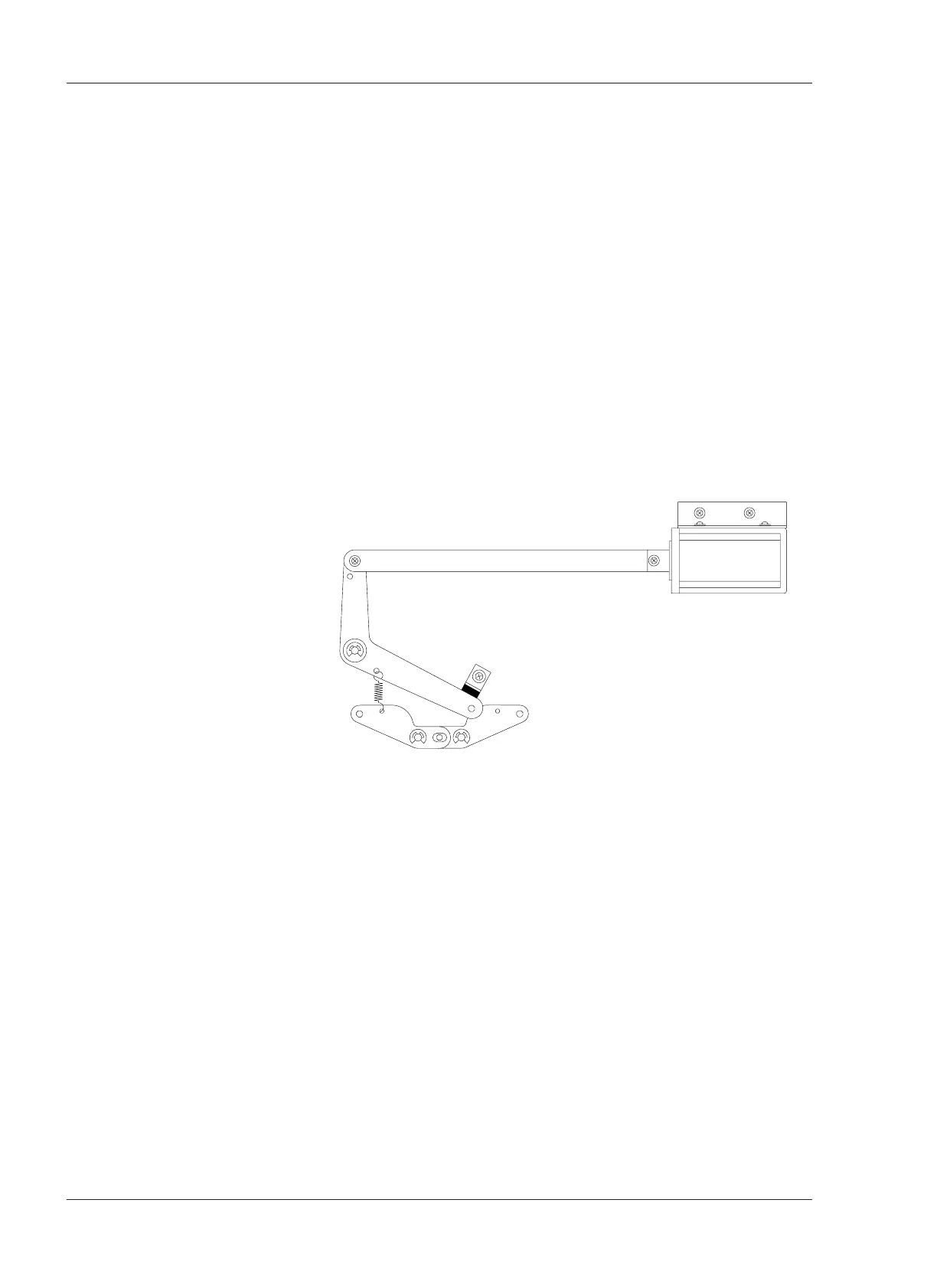

Figure 6-3
Tape Lifter Adjustment
