MX-5050 Operation and Maintenance Manual
May 1992
Section 6 Transport Adjustment and Parts Replacement
6 - 9
6.7 Reel Table Height Adjustment
The Reel Table may be detached from the machine by removing the three
cross-recessed screws accessible from the side of the transport.
1. Remove the side panel by removing the screws on the panel.
2. Loosen the height adjustment screws (hex socket head screws holding the
Reel Table shaft) and adjust the height of the table. While holding the table at
the appropriate height, tighten the adjustment screws.
3. Set the Reel onto the Reel Table. Make sure that the Reel Flange does not
touch the transport panel.
4. Mount the side panels to the machine.

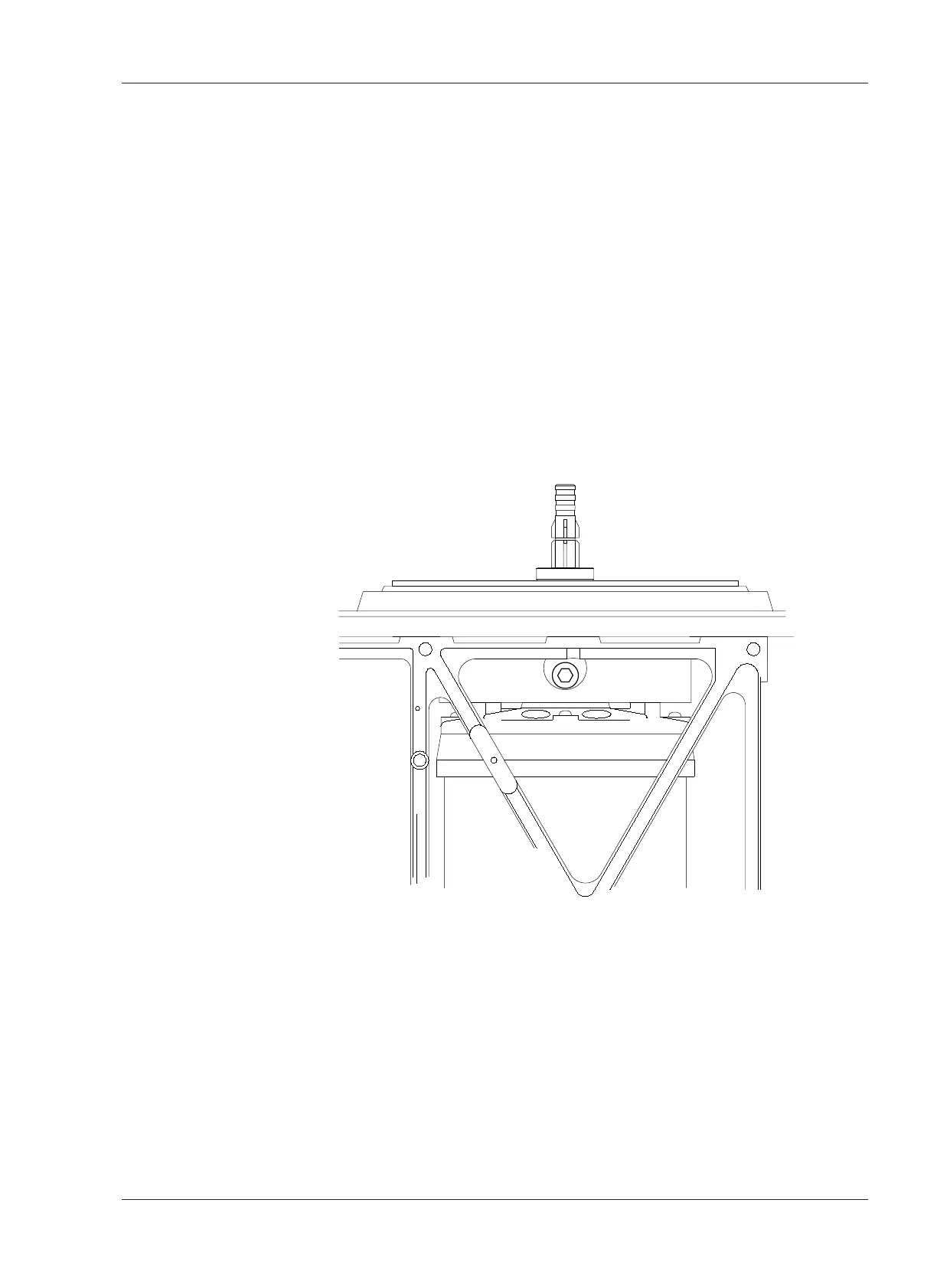

Figure 6-8
Reel Table Height Adjustment
