Section 3 Controls and Indicators
3 - 9
3.6 Audio Connector Panel
PARALLEL I/O
GROUND POWER
LINE INPUTLINE OUTPUT
CH 2CH 1
CH 1CH 2CH 1
CH 2
MIC INPUT
LOW MID HIGH
IEC NAB
LOW HIGH
OUTPUT LEVEL EQUALIZATION REF FLUX
MIC ATTENUATOR
OdB -2OdB OFF
1 2 3
4
5
6
7
8 9
10
PARALLEL I/O
GROUND POWER
LINE INPUTLINE OUTPUT
CH 2CH 1
CH 1CH 2CH 1
CH 2
MIC INPUT
LOW MID HIGH
IEC NAB
LOW HIGH
OUTPUT LEVEL EQUALIZATION REF FLUX
MIC ATTENUATOR
OdB -2OdB OFF
1. Line Output Connector
2. Line Input Connector
3. Mic Input Connector
4. Mic Attenuator Switch
5. REF FLUX Switch
6. Equalizer Switch
7. Output Level Switch
8. Ground Terminal
9. Parallel I/O Connector
10. Power Connector

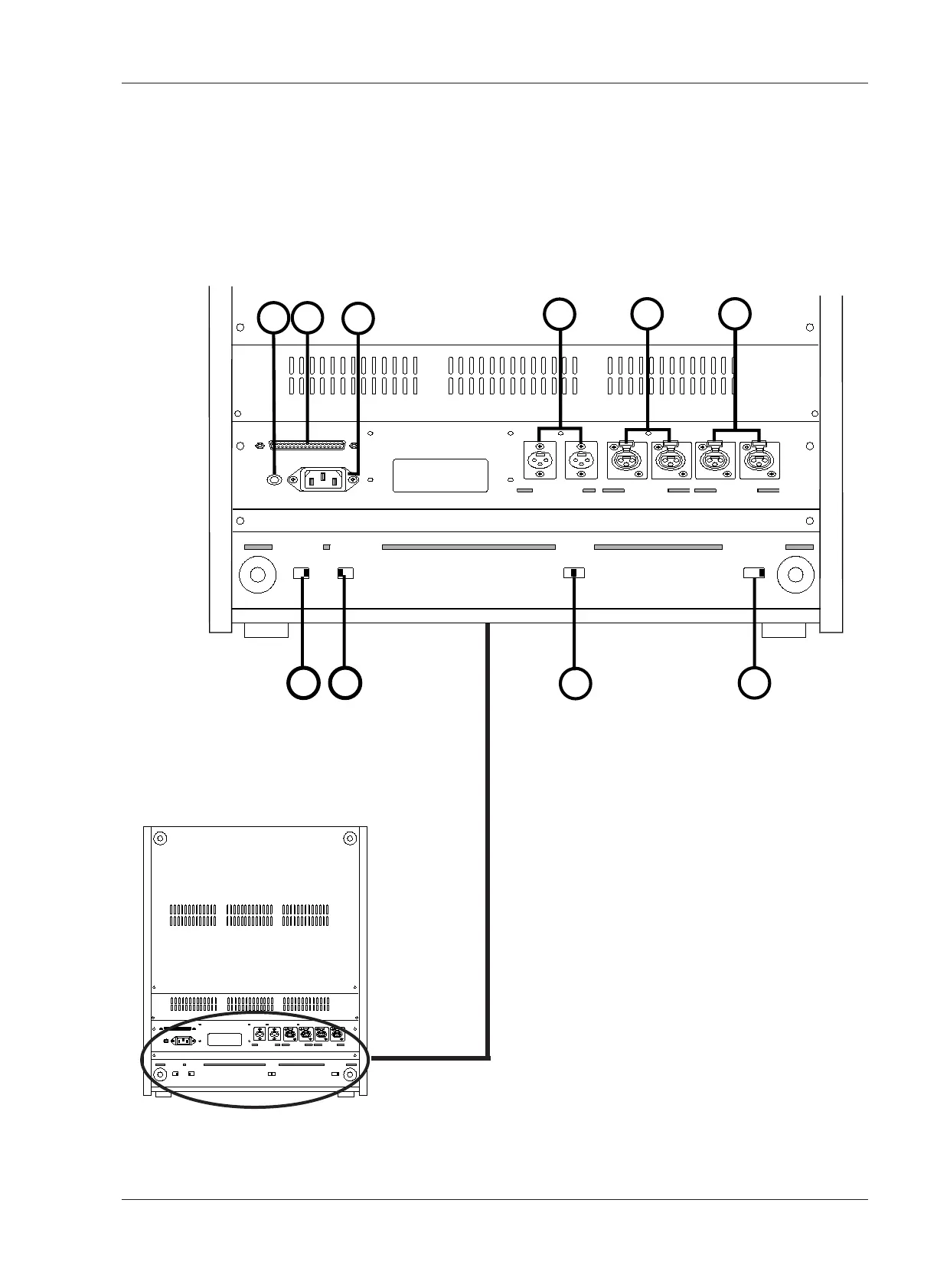

Figure 3-5
Audio Connector Panel (BIII)
