OTARI MX-5050 - Switch Position Adjustments

MX-5050 Operation and Maintenance Manual
May 1992
Section 2 Installation
2 - 5
2.3 Switch Position Adjustment
If necessary, change the following switch settings on the rear panel before
operating the machine.
Function Switch Setting
MIC. Attenuator SW501 0dB/-20dB/OFF
REF FLUX SW502 H/M/L (320/250/185nWb/m)
EQ Setting SW503 NAB/IEC
Output Level Setting SW504 H: +4dBu, L: -16dBu
PARALLEL I/O
GROUND POWER
LINE INPUTLINE OUTPUT
CH 2CH 1
CH 1CH 2CH 1
CH 2
MIC INPUT
LOW MID HIGH
IEC NAB
LOW HIGH
OUTPUT LEVEL EQUALIZATION REF FLUX
MIC ATTENUATOR
OdB -2OdB OFF
LINE INPUTLINE OUTPUT
CH 2CH 1 CH 1CH 2CH 1
CH 2
MIC INPUT
MIC ATTENUATOR
OdB-2OdB OFF
REF FLUX
LOW MID HIGH
EQUALIZATION
IEC NAB
OUTPUT LEVEL
LOW HIGH

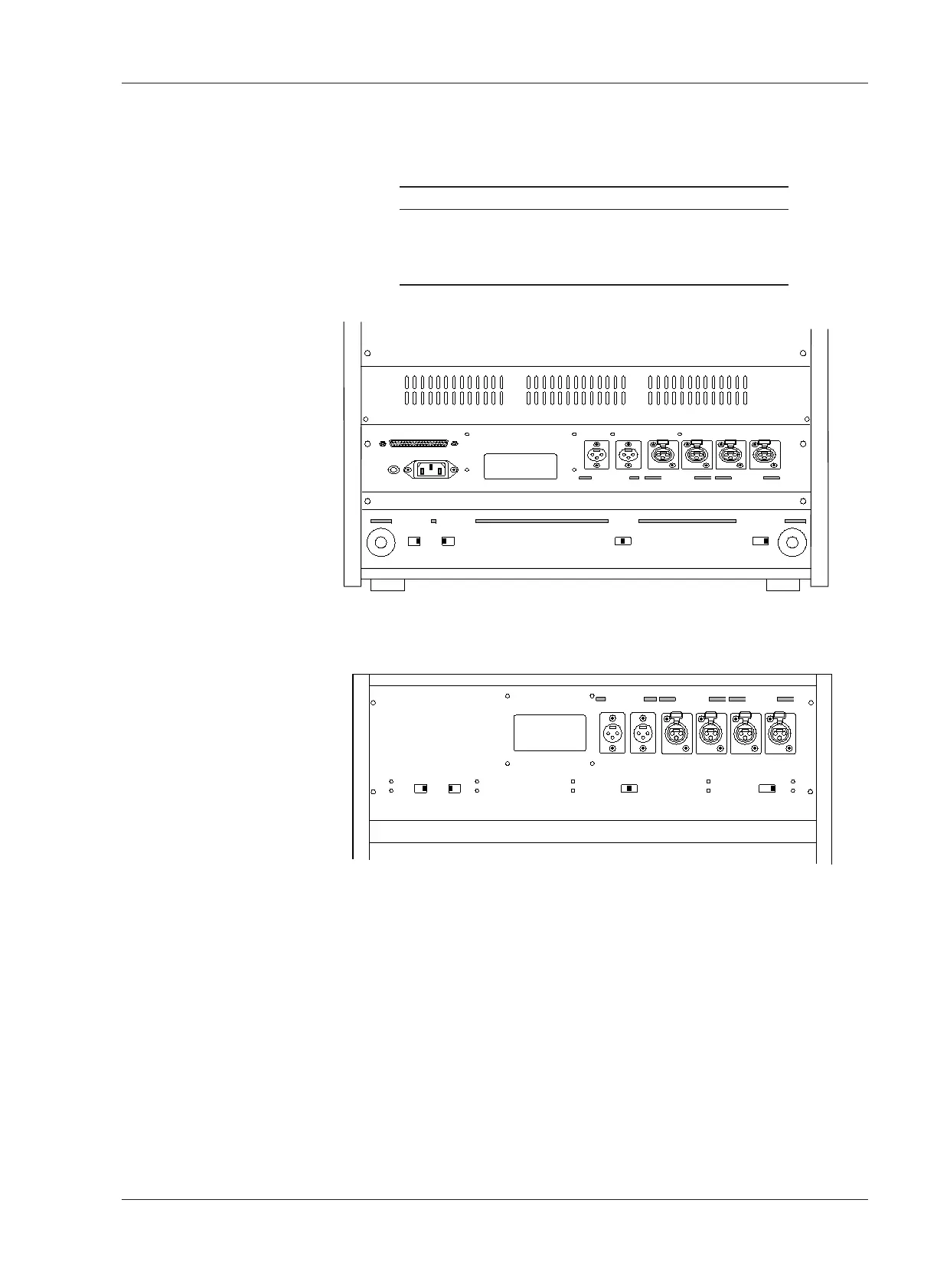

Figure 2-3
Switch Settings on Rear Panel
Table 2-2
Settings on Rear Panel
BIII
MKIV-2
