OutBack Power FLEXmax Series User Manual

Disassembly
12 900-0054-01-00 Rev A
Remo v i n g t h e FET Bar

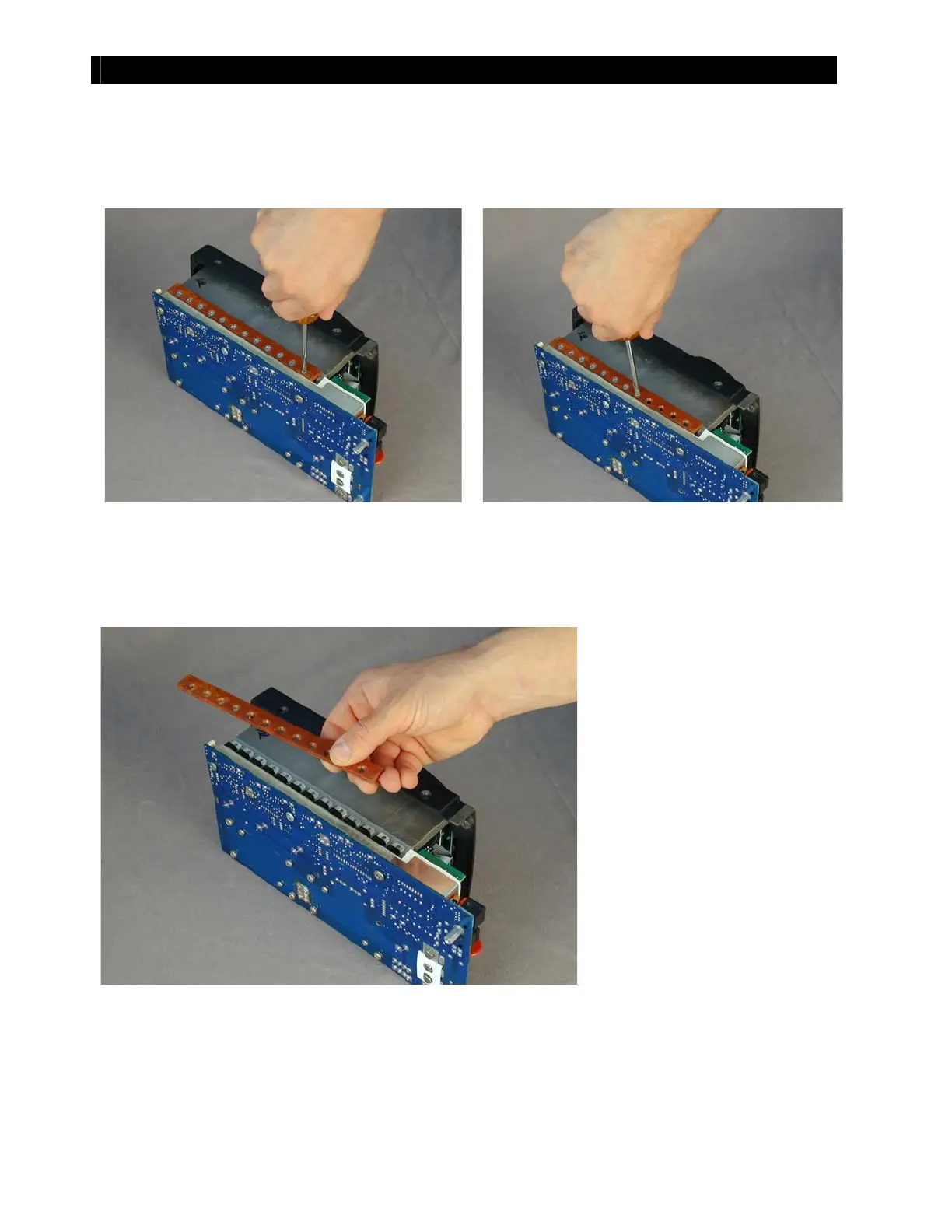

1. Set the unit on its side as shown in Figure 9 and remove the 12 screws securing the FET mounting bar
t o t he heat sink.
Fi g u r e 9 FET Bar Scr ew Remov al
Fi gur e 10 FET Bar Removal
Continued on next page.
2. Remove t he FET mount ing bar.
