OutBack Power FLEXmax Series User Manual

900-0054-01-00 Rev A 27
Reassembl y
Reseating the Control or Power Board

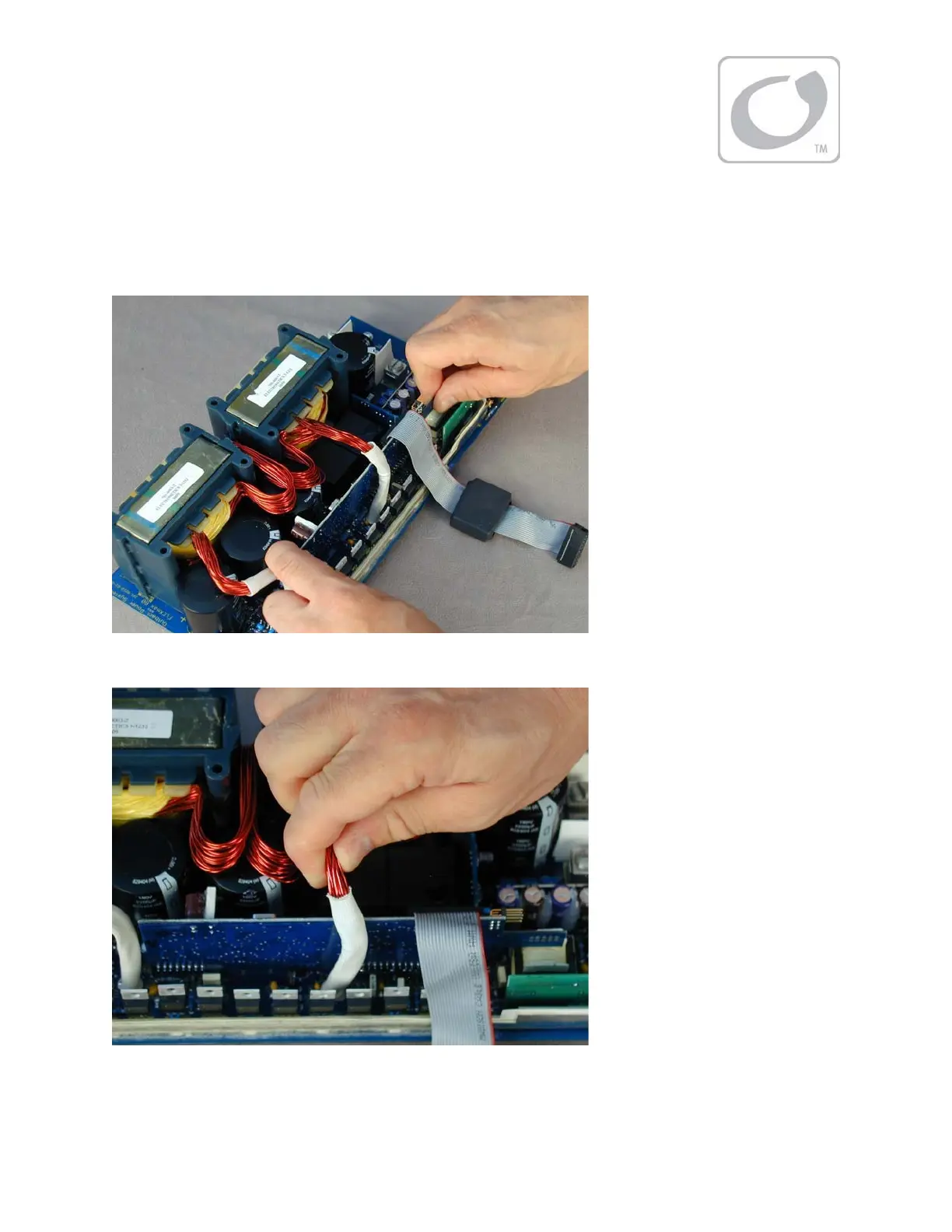

Figure 38 Reseating Control Board
Figure 39 Placing Inductor Wires
1. Push on both ends of the
control board to confirm
it is still properly seated
on the power board.
2. Bend and move the
inductor wires over the
cont rol board. These are
the same inductor wires
which were bent out of
the way in Figure 32.
Make sure the wires do
not strike the fan or
button board when the
heat sink is reinstalled.
