OutBack Power FLEXmax Series User Manual

Disassembly
900-0054-01-00 Rev A 15

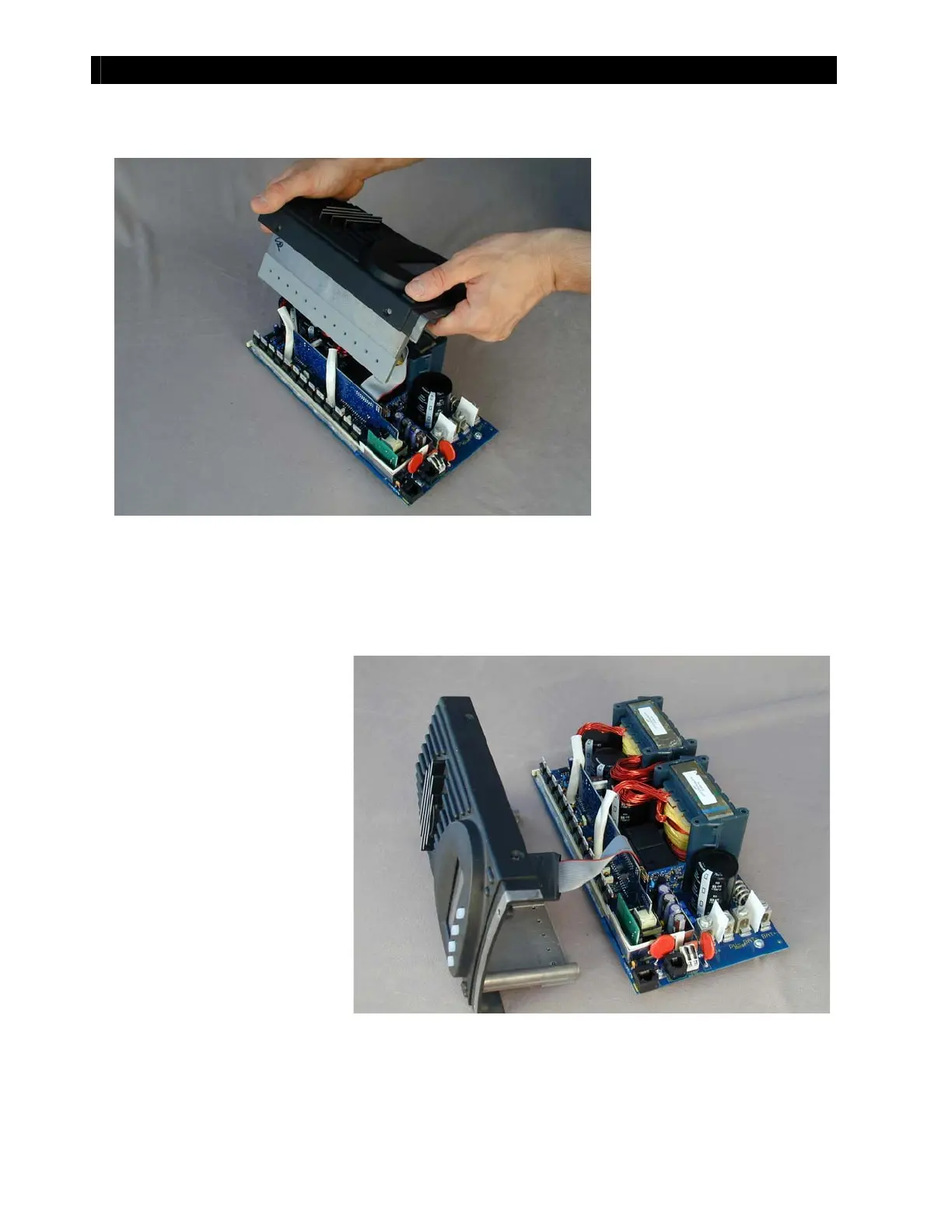

Figure 15 Heat Sink Removal
Fi g u r e 16 Heat Si n k Con n ect ed t o Pow er Boar d
Continued on next page.
3. With all the screws
removed, the heat sink can
be separated from the
power board. Set t he unit
upright and carefully pry
and lift t he heat sink off t he
p
ower board.
CAUTI ON!
Do not force t he
removal. The heat sink is
connected to the power board
by a ribbon cable from t he
control board.
