Panasonic DVCPRO AJ-CA901P - Common Information for AJ-BS900 HP;EN & CA900 HP;EN; Equipment; System Connection

Common information for AJ-BS900HP/EN & CA900HP/EN
ELE-1
1. Equipment
Name Recommend Remark
Camera adapter AJ-CA900HP/EN
Base station AJ-BS900HP/EN
Triaxial cable Cable length needs to be more than 50m (165 ft.)
Audio Analyzer DPA-211A
This Service manual describes about operation of
DPA-211A.
Oscilloscope
Vector Scope
1760 (op. SC) or 1780R (NTSC)
1761 (op. SC) or 1781R (PAL)
Tektronix
D.V.M Digital Volt Meter
Frequency counter
Extension Board
(For AJ-CA900H)
VFK1194
Extension Board
(For AJ-BS900H)
VFK1671 (NEW)

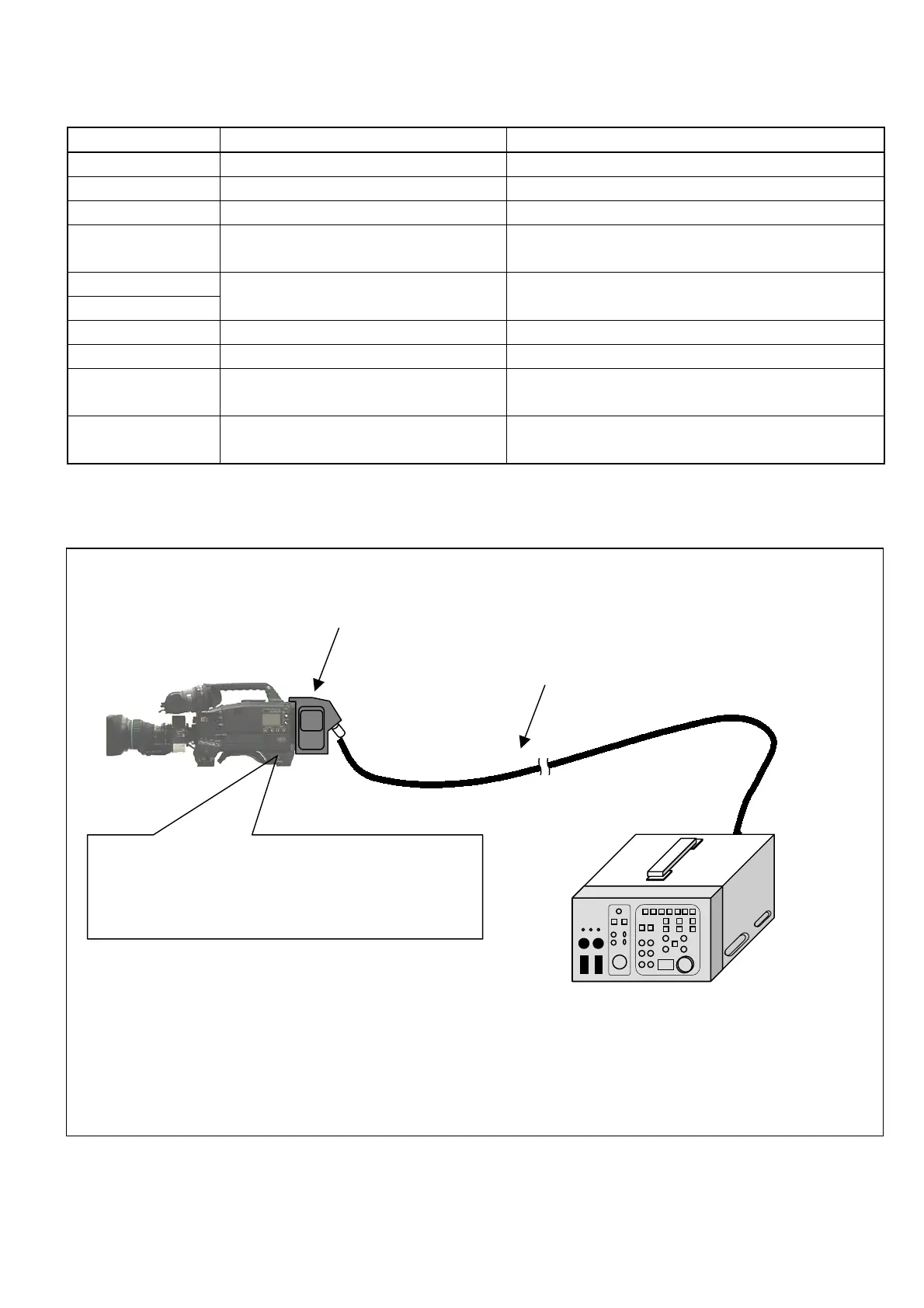

2. System connection
AJ-CA900HP/EN
DVCPRO
camcorder
Triaxial Cable (more than 50m)
AJ-BS900HP/EN
Panasonic
* To use the Digital Triax System, Software version upgrade
of camcorder and AJ-CA900H base plate (included with AJ-
CA900H) mounting are required. See SECTION 2
Installation procedure for Triax.
