2.6.3 DPH2 Card (KX-TDA0162)
Function
2-port
doorphone card for 2 German-type doorphones and 2 door openers. To be mounted on the OPB3 card.

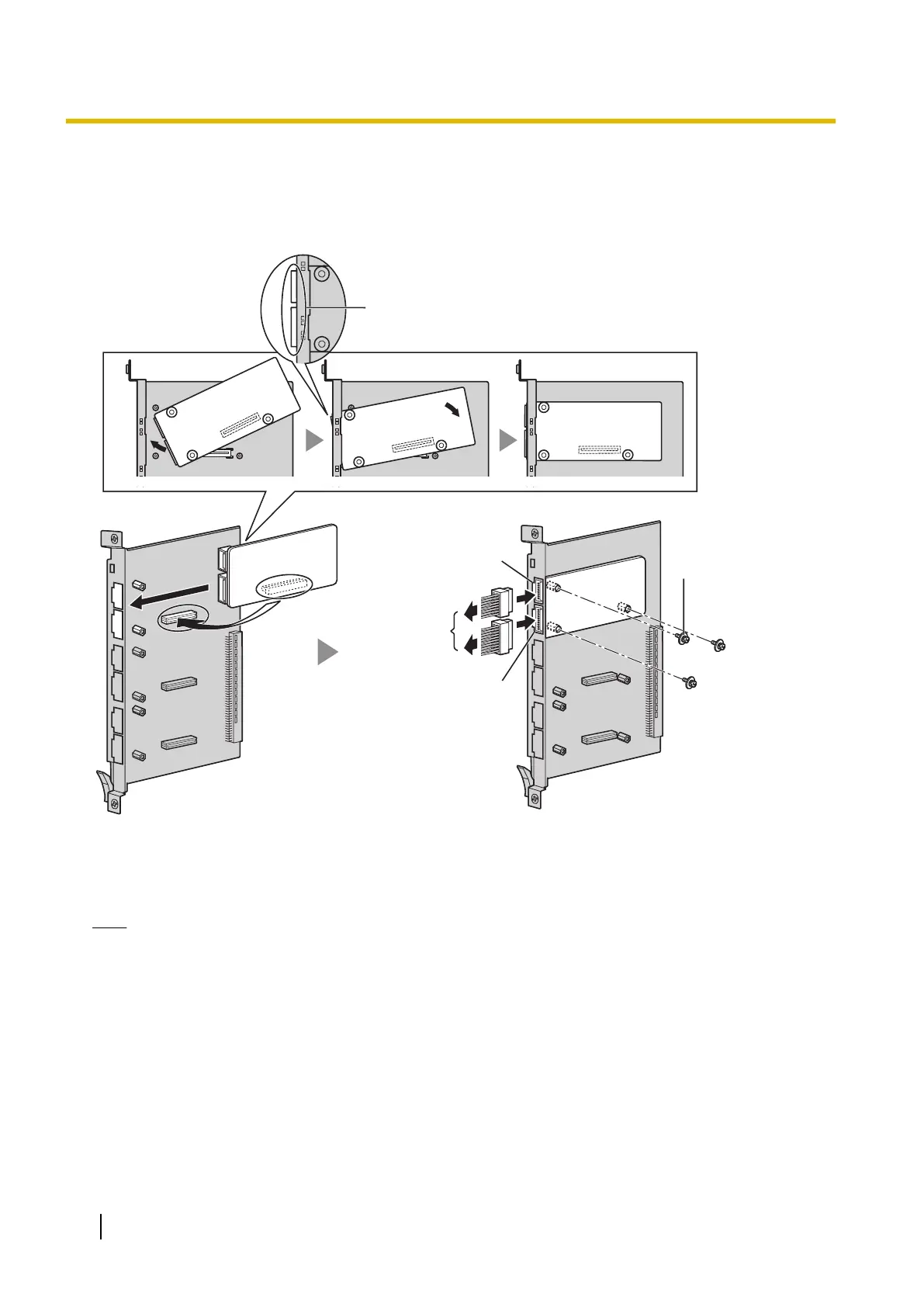

Fully insert the connectors through
the panel openings.
OPB3 Card
DPH2 Card
8-pin
10-pin
Screw
To doorphones/
door openers
Accessories and User-supplied Items
Accessories (included): Screws ´ 3, 10-pin terminal block ´ 1, 8-pin terminal block ´ 1
User-supplied (not included): Copper wire
Note
For
details about connection to doorphones and door openers, refer to "2.8.1 Connection of Doorphones,
Door Openers, External Sensors, and External Relays".
