2.9 Connection of Peripherals

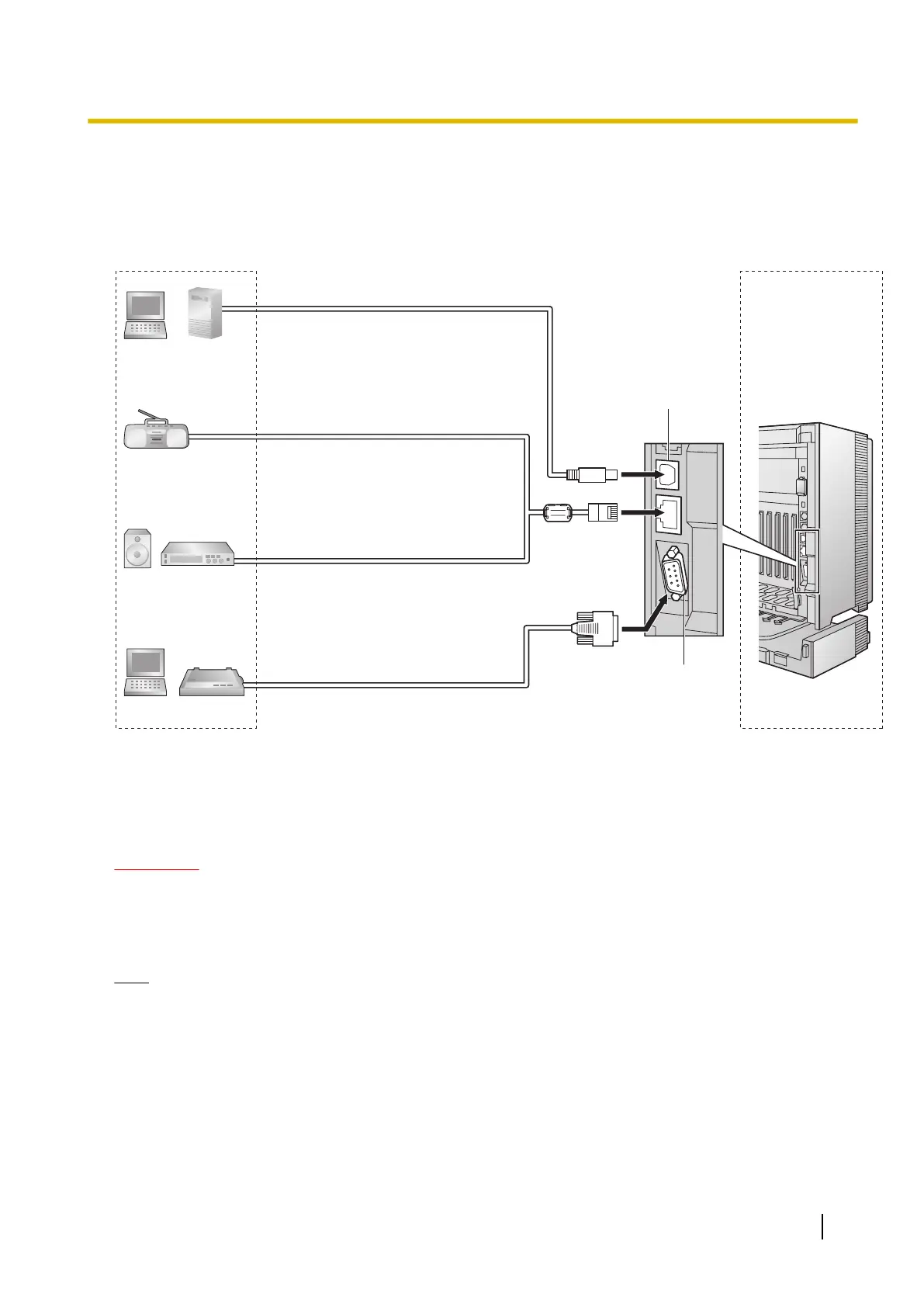

2.9.1 Connection of Peripherals
BGM/
Music on Hold
Pager:
Amplifier/Speaker
PC
Printer
PC
Maximum Distance
10 m
Maximum Distance
10 m
Maximum Distance
5 m
Maximum Distance
2 m
CTI Server
USB
RS-232C
BGM/MOH
The
PBX provides Background Music and Music on Hold. Up to 2 external music sources (e.g., user-supplied
radios) can be connected to the PBX.
CAUTION
• Wiring should be done carefully to prevent undue force being exerted on the plug. Otherwise, sound
may only be heard intermittently.
• External
Music Jacks are SELV ports and should only be connected to approved SELV devices, or in
Australia, via the Line Isolation Unit with the Telecommunications Compliance Label.
Note
When
the PBX and external music sources are not connected to the same earth, hum noise may be induced
into Background Music and Music on Hold.
