Panasonic KX-TDA100D

2.6.4 EIO4 Card (KX-TDA0164)
Function
4-port external input/output card. To be mounted on the
OPB3 card.

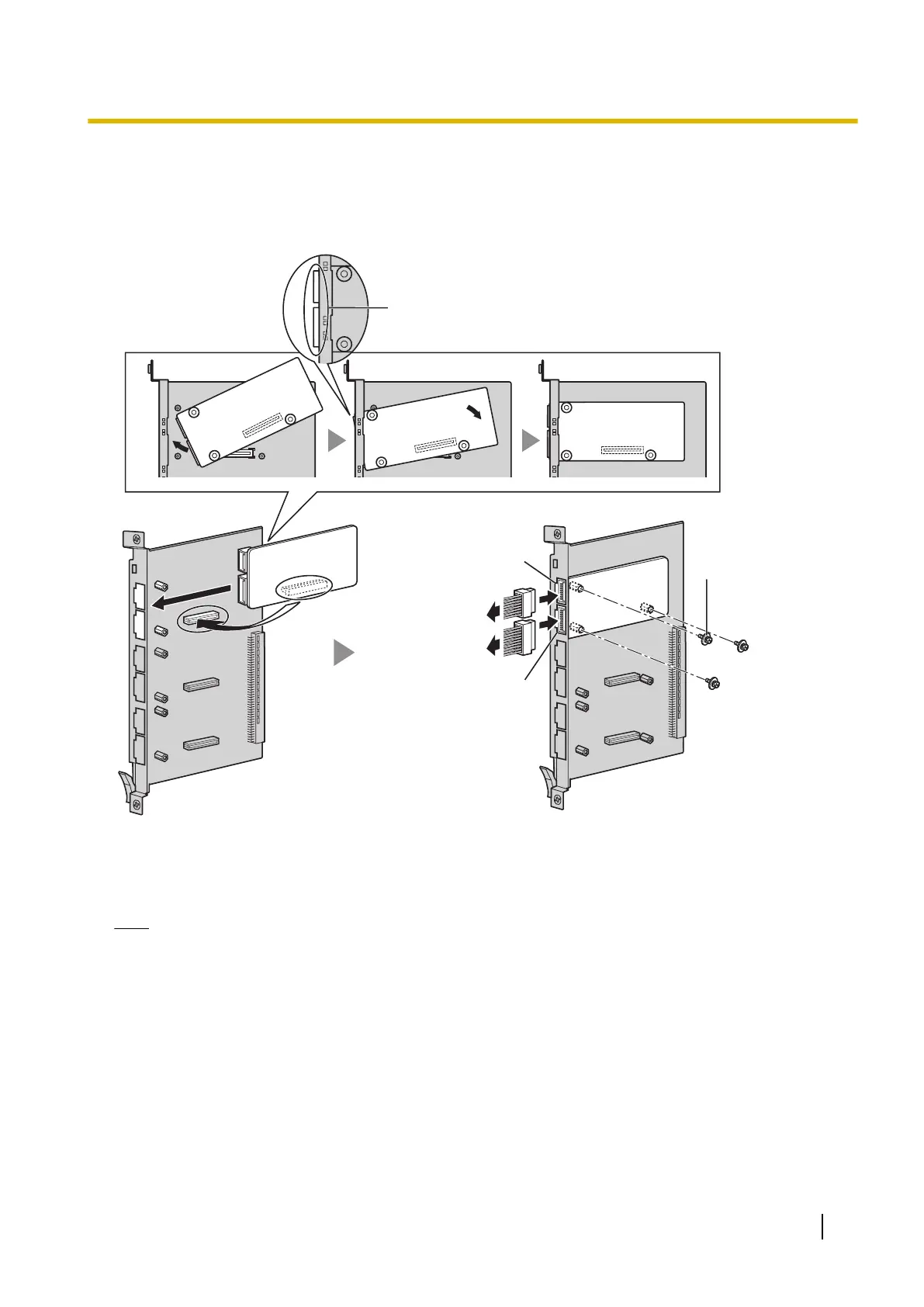

Fully insert the connectors through
the panel openings.
Screw
To external sensors
OPB3 Card
EIO4 Card
To external relays
8-pin
10-pin
Accessories and User-supplied Items
Accessories (included): Screws ´ 3, 10-pin terminal block ´ 1, 8-pin terminal block ´ 1
User-supplied (not included): Copper wire
Note
For details about connection to external sensors and external relays, refer to
"2.8.1 Connection of
Doorphones, Door Openers, External Sensors, and External Relays".
Installation Manual 107
2.6.4 EIO4 Card (KX-TDA0164)
