2.5.4 MCSLC16 Card (KX-TDA1176) and MCSLC24 Card
(KX-TDA1178)
Function
MCSLC16: 16-port extension card for SLTs with Caller ID (FSK), Message Waiting Lamp control, and
2 power failure transfer (PFT) ports. Maximum power output of 90 V for Message Waiting
Lamp control.
MCSLC24: 24-port extension card for SLTs with Caller ID (FSK), Message Waiting Lamp control, and
2 power failure transfer (PFT) ports. Maximum power output of 90 V for Message Waiting
Lamp control.

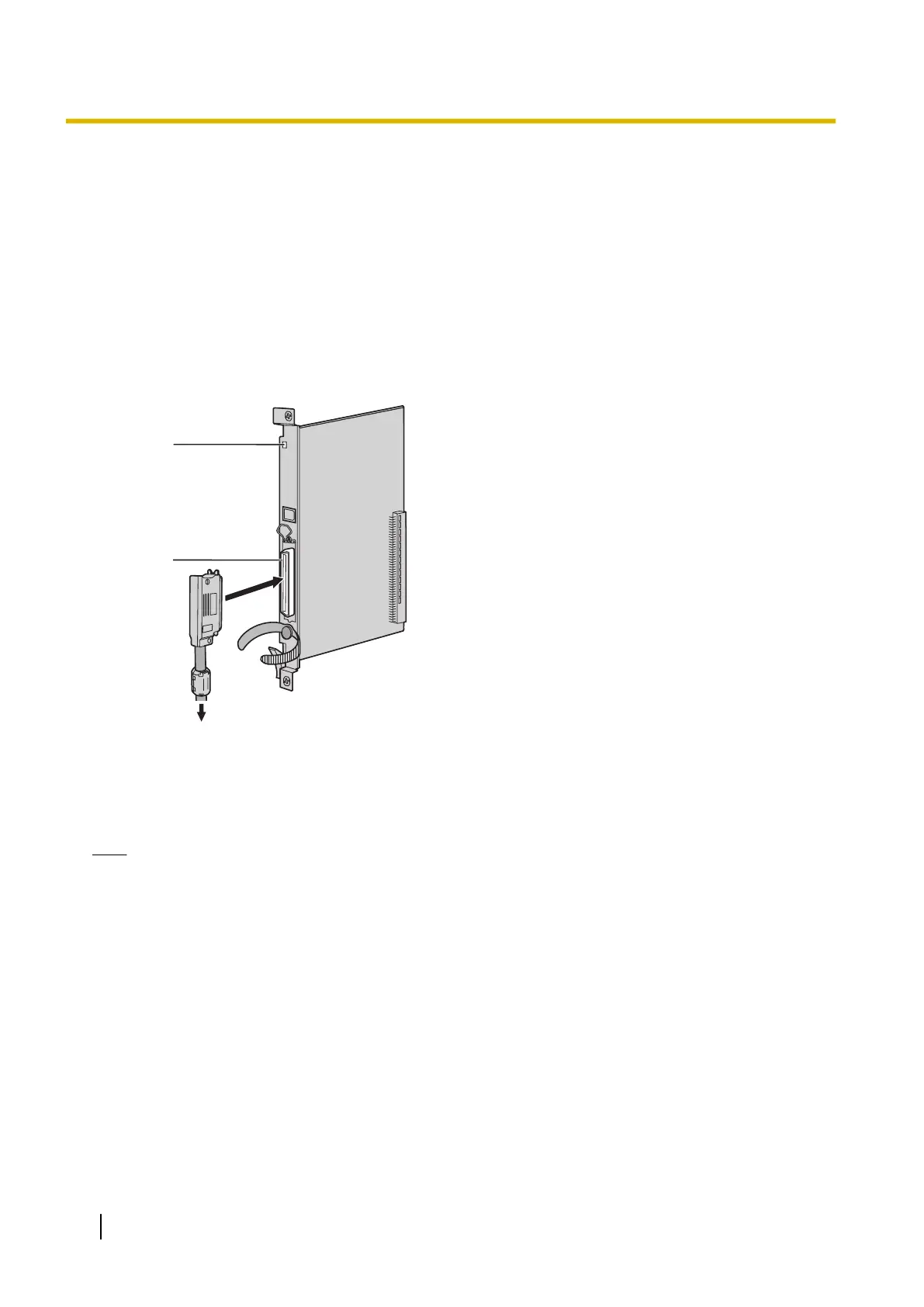

LED
Amphenol
To extensions
Accessories and User-supplied Items
Accessories (included): Screws ´ 2, Ferrite core ´ 1
User-supplied (not included): Amphenol connector
Note
• Attach the included ferrite core to the cable. Refer to "2.2.8 Attaching a Ferrite Core
".
• To connect the Amphenol connector, refer to "2.2.9 Fastening Amphenol Connector".
• For details about power failure transfer, refer to "2.10.1 Power Failure Connections".
