2.4 Information about the Trunk Cards
2.4.1 LCOT4 Card (KX-TDA0183), LCOT8 Card (KX-TDA0180
),
LCOT16 Card (KX-TDA0181), and CLCOT8 Card (KX-TDA1180)
Function
LCOT4: 4-port analogue trunk card with 2 power failure transfer (PFT) ports.
LCOT8: 8-port analogue trunk card with 2 power failure transfer (PFT) ports. One CID8 or CID/
PAY8 card can be mounted on the LCOT8
card (refer to "2.4.3 CID/PAY8 Card
(KX-TDA0189)" and "2.4.4 CID8 Card (KX-TDA0193)").
LCOT16: 16-port analogue trunk card with 4 power failure transfer (PFT) ports. A maximum of 2
CID8 cards, 2 CID/PAY8 cards, or one of each can be mounted on the
LCOT16 card
(refer to "2.4.3 CID/PAY8 Card (KX-TDA0189)" and "2.4.4 CID8 Card (KX-TDA0193)").
CLCOT8: 8-port
analogue trunk card with Caller ID, and 2 power failure transfer (PFT) ports. Caller
ID signal type FSK/FSK (with Call Waiting Caller ID [Visual Caller ID])/DTMF compatible.
One CLCOT8E card can be mounted on the CLCOT8 card (refer to "2.4.5 CLCOT8E
Card (KX-TDA1186)").

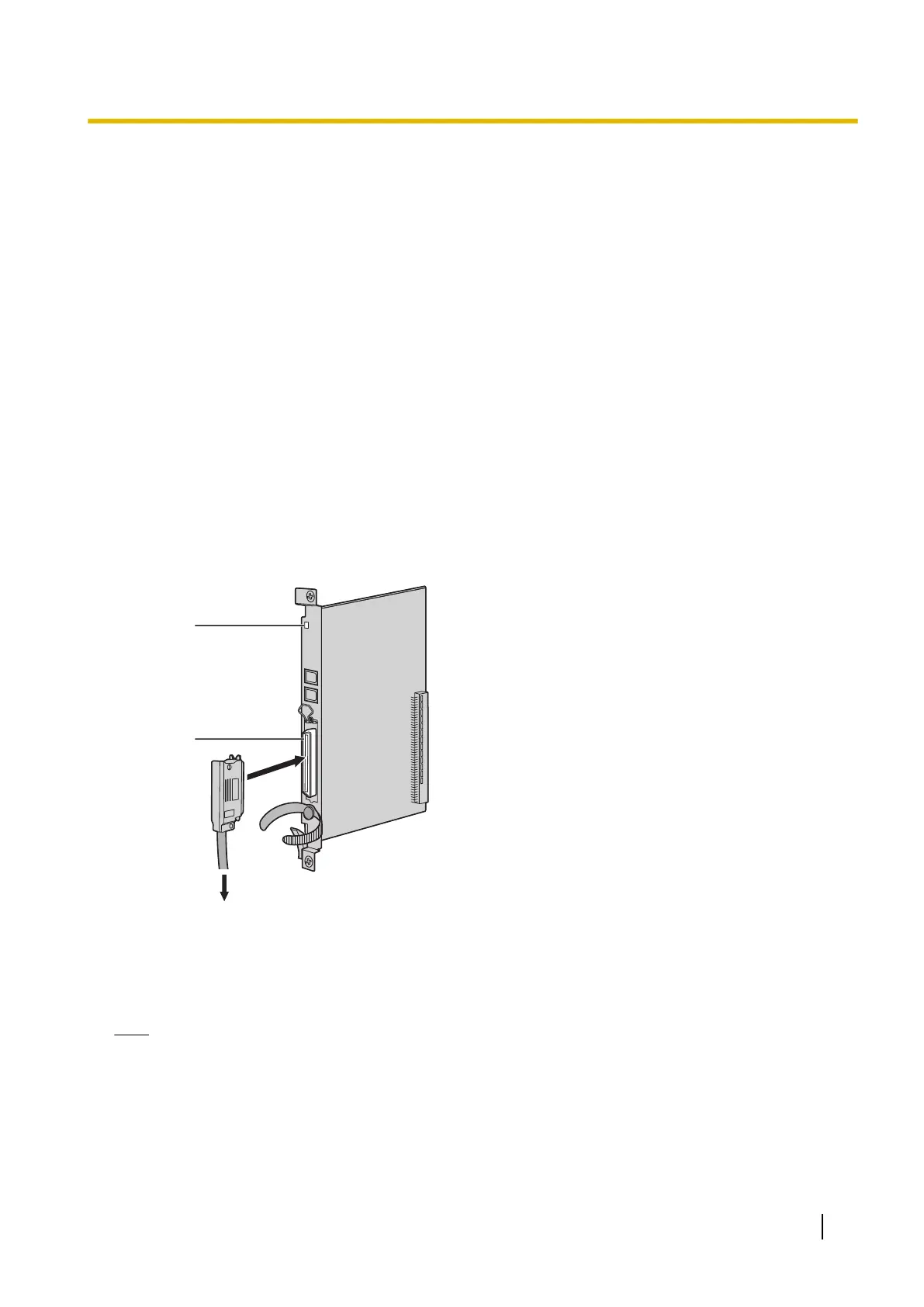

Amphenol
To trunk
LED
Accessories and User-supplied Items
Accessories (included): Screws ´ 2
User-supplied (not included): Amphenol connector
Note
• To connect the Amphenol connector, refer to "2.2.9 Fastening Amphenol Connector
".
• For details about power failure transfer, refer to "2.10.1 Power Failure Connections".
• To confirm the trunk connection, refer to "Confirming the Trunk Connection" in "2.11.1 Starting the
PBX".
