Panasonic KX-TDA100D

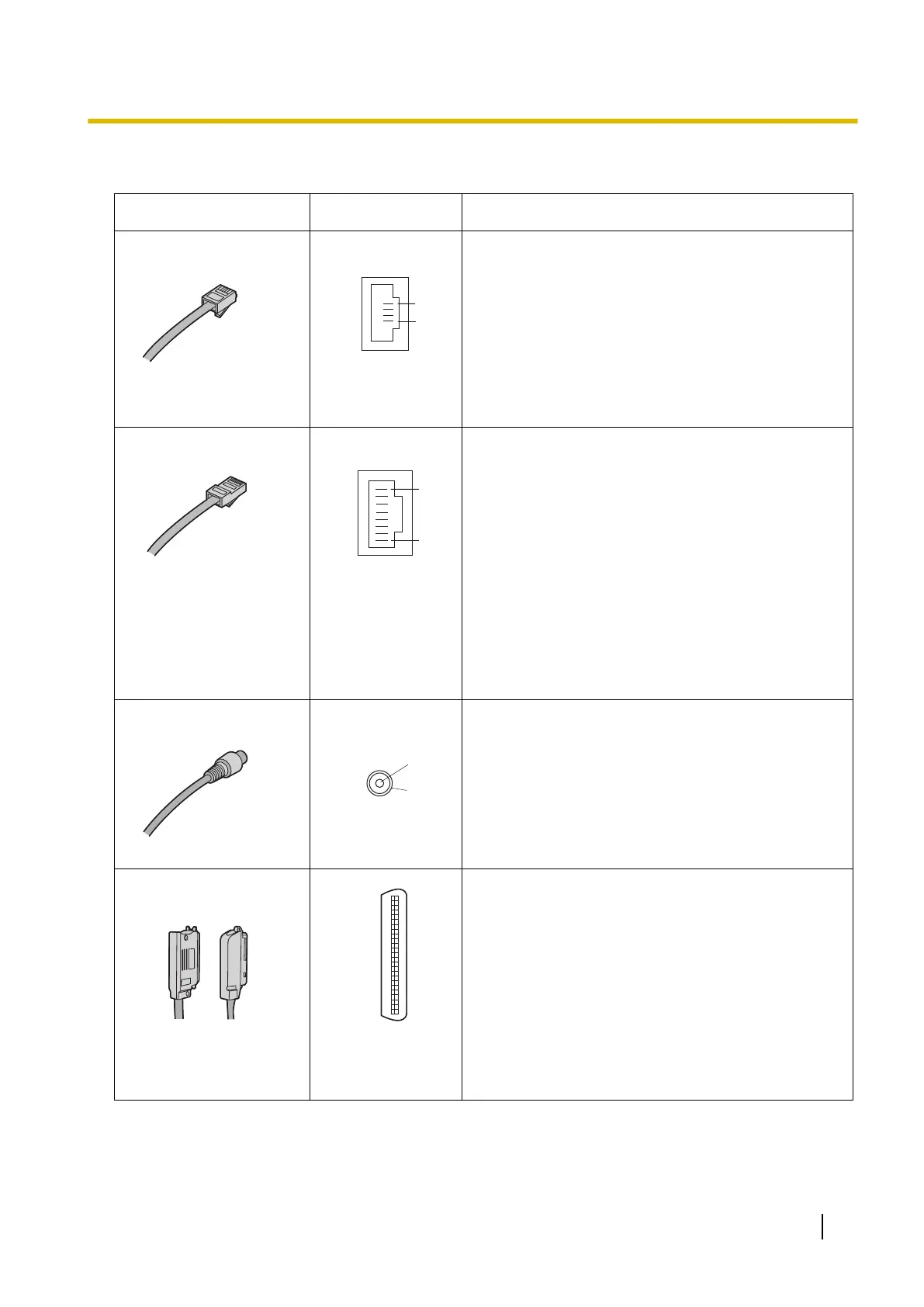

2.2.7 Types of Connectors
Connector Type Pin Number Used for
RJ11
(Twisted pair cable)
1
4
• MCSLC16 (KX-TDA1176
)
• MCSLC24 (KX-TDA1178)
• CLCOT8 (KX-TDA1180)
• CLCOT8E (KX-TDA1186)
• LCOT8 (KX-TDA0180)
• LCOT16 (KX-TDA0181)
• LCOT4 (KX-TDA0183)
• DMPR
RJ45
(Twisted pair cable)
8
1
• CSIF4 (KX-TDA0143)
• CSIF8 (KX-TDA0144)
• T1 (KX-TDA0187)
• E1 (KX-TDA0188)
• BRI4 (KX-TDA0284)
• BRI8 (KX-TDA0288)
• PRI30 (KX-TDA0290CE/CJ)
• PRI23 (KX-TDA0290)
• CTI-LINK (KX-TDA0410)
• IP-EXT16 (KX-TDA0470)
• IP-GW4E (KX-TDA0484)
• IP-GW16 (KX-TDA0490)
• DMPR
BNC
1
2
• E1 (KX-TDA0188)
• PRI30 (KX-TDA0290CE/CJ)
Amphenol
Type A Type B
(Shielded twisted pair
cable)
50 25
26 1
• DLC8 (KX-TDA0171
)
• DLC16 (KX-TDA0172)
• MCSLC16 (KX-TDA1176)
• MCSLC24 (KX-TDA1178)
• CLCOT8 (KX-TDA1180)
• CLCOT8E (KX-TDA1186)
• LCOT8 (KX-TDA0180)
• LCOT16 (KX-TDA0181)
• DID8 (KX-TDA0182)
• LCOT4 (KX-TDA0183)
• E&M8 (KX-TDA0184)
Installation Manual 45
2.2.7 Types of Connectors
