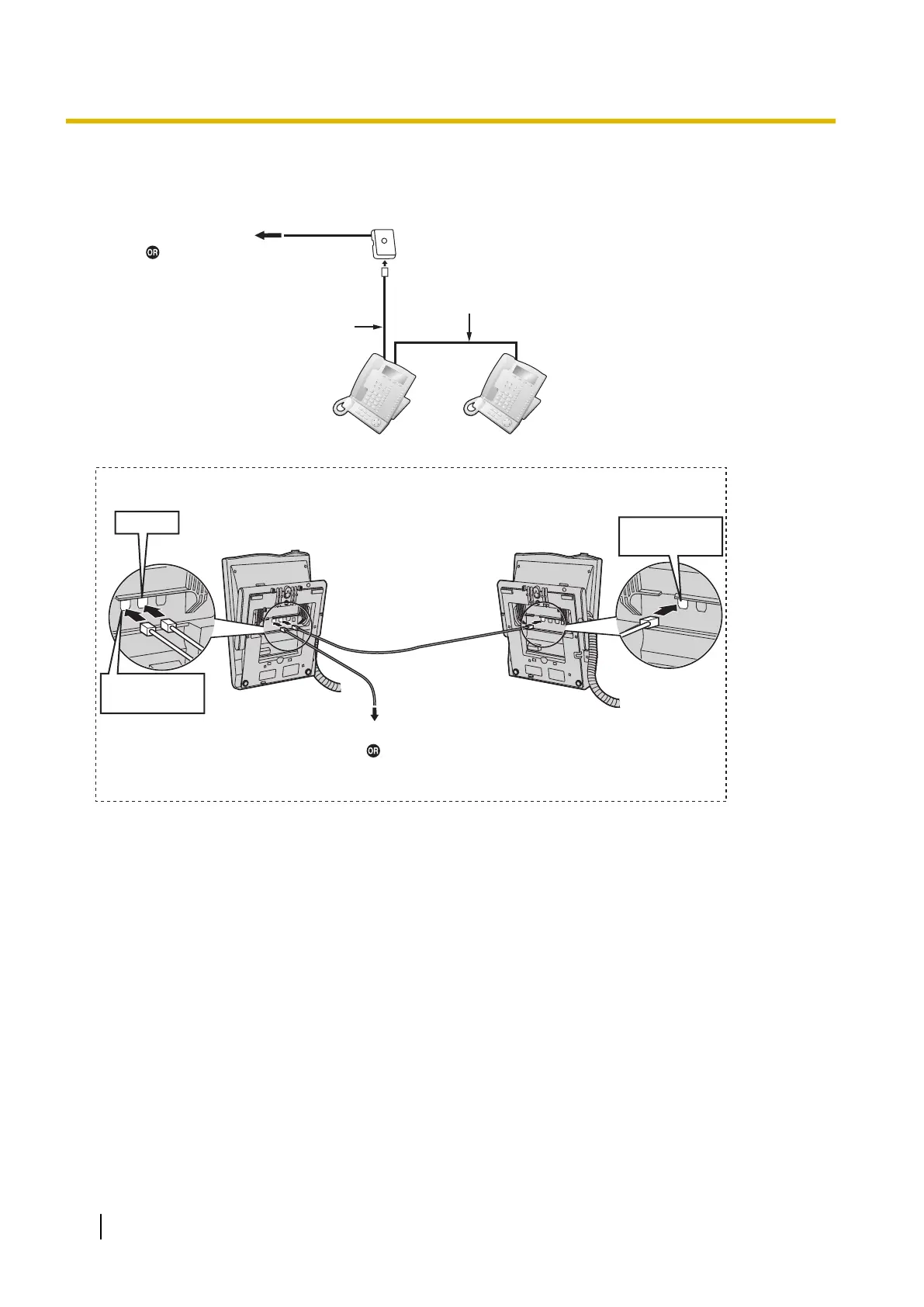

Panasonic KX-TDA100D

With KX-T7600 Series DPT
Using an EXtra Device Port
Master DPT Slave DPT
4-conductor wiring cord
Connect pins "T", "R",
"D1" and "D2".
4-conductor wiring cord
Connect pins "T", "R",
"D1" and "D2".
To DLC8/DLC16 card
To DLC4 port on the
DMPR card
Slave DPTMaster DPT
TO MAIN UNIT
/ PABX
TO TEL
TO MAIN UNIT
/ PABX
Cable Maximum Distance
ø 0.4 mm: 30 m
ø 0.5 mm: 50 m
ø 0.6 mm: 60 m
CAT 5: 50 m
Back View of DPTs
To DLC8/DLC16 card
To DLC4 port on the DMPR card
118 Installation Manual
2.7.2 Digital EXtra Device Port (Digital XDP) Connection
